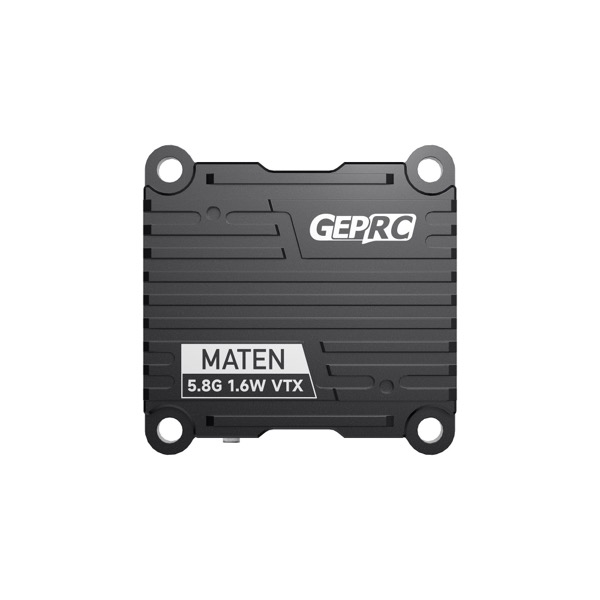

GEPRC MATEN 5.8G 1.6W VTX
Of the 81 other 5.8 GHz analog video transmitters in our database, 54 have a lower maximum power than the MATEN 5.8G 1.6W VTX (1600 mW, 32 dBm), 5 the same and 22 a higher one; the class median is 800 mW. The MATEN 5.8G 1.6W VTX steps through 25 / 200 / 600 / 1600 mW, which is 14 / 23 / 28 / 32 dBm: the top level is 18 dB above the lowest, about 8.0x the free-space range on the same antennas.
GEPRC's own Betaflight VTX table is on this page: 8 bands of 8 channels, 5325–5945 MHz, 4 power levels, IRC Tramp. CLI commands and JSON file.
| System | analog |
|---|---|
| Max power | 1600 mW |
| Power levels | 25 / 200 / 600 / 1600 mW |
| Frequency range | 5325-5945 MHz |
| Band | 5.8 GHz |
| Input voltage | 7-36V (2-8S) |
| Mounting | 30.5x30.5mm M3 |
| Channels | 72 |
| Antenna connector | MMCX |
| Weight | 17.5 g |
| Price (approx.) | 47.99 USD |
GEPRC MATEN 5.8G 1.6W VTX VTX table for Betaflight
The band and channel frequencies and power levels as GEPRC publishes them for IRC Tramp control. Paste the CLI commands into Betaflight's CLI tab, or load the JSON file in Betaflight Configurator's Video Transmitter tab. How it works: setting up a VTX table in Betaflight.
| Band | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
|---|---|---|---|---|---|---|---|---|
| A BOSCAM_A | 5865 | 5845 | 5825 | 5805 | 5785 | 5765 | 5745 | 5725 |
| B BOSCAM_B | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 |
| E BOSCAM_E | 5705 | 5685 | 5665 | 5645 | 5885 | 5905 | 5925 | 5945 |
| F FATSHARK | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
| R RACEBAND | 5658 | 5695 | 5732 | 5769 | 5806 | 5843 | 5880 | 5917 |
| L BAND_L | 5362 | 5399 | 5436 | 5473 | 5510 | 5547 | 5584 | 5621 |
| U BAND_U | 5325 | 5348 | 5366 | 5384 | 5402 | 5420 | 5436 | 5456 |
| O BAND_O | 5474 | 5492 | 5510 | 5528 | 5546 | 5564 | 5582 | 5600 |
Frequencies in MHz; "—" is an unused slot. Power levels: 25 (value 25), 200 (value 200), 600 (value 600), 1W6 (value 1600).
vtxtable bands 8
vtxtable channels 8
vtxtable band 1 BOSCAM_A A CUSTOM 5865 5845 5825 5805 5785 5765 5745 5725
vtxtable band 2 BOSCAM_B B CUSTOM 5733 5752 5771 5790 5809 5828 5847 5866
vtxtable band 3 BOSCAM_E E CUSTOM 5705 5685 5665 5645 5885 5905 5925 5945
vtxtable band 4 FATSHARK F CUSTOM 5740 5760 5780 5800 5820 5840 5860 5880
vtxtable band 5 RACEBAND R CUSTOM 5658 5695 5732 5769 5806 5843 5880 5917
vtxtable band 6 BAND_L L CUSTOM 5362 5399 5436 5473 5510 5547 5584 5621
vtxtable band 7 BAND_U U CUSTOM 5325 5348 5366 5384 5402 5420 5436 5456
vtxtable band 8 BAND_O O CUSTOM 5474 5492 5510 5528 5546 5564 5582 5600
vtxtable powerlevels 4
vtxtable powervalues 25 200 600 1600
vtxtable powerlabels 25 200 600 1W6
saveSource: https://geprc.com/wp-content/uploads/2025/07/MATEN-5.8G-1.6W-VTX-IRC-Tramp.txt — GEPRC's own CLI dump. It has the shape of the 2.5W model's file and the same blocker: eight bands declared, nine lines printed, band 8 twice, and the file's own note between them says to delete band O and paste the second line to run band H - so the eight stored here are the ones it loads and H (5653-5933) is published commented out in O's place. Nine bands x 8 is the 72CH the product page states. The grid is cell for cell the one the 2.5W model's dump prints, and that model's V1.0 manual confirms it twice over; GEPRC publishes no manual for the 1.6W, so this file is its single source. The power column is this model's own: four values, 25/200/600/1600 mW, the product page's output-power line without the 2500 step. Pit mode is a button mode, not a level.
Transmitting is only legal on the frequencies and power your country allows; see VTX frequency bands.
Every manufacturer table in the database, with one archive of all the files: VTX table library.
Choosing between systems? See analog vs DJI vs Walksnail vs HDZero.
Where this data comes from
Read 2026-09-24 off GEPRC's own site, the thirteenth VTX manufacturer catalogue read beside the US retail scrape and the second brand this catalogue carried no transmitter of at all. geprc.com is WooCommerce: /wp-json/wp/v2/product lists the whole catalogue and product_cat=211 ('Electronics', 114 SKUs) holds the transmitters, but the REST API's content field is only the description gallery - the labelled Specifications block is in the product page HTML, so every figure here was read off the page itself. Block lines: 'Output power：25mW/200mW/600mW/1600mW/Pit mode', 'Frequency：5.8G', 'Channel：72CH', 'Input voltage：DC7-36V（2-8S Battery）', 'Mounting hole：30.5×30.5mm(M3)', 'Antenna interface：MMCX', 'Weight：17.5g', 'Dimension：36.4×36.4×7.9mm'. frequency_range holds the brand's class label because '5.8G' is the whole of what this page states - no channel table and no span. Also stated: built-in microphone, PAL/NTSC, IRC Tramp, SH1.0 6pin cable, 5V@600mA output. Read again 2026-10-07 against GEPRC's CLI dump for this model (uploads/2025/07/MATEN-5.8G-1.6W-VTX-IRC-Tramp.txt, byte-identical to the 2024/03 copy), for the VTX table. GEPRC publishes no manual for the 1.6W - the media library has only the two copies of this dump - so the file is the single source for its table. Its grid is the 2.5W model's cell for cell, which is what the shared board means in practice and which that model's V1.0 manual confirms twice over; the power column is this model's own, four values (25/200/600/1600) against the 2.5W's five, matching the output-power line already recorded here. The file declares eight bands and prints nine, band 8 twice, and resolves it itself: 'delete the O band above' to run band H. Nine bands x 8 is the 72CH the product page states. frequency_range is the edges of GEPRC's own nine-band CLI dump (72CH), U1 5325 .. E8 5945 MHz; the commented-out H band (5653-5933) lies inside them.
