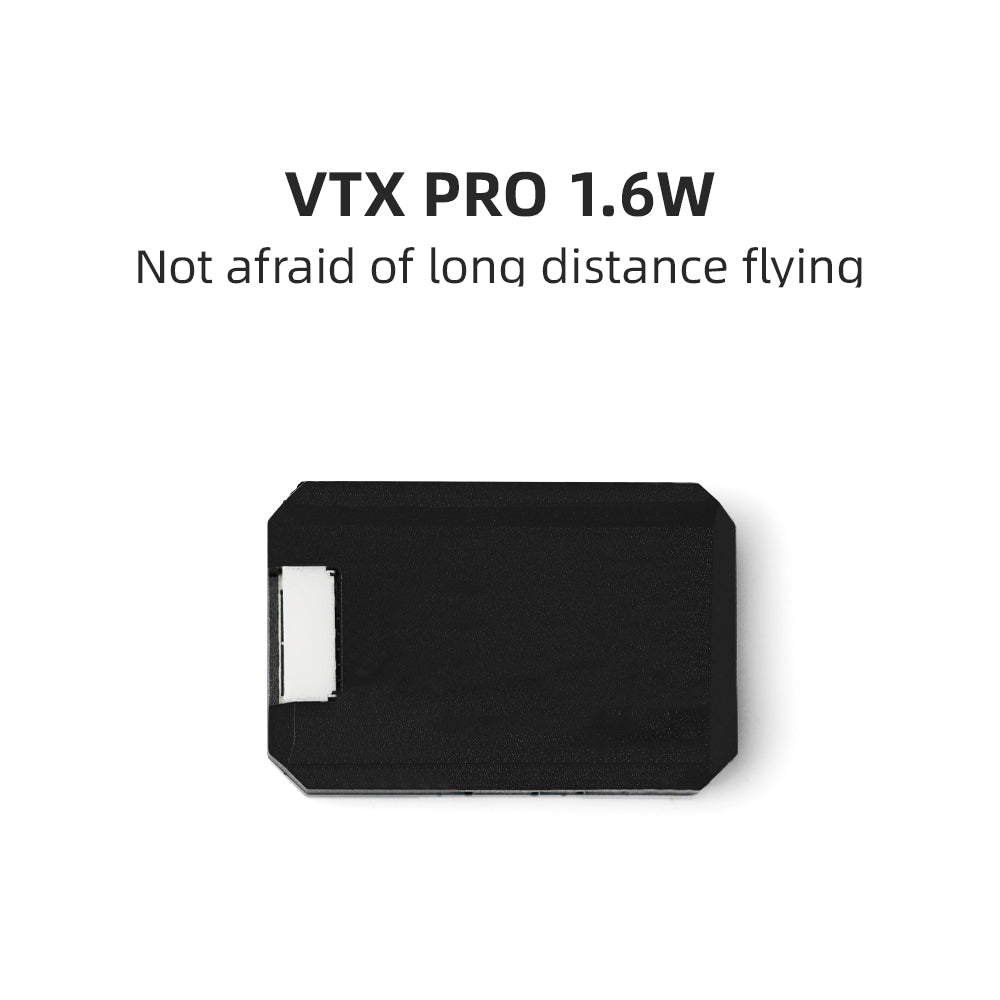

HGLRC 5.8G VTX PRO 1.6W
Of the 81 other 5.8 GHz analog video transmitters in our database, 54 have a lower maximum power than the 5.8G VTX PRO 1.6W (1600 mW, 32 dBm), 5 the same and 22 a higher one; the class median is 800 mW. The 5.8G VTX PRO 1.6W steps through 25 / 400 / 800 / 1600 mW, which is 14 / 26 / 29 / 32 dBm: the top level is 18 dB above the lowest, about 8.0x the free-space range on the same antennas.
| System | analog |
|---|---|
| Max power | 1600 mW |
| Power levels | 25 / 400 / 800 / 1600 mW |
| Frequency range | 5.8 GHz |
| Mounting | 20x20mm M2 |
| Channels | 40 |
| Antenna connector | MMCX |
| Weight | 13.0 g |
Choosing between systems? See analog vs DJI vs Walksnail vs HDZero.
Where this data comes from
HGLRC's own labelled block: 'Model: 5.8G VTX PRO 1.6W, Built-in Microphone, Antenna interface: MMCX, Output power: PIT/25/400/800/1.6W, Standard 40 Frequency Point: A/B/E/F/R frequency group, VTX protocol: TBS SmartAudio, Installing Hole: 20X20.M2, Size: 25mm x 37mm x 6.5mm, Weight: 13g', with the per-step dBm list beside it (25mW/13.95dBm, 400mW/26.02dBm, 800mW/29.03dBm, 1.6W/32.04dBm) - conducted milliwatts with a dBm equivalent per step, not an EIRP. power_levels_mw drops the PIT step, which has no figure. input_voltage is deliberately EMPTY: the product page's block says 'Input voltage: DC 6-26V' and the brand's own Specification graphic on the same page says 'Support voltage: 7-36V', two manufacturer figures for one field, so neither is published (the rule the iFlight BLITZ Whoop 1.6W's mount set). Both sources agree on the 5V/500mA BEC the other line of that pair states. Re-read 2026-10-20 (burst 211): the description image (1000x6851) prints no channel table, so frequency_range keeps the 5.8 GHz label. input_voltage stays empty on purpose: the page text says 'Input voltage: DC 6-26V' and the image's Specification block 'Support voltage: 7-36V' - two maker figures, neither corroborated, a tie.
