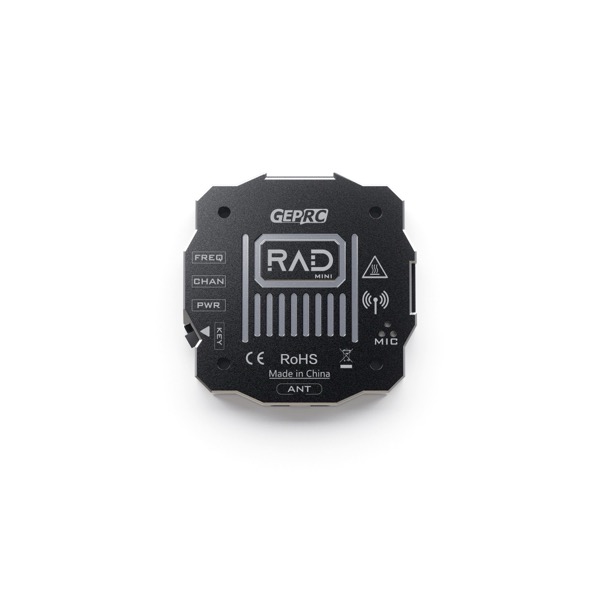

GEPRC RAD MINI 5.8G 1W VTX
Of the 81 other 5.8 GHz analog video transmitters in our database, 44 have a lower maximum power than the RAD MINI 5.8G 1W VTX (1000 mW, 30 dBm), 6 the same and 31 a higher one; the class median is 800 mW. The RAD MINI 5.8G 1W VTX steps through 25 / 200 / 500 / 1000 mW, which is 14 / 23 / 27 / 30 dBm: the top level is 16 dB above the lowest, about 6.3x the free-space range on the same antennas.
GEPRC's own Betaflight VTX table is on this page: 6 bands of 8 channels, 5362–5917 MHz, 4 power levels, IRC Tramp. CLI commands and JSON file.
| System | analog |
|---|---|
| Max power | 1000 mW |
| Power levels | 25 / 200 / 500 / 1000 mW |
| Frequency range | 5.362-5.945 GHz |
| Band | 5.8 GHz |
| Mounting | 20x20mm |
| Channels | 48 |
| Price (approx.) | 46.99 USD |
GEPRC RAD MINI 5.8G 1W VTX VTX table for Betaflight
The band and channel frequencies and power levels as GEPRC publishes them for IRC Tramp control. Paste the CLI commands into Betaflight's CLI tab, or load the JSON file in Betaflight Configurator's Video Transmitter tab. How it works: setting up a VTX table in Betaflight.
| Band | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
|---|---|---|---|---|---|---|---|---|
| A BOSCAM_A | 5865 | 5845 | 5825 | 5805 | 5785 | 5765 | 5745 | 5725 |
| B BOSCAM_B | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 |
| E BOSCAM_E | 5705 | 5685 | 5665 | 5665 | 5885 | 5905 | 5905 | 5905 |
| F FATSHARK | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
| R RACEBAND | 5658 | 5695 | 5732 | 5769 | 5806 | 5843 | 5880 | 5917 |
| L LOWRACE | 5362 | 5399 | 5436 | 5473 | 5510 | 5547 | 5584 | 5621 |
Frequencies in MHz; "—" is an unused slot. Power levels: 25 (value 25), 200 (value 200), 500 (value 500), MAX (value 1000).
vtxtable bands 6
vtxtable channels 8
vtxtable band 1 BOSCAM_A A CUSTOM 5865 5845 5825 5805 5785 5765 5745 5725
vtxtable band 2 BOSCAM_B B CUSTOM 5733 5752 5771 5790 5809 5828 5847 5866
vtxtable band 3 BOSCAM_E E CUSTOM 5705 5685 5665 5665 5885 5905 5905 5905
vtxtable band 4 FATSHARK F CUSTOM 5740 5760 5780 5800 5820 5840 5860 5880
vtxtable band 5 RACEBAND R CUSTOM 5658 5695 5732 5769 5806 5843 5880 5917
vtxtable band 6 LOWRACE L CUSTOM 5362 5399 5436 5473 5510 5547 5584 5621
vtxtable powerlevels 4
vtxtable powervalues 25 200 500 1000
vtxtable powerlabels 25 200 500 MAX
saveSource: https://geprc.com/wp-content/uploads/2022/06/VTX-RADMini.txt — GEPRC's own CLI dump, the file the RAD MINI manual's QR code and link (geprc.com/vtx-radmini) resolve to. The file writes the band names FATSHARK_F and RACEBAND_R, which are ten characters; Betaflight keeps eight, so they are stored here as Betaflight writes them. The manual's printed Frequency table (page 4, read at 7x) disagrees with this dump in four slots - A4 5806 against 5805, and E4/E7/E8 5645/5925/5945 against 5665/5905/5905 - and the dump is the file GEPRC tells you to paste. The repeated E-band values are the same on GEPRC's RAD Tiny and RAD VTX 5.8G 2.5W dumps, so they are this brand's table and not a slip in one file. The page's 5.362-5.945 GHz span is the manual's table; this dump's highest frequency is 5917 MHz.
Transmitting is only legal on the frequencies and power your country allows; see VTX frequency bands.
Every manufacturer table in the database, with one archive of all the files: VTX table library.
Choosing between systems? See analog vs DJI vs Walksnail vs HDZero.
Where this data comes from
Read 2026-09-24 off GEPRC's own site, the thirteenth VTX manufacturer catalogue read beside the US retail scrape and the second brand this catalogue carried no transmitter of at all. geprc.com is WooCommerce: /wp-json/wp/v2/product lists the whole catalogue and product_cat=211 ('Electronics', 114 SKUs) holds the transmitters, but the REST API's content field is only the description gallery - the labelled Specifications block is in the product page HTML, so every figure here was read off the page itself. The one transmitter on this brand's site whose product page is images only - the description is thirteen JPEGs and no spec text at all - so it was read off the brand's own RAD MINI 5.8G 1W VTX User Manual (linked from geprc.com/electronics/vtx-manual/), whose page 1 SPECS block gives: 'Installing Hole: 20x20mm φ3mm', 'Output power: Pit/25/200/500/1000mw switchable', 'Channels: 48CH', 'Input Voltage: 7-36V', 'Current: MAX 9V@650mA', 'Antenna: MMCX', 'Frequency: 5.8 GHZ', 'Video Format: PAL/NTSC', 'Control protocol: IRC Tramp', 'Weight: 4.8g (Shell not included)'. The manual is image-only and pypdf extracts nothing; it was rendered through Quartz (CoreGraphics) at 7x, which is the Happymodel qlmanage trick on a machine with no Ghostscript. frequency_range is the manual's own 48-channel table read at full resolution - six bands A/B/E/F/R/L whose edges are 5362 MHz (L CH1) and 5945 MHz (E CH8) - rather than its '5.8 GHZ' row, because the L band runs a long way below the label. **input_voltage is deliberately empty**: the SPECS block says 7-36V and the brand's own photograph of the bare board is silkscreened '7-28V' beside the power pad (read at full resolution, with 'RX / VTX / CAM / GND' above it and '1000mW' beside the 5.8G mark). Two manufacturer statements for one field publish neither - the iFlight BLITZ Whoop rule, arriving this time between a manual and a case label. **antenna_connector is empty for the same reason**: the SPECS block says MMCX and the brand's parts table on the product page ships an 'IPEX copper pipe antenna' and an 'IPEX transfer SMA patch cord'. **weight_g is empty**: the only figure the brand publishes is 4.8 g explicitly excluding the CNC shell that every photograph of this part shows it wearing, so it is not the weight of the thing sold. mount_mm is the 20x20mm pattern; the hole is φ3mm and the description image annotates it '3.05mm' against an 'M2 Thread' in the shell, which is the eleventh burst's rule that the column takes the hole.
