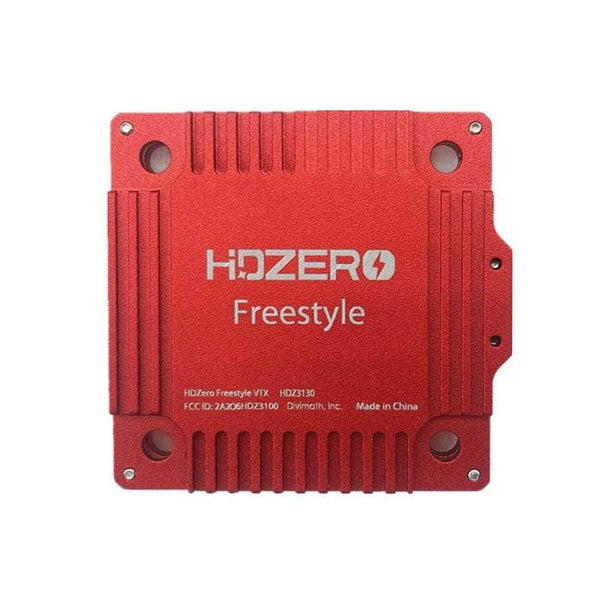

HDZero Freestyle 30x30 25-1000mW Digital HD
Listed as: HDZero Freestyle 30x30 25-1000mW Digital HD - U.FL
Of the 10 other 5.8 GHz HDZero video transmitters in our database, 8 have a lower maximum power than the Freestyle 30x30 25-1000mW Digital HD (1000 mW, 30 dBm) and 2 the same; the class median is 200 mW. The Freestyle 30x30 25-1000mW Digital HD steps through 25 / 200 mW, which is 14 / 23 dBm: the top level is 9 dB above the lowest, about 2.8x the free-space range on the same antennas.
| System | HDZero |
|---|---|
| Max power | 1000 mW |
| Power levels | 25 / 200 mW |
| Frequency range | 5.725-5.850 GHz |
| Band | 5.8 GHz |
| Input voltage | 2S-6S (1st batch 2S-4S) |
| Power draw | 6-15 W |
| Mounting | 30x30mm M3 |
| Channels | 12 |
| Antenna connector | U.FL |
| Weight | 28.0 g |
| Price (approx.) | 99.99 USD |
Choosing between systems? See analog vs DJI vs Walksnail vs HDZero.
Where this data comes from
Manufacturer source 2026-09-23, and it names the part: this is the HDZero Freestyle V1, which the HDZero VTX User Manual v1.1 lists under 'Discontinued Video Transmitters' (p22) at 40x40 mm body, 30x30 M3 (Soft) mounting, 28 grams, 2S-6S power input, 6~15W, RF power output '25mW,200mW (500mW, 1W if with HAM license)', Secured U.FL, RHCP antenna included. The 28 g and the 30x30 pattern this page already published are that row exactly, which is how the retail title's 'Freestyle 30x30' is pinned to a model name. The manual adds (p28) that the first batch supports 2S-4S and ships with a 2S-6S BEC, the second batch and later 2S-6S with no BEC, and that the heat sink is part of the design. HDZero's shop no longer lists it, so there is no product page to cite - the manual is the whole manufacturer record. power_levels_mw holds the legal steps only, 25 / 200 (owner ruling 2026-10-20); the manual's licence-only steps, '500mW, 1W if with HAM license', stay here and not in the column. power_draw is the maker's own supply figure, 'Power Consumption: 6~15W' in the Freestyle V1 (EOL, 30x30) column of HDZero's discontinued-VTX table, read 2026-10-17; it is the VTX's input draw, not its RF output. channels is the HDZero VTX User Manual v1.1's own list, re-read 2026-10-20: 'Using VTX Menu' (p8) says 'All VTXes support R1-R8, E1, F1, F2 and F4 channels. You will get an additional 8 channels L1-L8 if you unlock the low band', and the 'Unlock Low Band' page (p18) has it flashed from HDZero's Unlock_Lowband.zip after 'Make sure your region allows low band before unlocking' - so 12 is the count as shipped and the L1-L8 band is a regional unlock, not counted. The manual keeps the Freestyle V1's own page (p27), so the menu line covers it.
