RUSHFPV XSPAN 6.1-7.2GHz 8W
Of the 7 other 6.0-8.5 GHz analog video transmitters in our database, 6 have a lower maximum power than the XSPAN 6.1-7.2GHz 8W (8000 mW, 39 dBm) and 1 a higher one; the class median is 5000 mW. The XSPAN 6.1-7.2GHz 8W steps through 25 / 200 / 2000 / 8000 mW, which is 14 / 23 / 33 / 39 dBm: the top level is 25 dB above the lowest, about 17.9x the free-space range on the same antennas.
| System | analog |
|---|---|
| Max power | 8000 mW |
| Power levels | 25 / 200 / 2000 / 8000 mW |
| Frequency range | 6.1-7.2 GHz |
| Band | 6.0-8.5 GHz |
| Input voltage | 7-30V |
Other transmitters in this band, side by side: 6-8.5 GHz (incl. 7.2 GHz) FPV VTX compared.
Choosing between systems? See analog vs DJI vs Walksnail vs HDZero.
Where this data comes from

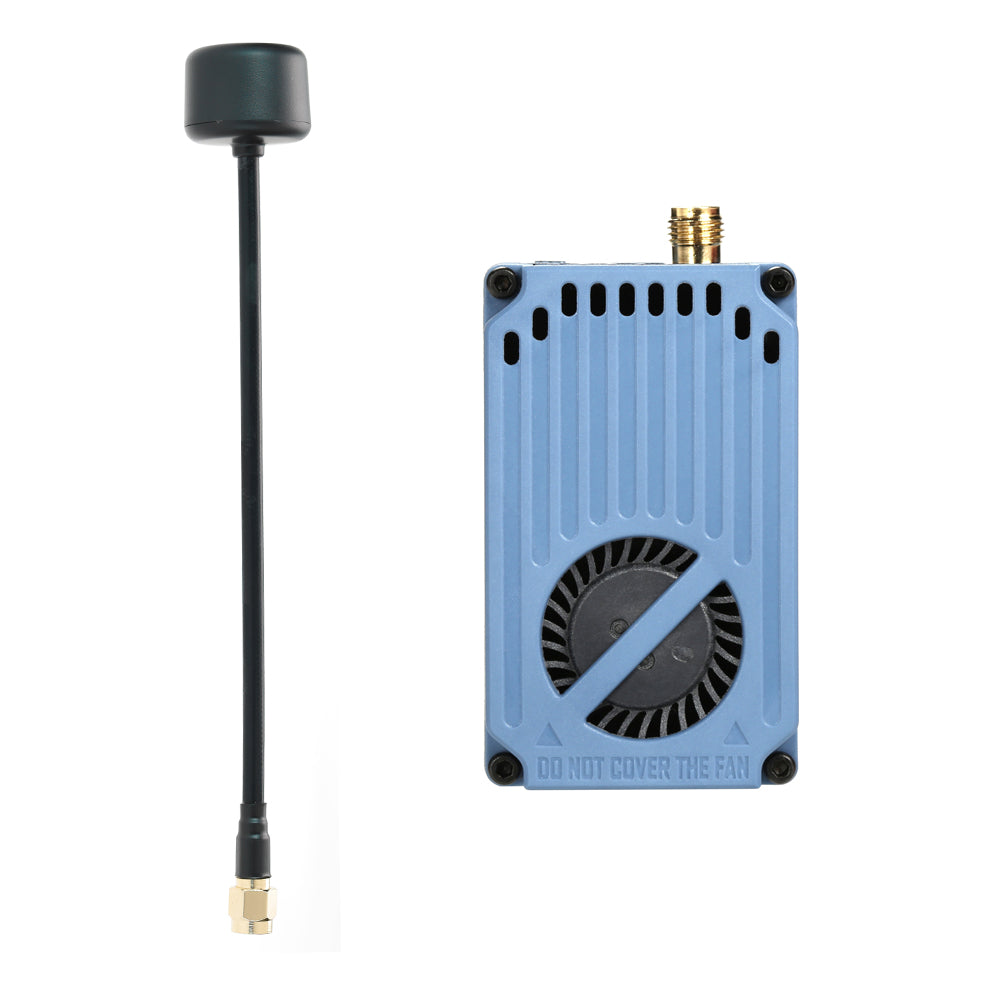

Board marking XN-61728. Label: power steps PIT / 25 / 200 mW / 2 W / 8 W, eight bands (A, B, E, F, R, P, H, U), eight channels per band, 7-30 V dual DC-in. No MHz edges on the label, so the range is the model name's. X-SPAN is RushFPV's name for its wideband analog module line - a standalone brick with an SMA jack, a fan and a dual DC-in that also feeds the camera, not a board you bolt into a stack. RushFPV publishes no weight and no mounting pattern for the class, so those columns stay empty. Output above the lowest step is licensed spectrum in most countries; the module's own label carries that reminder.
