Skyzone VT5850 CNC 6.2G 5W VTX
Of the 17 other Wideband 4.9-6.0 GHz analog video transmitters in our database, 9 have a lower maximum power than the VT5850 CNC 6.2G 5W VTX (5000 mW, 37 dBm), 2 the same and 6 a higher one; the class median is 4500 mW.
| System | analog |
|---|---|
| Max power | 5000 mW |
| Frequency range | 4990-6184 MHz |
| Band | Wideband 4.9-6.0 GHz |
| Input voltage | 9-36V |
| Mounting | 30.5x30.5mm |
| Channels | 64 |
| Antenna connector | MMCX |
| Weight | 40 g |
| Price (approx.) | 56.5 USD |
Other transmitters in this band, side by side: Wideband 4.9-6.0 GHz FPV VTX compared.
Choosing between systems? See analog vs DJI vs Walksnail vs HDZero.
Where this data comes from

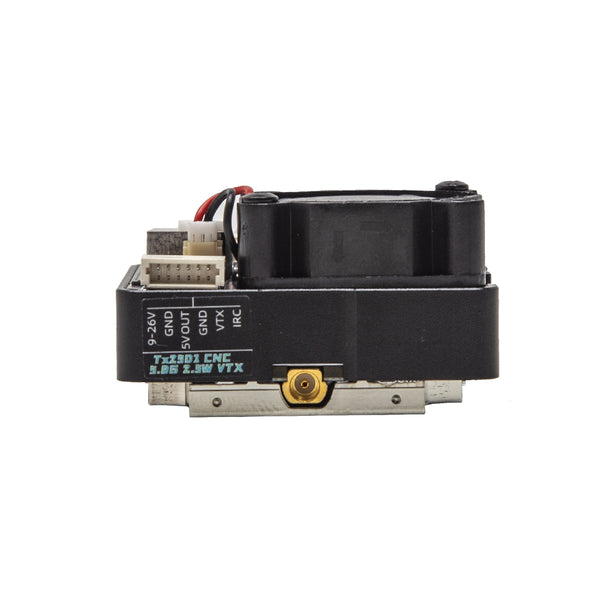

Read 2026-09-25 off the brand's own shop, the fifteenth VTX manufacturer catalogue read beside the US retail scrape. www.skyzonefpv.com and atomrc.com are two Shopify stores of one company: /products.json?limit=250 is the whole catalogue in one request on each, the two shops carry the same product_type taxonomy and each lists the other brand's transmitters, and the boards are silkscreened with the brand whose name is on the case rather than the one in the page title. A prose page with no spec block: the brand's only model-specific statement is its own name for the part, identical on both shops - title 'SKYZONE VT5850 CNC 6.2G 5W VTX' over a description opening 'The SKYZONE VT5850 4.9G/6.2G 5W VTX With CNC Case and Fan' - which is where the 5 W and the band edges come from. **Its photographs are another model's**: every one of the six shows a case silkscreened 'Tx2501 CNC 5.8G 2.5W VTX' beside a '9-26V / GND / 5VOUT / GND / VTX / IRC' pinout, read at full resolution, and one of them carries the TX2501 CNC's 38.8 x 38.6 x 22.5 mm dimension annotation. Nothing was taken from those photographs - a 2.5 W 5.8G case on a 5 W 6.2G page describes the other product. Re-read 2026-10-20 (225th burst): the skyzonefpv.com gallery now opens with the part's own one-page spec sheet, titled 'VT5850 CNC 6.2G VTX' (VT5850_CNC_6.2G_VTX_251031EN.jpg, 1000x2098, read at full resolution). Its frequency table is 8 bands A B E F R L X S of 8 - A to X the TX2501's 56 cells, S 6002/6028/6054/6080/6106/6132/6158/6184M - so channels 64 and frequency_range 4990-6184 MHz, the edges of that grid in the sheet's unit; a second gallery image (VT5850.png), the maker's measured output per frequency, runs over the same 4990-6184 axis. The sheet also prints Antenna port mmcx, Input voltage 9~36V, Protocol IRC / Button control with LED segment display, Mounting 30.5*30.5*M3, size 38.8*38.6*22.5mm and weight 40g, and its wiring diagram's rail reads IRC / VTX / GND / 5V OUT / GND / 9-36V - a 9-36V rail and 40 g where the TX2501 CNC prints 9-26V and 27.5 g, so this is the VT5850's own sheet and not the shared photographs. Its Power row states only tolerances ('Low power ±2dBm, Max power ±0.8dBm'), so power_levels_mw stays empty and max_power_mw keeps the 5 W of the part's name.
