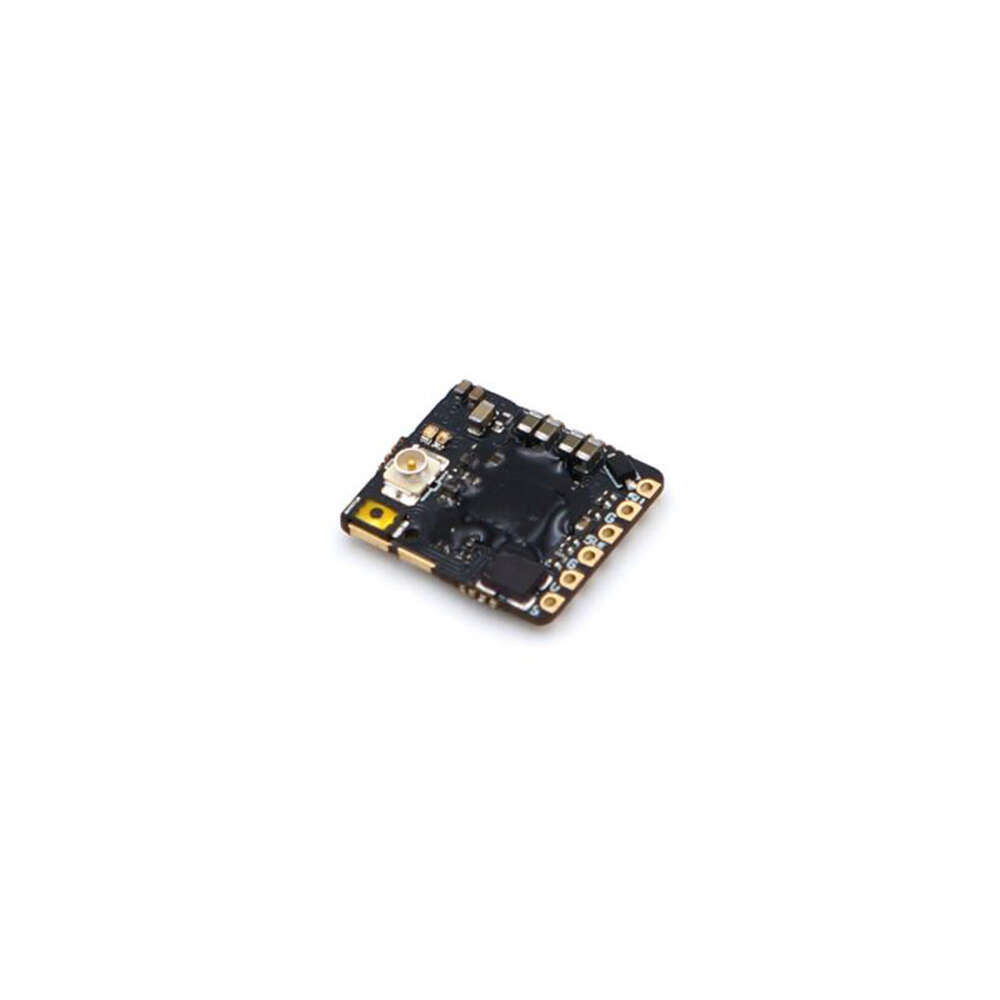

TBS Unify Pro32 Nano 5G8 V1.1
Of the 81 other 5.8 GHz analog video transmitters in our database, 22 have a lower maximum power than the Unify Pro32 Nano 5G8 V1.1 (500 mW, 27 dBm) and 59 a higher one; the class median is 800 mW.
TBS's own Betaflight VTX table is on this page: 6 bands of 8 channels, 5362–5945 MHz, 4 power levels, SmartAudio 2.1. CLI commands and JSON file.
| System | analog |
|---|---|
| Max power | 500 mW |
| Power levels | 25 / 100 / 400 / 500+ mW |
| Frequency range | 5.8 GHz |
| Input voltage | 5-13V |
| Power draw | 210 mA at 25 mW, 390 mA at 400 mW |
| Antenna connector | U.FL |
| Weight | 1.0 g |
TBS Unify Pro32 Nano 5G8 V1.1 VTX table for Betaflight
The band and channel frequencies and power levels as TBS publishes them for SmartAudio 2.1 control. Paste the CLI commands into Betaflight's CLI tab, or load the JSON file in Betaflight Configurator's Video Transmitter tab. How it works: setting up a VTX table in Betaflight.
| Band | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
|---|---|---|---|---|---|---|---|---|
| A BOSCAM_A | 5865 | 5845 | 5825 | 5805 | 5785 | 5765 | 5745 | 5725 |
| B BOSCAM_B | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 |
| E BOSCAM_E | 5705 | 5685 | 5665 | 5645 | 5885 | 5905 | 5925 | 5945 |
| F FATSHARK | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
| R RACEBAND | 5658 | 5695 | 5732 | 5769 | 5806 | 5843 | 5880 | 5917 |
| L RACE_LOW | 5362 | 5399 | 5436 | 5473 | 5510 | 5547 | 5584 | 5621 |
Frequencies in MHz; "—" is an unused slot. Power levels: 25 (value 14), 100 (value 20), 400 (value 26), MAX (value 36).
vtxtable bands 6
vtxtable channels 8
vtxtable band 1 BOSCAM_A A FACTORY 5865 5845 5825 5805 5785 5765 5745 5725
vtxtable band 2 BOSCAM_B B FACTORY 5733 5752 5771 5790 5809 5828 5847 5866
vtxtable band 3 BOSCAM_E E FACTORY 5705 5685 5665 5645 5885 5905 5925 5945
vtxtable band 4 FATSHARK F FACTORY 5740 5760 5780 5800 5820 5840 5860 5880
vtxtable band 5 RACEBAND R FACTORY 5658 5695 5732 5769 5806 5843 5880 5917
vtxtable band 6 RACE_LOW L FACTORY 5362 5399 5436 5473 5510 5547 5584 5621
vtxtable powerlevels 4
vtxtable powervalues 14 20 26 36
vtxtable powerlabels 25 100 400 MAX
saveSource: https://www.team-blacksheep.com/media/files/vtx-table-for-betaflight.txt — TBS's own Betaflight table, the file linked as "VTX Table for Betaflight" under Downloads on the Unify PRO32 Nano page, block "//TBS Unify Pro32 Nano - SA 2.1". Six factory bands of eight; the sixth, RACE_LOW, is the 5.3 GHz low race band the file's changelog added in v1.1, and the five above it are the manual's Channel/Band - Frequency Table (page 10) slot for slot. Power values are dBm except the top one: the file's own comment reads "max power set to 36db as it will force the vtx to ouput max power", so 36 is that switch and not an output - the product page prints 25 / 100 / 400 / 500+ mW. The Unify family also ships as a Betaflight preset.
Transmitting is only legal on the frequencies and power your country allows; see VTX frequency bands.
Every manufacturer table in the database, with one archive of all the files: VTX table library.
Choosing between systems? See analog vs DJI vs Walksnail vs HDZero.
Where this data comes from
TBS's own spec block: Video System Analog, Min/Max Input Voltage 5/13 V, Min/Max Frequency Band 5658/5945 MHz, Output Power 25 / 100 / 400 / 500+ mW, NTSC/PAL, 75 Ohm video input, audio no, pit mode yes, SmartAudio yes, OSD support yes, u.FL, 15 x 13 x 2 mm, 1 g. max_power_mw is the 500 of that top step, which the page's own highlights repeat as 'Up to 500mw+ of output power'; the '+' is TBS's and is kept in power_levels_mw rather than turned into a number. mount_mm is empty - 15 x 13 x 2 mm is the board and the page prints no mounting pattern - and so is channels, which the block never states. This is the nano of the Pro32 family, the same radio class as the Pro32 HV we carry at a fifth of its weight. TBS notes that the transmitter ships with only legal channels and power levels enabled; a HAM licence is required for the rest. Out of stock at TBS on 2026-09-23. power_draw is the maker's own supply figure, 'Power consumption 25mW: 210mA, 400mW: 390mA' in the TBS UNIFY PRO32 5G8 nano column of the Unify Pro32 manual's spec table, read 2026-10-18 at full resolution; no supply voltage is printed beside it. It is the VTX's input draw, not its RF output.
