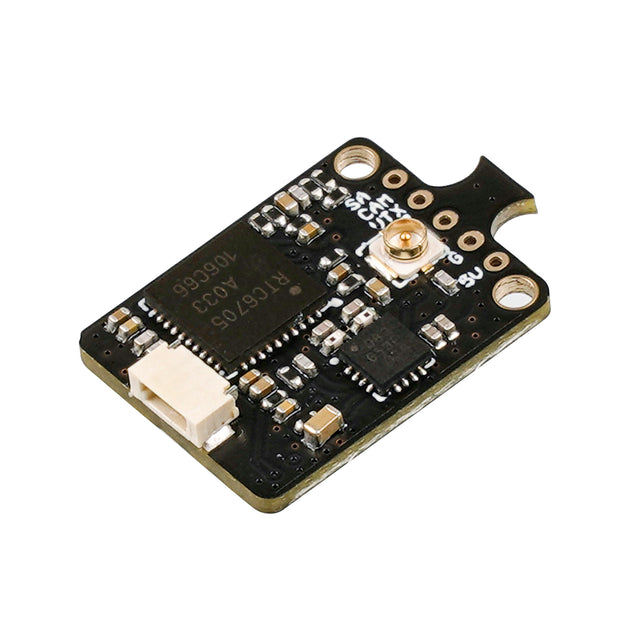

BetaFPV M03 5.8G VTX
Of the 81 other 5.8 GHz analog video transmitters in our database, 16 have a lower maximum power than the M03 5.8G VTX (400 mW, 26 dBm), 5 the same and 60 a higher one; the class median is 800 mW.
BetaFPV's own Betaflight VTX table is on this page: 5 bands of 8 channels, 5645–5945 MHz, 5 power levels, SmartAudio. CLI commands and JSON file.
| System | analog |
|---|---|
| Max power | 400 mW |
| Power levels | PIT / 25 / 100 / 200 / 400 mW |
| Frequency range | 5.8 GHz |
| Input voltage | 4.5-5.5V |
| Channels | 48 |
| Antenna connector | U.FL |
| Weight | 1.1 g |
BetaFPV M03 5.8G VTX VTX table for Betaflight
The band and channel frequencies and power levels as BetaFPV publishes them for SmartAudio control. Paste the CLI commands into Betaflight's CLI tab, or load the JSON file in Betaflight Configurator's Video Transmitter tab. How it works: setting up a VTX table in Betaflight.
| Band | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
|---|---|---|---|---|---|---|---|---|
| A BOSCAM_A | 5865 | 5845 | 5825 | 5805 | 5785 | 5765 | 5745 | 5725 |
| B BOSCAM_B | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 |
| E BOSCAM_E | 5705 | 5685 | 5665 | 5645 | 5885 | 5905 | 5925 | 5945 |
| F FATSHARK | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
| R RACEBAND | 5658 | 5695 | 5732 | 5769 | 5806 | 5843 | 5880 | 5917 |
Frequencies in MHz; "—" is an unused slot. Power levels: 25 (value 1), PIT (value 0), 100 (value 2), 200 (value 3), 400 (value 4).
vtxtable bands 5
vtxtable channels 8
vtxtable band 1 BOSCAM_A A FACTORY 5865 5845 5825 5805 5785 5765 5745 5725
vtxtable band 2 BOSCAM_B B FACTORY 5733 5752 5771 5790 5809 5828 5847 5866
vtxtable band 3 BOSCAM_E E FACTORY 5705 5685 5665 5645 5885 5905 5925 5945
vtxtable band 4 FATSHARK F FACTORY 5740 5760 5780 5800 5820 5840 5860 5880
vtxtable band 5 RACEBAND R FACTORY 5658 5695 5732 5769 5806 5843 5880 5917
vtxtable powerlevels 5
vtxtable powervalues 1 0 2 3 4
vtxtable powerlabels 25 PIT 100 200 400
saveSource: https://support.betafpv.com/hc/article_attachments/14500271007513 — Copied from the maker's Betaflight CLI file M03 V1.1.txt attached to the BETAFPV support article 'CLI for VTX' (https://support.betafpv.com/hc/en-us/articles/4410949062809-CLI-for-VTX), which the product page links. The article carries two M03 files and says each hardware version needs its own; the product page says the current version is V1.1 and prints PIT/25/100/200/400mW (V1.1), which is this file: five levels with values 1 0 2 3 4 and labels 25 PIT 100 200 400, so PIT is value 0 and the values are level indexes. The V1.0 file (https://support.betafpv.com/hc/article_attachments/14500217265433) is 25/100/200/350 with values 0-3 under a SmartAudio 2.0 header; the V1.1 file has no header and the page says only 'Channel SEL: SmartAudio'.
