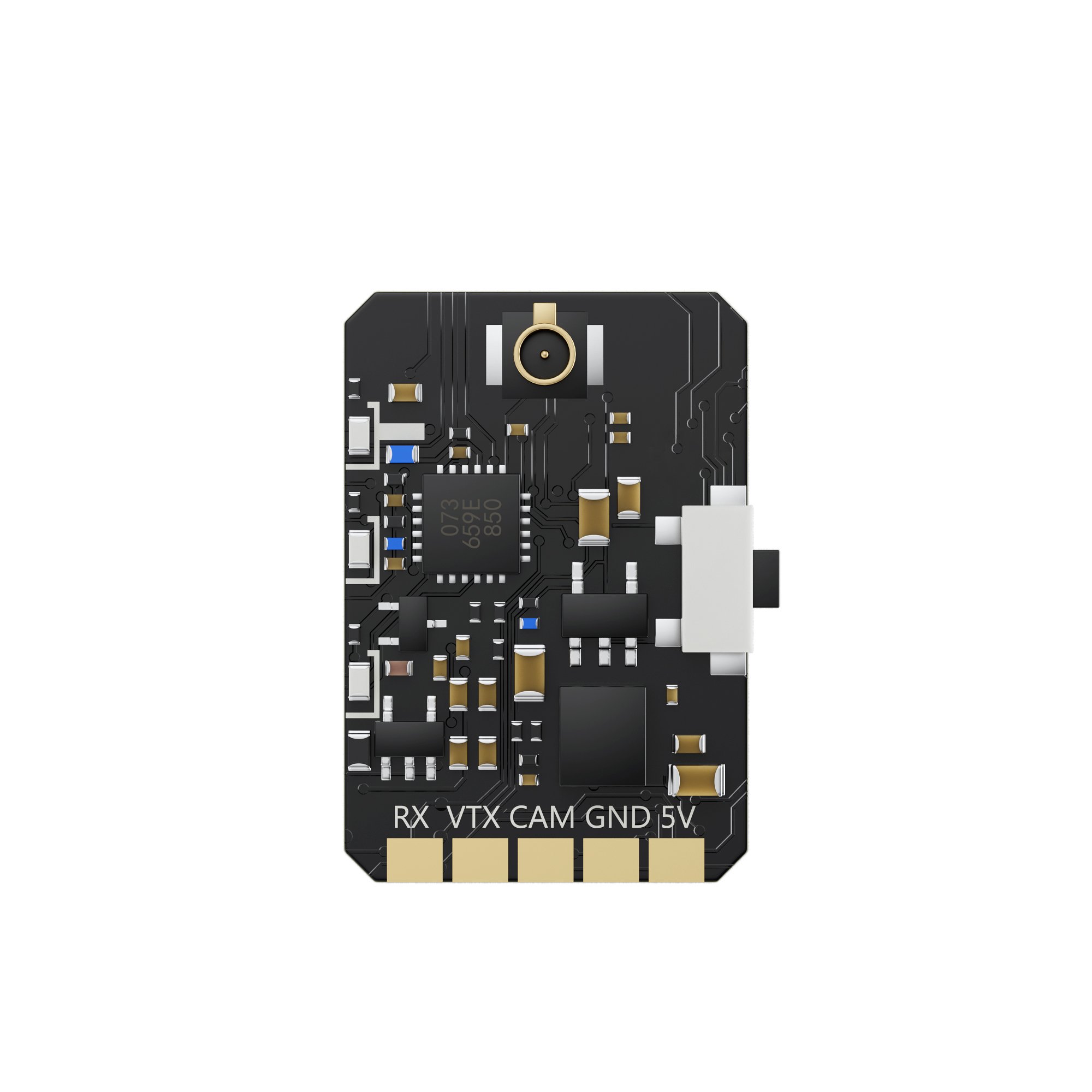

GEPRC RAD Tiny 5.8G 400mW VTX
Of the 81 other 5.8 GHz analog video transmitters in our database, 16 have a lower maximum power than the RAD Tiny 5.8G 400mW VTX (400 mW, 26 dBm), 5 the same and 60 a higher one; the class median is 800 mW. The RAD Tiny 5.8G 400mW VTX steps through 25 / 200 / 400 mW, which is 14 / 23 / 26 dBm: the top level is 12 dB above the lowest, about 4.0x the free-space range on the same antennas.
GEPRC's own Betaflight VTX table is on this page: 6 bands of 8 channels, 5362–5917 MHz, 3 power levels, IRC Tramp. CLI commands and JSON file.
| System | analog |
|---|---|
| Max power | 400 mW |
| Power levels | 25 / 200 / 400 mW |
| Frequency range | 5.8 GHz |
| Input voltage | 5V |
| Channels | 48 |
| Antenna connector | U.FL |
| Weight | 1.1 g |
| Price (approx.) | 26.99 USD |
GEPRC RAD Tiny 5.8G 400mW VTX VTX table for Betaflight
The band and channel frequencies and power levels as GEPRC publishes them for IRC Tramp control. Paste the CLI commands into Betaflight's CLI tab, or load the JSON file in Betaflight Configurator's Video Transmitter tab. How it works: setting up a VTX table in Betaflight.
| Band | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
|---|---|---|---|---|---|---|---|---|
| A BOSCAM_A | 5865 | 5845 | 5825 | 5805 | 5785 | 5765 | 5745 | 5725 |
| B BOSCAM_B | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 |
| E BOSCAM_E | 5705 | 5685 | 5665 | 5665 | 5885 | 5905 | 5905 | 5905 |
| F FATSHARK | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
| R RACEBAND | 5658 | 5695 | 5732 | 5769 | 5806 | 5843 | 5880 | 5917 |
| L LOWRACE | 5362 | 5399 | 5436 | 5473 | 5510 | 5547 | 5584 | 5621 |
Frequencies in MHz; "—" is an unused slot. Power levels: 25 (value 25), 200 (value 200), 400 (value 400).
vtxtable bands 6
vtxtable channels 8
vtxtable band 1 BOSCAM_A A CUSTOM 5865 5845 5825 5805 5785 5765 5745 5725
vtxtable band 2 BOSCAM_B B CUSTOM 5733 5752 5771 5790 5809 5828 5847 5866
vtxtable band 3 BOSCAM_E E CUSTOM 5705 5685 5665 5665 5885 5905 5905 5905
vtxtable band 4 FATSHARK F CUSTOM 5740 5760 5780 5800 5820 5840 5860 5880
vtxtable band 5 RACEBAND R CUSTOM 5658 5695 5732 5769 5806 5843 5880 5917
vtxtable band 6 LOWRACE L CUSTOM 5362 5399 5436 5473 5510 5547 5584 5621
vtxtable powerlevels 3
vtxtable powervalues 25 200 400
vtxtable powerlabels 25 200 400
saveSource: https://geprc.com/wp-content/uploads/2023/09/RAD-Tiny-VTX-Table-CLI-Command.txt — GEPRC's own CLI dump. Its three power values are the product page's 25mW/200mW/400mW output-power line. Band names are stored as Betaflight keeps them, eight characters, where the file writes FATSHARK_F and RACEBAND_R. The E band repeats 5665 and 5905 exactly as GEPRC's RAD MINI and RAD VTX 5.8G 2.5W dumps do.
Transmitting is only legal on the frequencies and power your country allows; see VTX frequency bands.
Every manufacturer table in the database, with one archive of all the files: VTX table library.
Choosing between systems? See analog vs DJI vs Walksnail vs HDZero.
Where this data comes from
Read 2026-09-24 off GEPRC's own site, the thirteenth VTX manufacturer catalogue read beside the US retail scrape and the second brand this catalogue carried no transmitter of at all. geprc.com is WooCommerce: /wp-json/wp/v2/product lists the whole catalogue and product_cat=211 ('Electronics', 114 SKUs) holds the transmitters, but the REST API's content field is only the description gallery - the labelled Specifications block is in the product page HTML, so every figure here was read off the page itself. Block lines: 'Output power: 25mW/200mW/400mW/PIT MODE', 'Channels: 48CH', 'Input Voltage: DC 5V', 'Antenna: UFL', 'Weight: 1.1g（antenna not included）', 'Dimension: 14mmx18.5mm', 'Control protocol: IRC Tramp', 'Input Impedance: 75Ω', 'Video Format: PAL/NTSC'. mount_mm is empty on purpose: 14x18.5mm is the board's outline and this page states no mounting pattern at all - the seventh burst's mount-holds-body-dimensions rule. frequency_range is the title's class label; the page's only band statement is its button legend, which names A, B, E, F, R and L without frequencies. The output-voltage row reads 'Output Voltage: 5V(Power supply 5V to camera)', so the 5 V here is an input taken from the flight controller and a 5 V feed passed to the camera.
