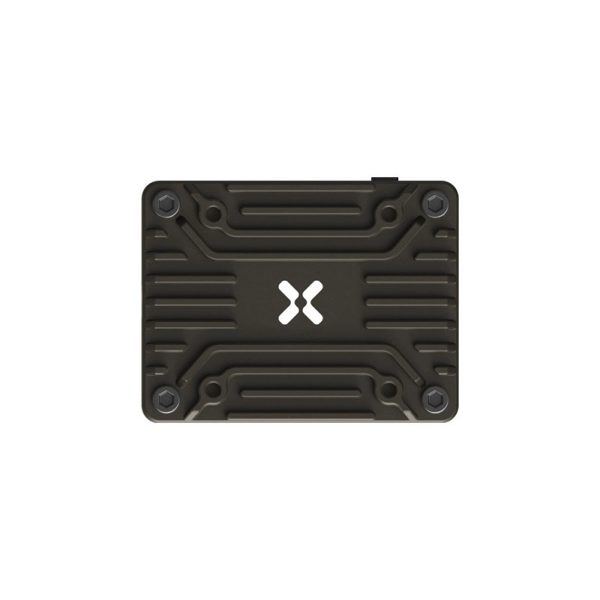

Foxeer Reaper Extreme V2 4.9-6.0GHz 2.5W
Of the 17 other Wideband 4.9-6.0 GHz analog video transmitters in our database, none has a lower maximum power than the Reaper Extreme V2 4.9-6.0GHz 2.5W (2500 mW, 34 dBm), 2 the same and 15 a higher one; the class median is 4500 mW. The Reaper Extreme V2 4.9-6.0GHz 2.5W steps through 25 / 200 / 500 / 1500 / 2500 mW, which is 14 / 23 / 27 / 32 / 34 dBm: the top level is 20 dB above the lowest, about 10.0x the free-space range on the same antennas.
Foxeer's own Betaflight VTX table is on this page: 8 bands of 8 channels, 4990–5945 MHz, 5 power levels. That is the LX profile: Foxeer splits the channels over 2 tables (LX, UO), 4990–5945 MHz together, all on this page. CLI commands and JSON files.
| System | analog |
|---|---|
| Max power | 2500 mW |
| Power levels | 25 / 200 / 500 / 1500 / 2500 mW |
| Frequency range | 4.9-6.0 GHz |
| Band | Wideband 4.9-6.0 GHz |
| Input voltage | 9-36V (3-8S) |
| Power draw | 1.2 A at 9 V |
| Mounting | 20x20mm M2 |
| Channels | 80 |
| Antenna connector | MMCX |
| Weight | 13.0 g |
Foxeer Reaper Extreme V2 4.9-6.0GHz 2.5W VTX tables for Betaflight
The band and channel frequencies and power levels as Foxeer publishes them. Paste the CLI commands into Betaflight's CLI tab, or load the JSON file in Betaflight Configurator's Video Transmitter tab. Betaflight holds eight bands, so Foxeer ships 2 tables (LX, UO); load the one whose bands you fly. How it works: setting up a VTX table in Betaflight.
LX profile: ABEFRHLX, 4990–5945 MHz
| Band | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
|---|---|---|---|---|---|---|---|---|
| A BAND_A | 5865 | 5845 | 5825 | 5805 | 5785 | 5765 | 5745 | 5725 |
| B BAND_B | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 |
| E BAND_E | 5705 | 5685 | 5665 | 5645 | 5885 | 5905 | 5925 | 5945 |
| F BAND_F | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
| R BAND_R | 5658 | 5695 | 5732 | 5769 | 5806 | 5843 | 5880 | 5917 |
| H BAND_H | 5653 | 5693 | 5733 | 5773 | 5813 | 5853 | 5893 | 5933 |
| L BAND_L | 5333 | 5373 | 5413 | 5453 | 5493 | 5533 | 5573 | 5613 |
| X BAND_X | 4990 | 5020 | 5050 | 5080 | 5110 | 5140 | 5170 | 5200 |
Frequencies in MHz; "—" is an unused slot. Power levels: 25 (value 25), 200 (value 100), 500 (value 200), 1.5 (value 400), 2.5 (value 600).
vtxtable bands 8
vtxtable channels 8
vtxtable band 1 BAND_A A CUSTOM 5865 5845 5825 5805 5785 5765 5745 5725
vtxtable band 2 BAND_B B CUSTOM 5733 5752 5771 5790 5809 5828 5847 5866
vtxtable band 3 BAND_E E CUSTOM 5705 5685 5665 5645 5885 5905 5925 5945
vtxtable band 4 BAND_F F CUSTOM 5740 5760 5780 5800 5820 5840 5860 5880
vtxtable band 5 BAND_R R CUSTOM 5658 5695 5732 5769 5806 5843 5880 5917
vtxtable band 6 BAND_H H CUSTOM 5653 5693 5733 5773 5813 5853 5893 5933
vtxtable band 7 BAND_L L CUSTOM 5333 5373 5413 5453 5493 5533 5573 5613
vtxtable band 8 BAND_X X CUSTOM 4990 5020 5050 5080 5110 5140 5170 5200
vtxtable powerlevels 5
vtxtable powervalues 25 100 200 400 600
vtxtable powerlabels 25 200 500 1.5 2.5
saveSource: https://download.foxeer.com/Foxeer_Reaper_VTx_Table_2.5W_A_B_E_F_R_H_L_X.json — Foxeer's own Betaflight VTX config file (Foxeer_Reaper_VTx_Table_2.5W_A_B_E_F_R_H_L_X.json), linked from the Downloads list of the product page, which titles this part Reaper Extreme V3 2.5W 80CH and names it "Reaper Extreme 2.5W V3". The page prints the whole 80-channel grid as ten bands (A B E F R H L U O X) and Betaflight takes eight, so Foxeer publishes two eight-band selections of it; stored here is the A_B_E_F_R_H_L_X one, the only one that carries band X (4990-5200 MHz), i.e. the 4.9 GHz end of this transmitter's range. The twin file (Foxeer_VTx_table_2.5W_A_B_E_F_R_H_U_O.json) drops L and X for U (5325-5456 MHz) and O (5474-5600 MHz); it is this page's UO profile, and this one is LX. Every cell of the eight bands stored is identical to the page's own grid. The five power levels are the page's own Power line read across (25mW/200mW/500mW/1.5W/2.5W). Foxeer pads the file's "name" and "label" fields with spaces to Betaflight's field width; they are stored here without the padding.
UO profile: ABEFRHUO, 5325–5945 MHz
| Band | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
|---|---|---|---|---|---|---|---|---|
| A BAND_A | 5865 | 5845 | 5825 | 5805 | 5785 | 5765 | 5745 | 5725 |
| B BAND_B | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 |
| E BAND_E | 5705 | 5685 | 5665 | 5645 | 5885 | 5905 | 5925 | 5945 |
| F BAND_F | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
| R BAND_R | 5658 | 5695 | 5732 | 5769 | 5806 | 5843 | 5880 | 5917 |
| H BAND_H | 5653 | 5693 | 5733 | 5773 | 5813 | 5853 | 5893 | 5933 |
| U BAND_U | 5325 | 5348 | 5366 | 5384 | 5402 | 5420 | 5438 | 5456 |
| O BAND_O | 5474 | 5492 | 5510 | 5528 | 5546 | 5564 | 5582 | 5600 |
Frequencies in MHz; "—" is an unused slot. Power levels: 25 (value 25), 200 (value 100), 500 (value 200), 1.5 (value 400), 2.5 (value 600).
vtxtable bands 8
vtxtable channels 8
vtxtable band 1 BAND_A A CUSTOM 5865 5845 5825 5805 5785 5765 5745 5725
vtxtable band 2 BAND_B B CUSTOM 5733 5752 5771 5790 5809 5828 5847 5866
vtxtable band 3 BAND_E E CUSTOM 5705 5685 5665 5645 5885 5905 5925 5945
vtxtable band 4 BAND_F F CUSTOM 5740 5760 5780 5800 5820 5840 5860 5880
vtxtable band 5 BAND_R R CUSTOM 5658 5695 5732 5769 5806 5843 5880 5917
vtxtable band 6 BAND_H H CUSTOM 5653 5693 5733 5773 5813 5853 5893 5933
vtxtable band 7 BAND_U U CUSTOM 5325 5348 5366 5384 5402 5420 5438 5456
vtxtable band 8 BAND_O O CUSTOM 5474 5492 5510 5528 5546 5564 5582 5600
vtxtable powerlevels 5
vtxtable powervalues 25 100 200 400 600
vtxtable powerlabels 25 200 500 1.5 2.5
saveSource: https://download.foxeer.com/Foxeer_VTx_table_2.5W_A_B_E_F_R_H_U_O.json — Foxeer's twin Betaflight VTX config file (Foxeer_VTx_table_2.5W_A_B_E_F_R_H_U_O.json), linked beside the LX file from the same product page's Downloads list: bands A B E F R H as in LX, then U (5325-5456 MHz) and O (5474-5600 MHz) in place of L and X. Every cell is identical to the page's own grid. Power levels as in the LX file (the two files carry the same five).
Transmitting is only legal on the frequencies and power your country allows; see VTX frequency bands.
Other transmitters in this band, side by side: Wideband 4.9-6.0 GHz FPV VTX compared; every manufacturer table in one place: VTX table library.
Choosing between systems? See analog vs DJI vs Walksnail vs HDZero.
Where this data comes from
Wideband version of the Reaper Extreme: 80 channels spread over 4.9-6.0 GHz instead of the 40-72 channels of the 5.8 GHz-only model. 36x27.5x8 mm CNC shell, 5 V BEC for the camera, built-in microphone, 1.2 A draw at 9 V. Retailer spec blocks disagree on the top step - some list 1.5 W as the maximum while the model is sold as 2.5 W; Foxeer's own manual gives the five steps recorded here. Second source 2026-09-23: Foxeer's own catalogue. The foxeer.com link this page used to carry (g-566) is the 5.8 GHz 72-channel Reaper Extreme V2, a different module with its own page here; the part Foxeer sells as the 80-channel 4.9G~6G 2.5W module is listed as 'Reaper Extreme V3' (SKU MR1844) and its spec table matches every value on this page - 9~36V in, 5V out, 80CH, 25mW/200mW/500mW/1.5W/2.5W, 13 g, 20*20mm M2 2.8 mm deep, 36*27.5*8 mm, 1.2 A at 9 V. Retailers sell the same module as 'Reaper Extreme V2 4.9G-6G 2.5W', which is the name this page was created under and the name a buyer searches; whether the page should be renamed to V3 is recorded as a question for a human rather than guessed at. power_draw is the maker's own supply figure, 'Consumption: 1.2A/9V' (Foxeer lists this 80-channel module as Reaper Extreme V3), read 2026-10-17; it is the VTX's input draw, not its RF output.
