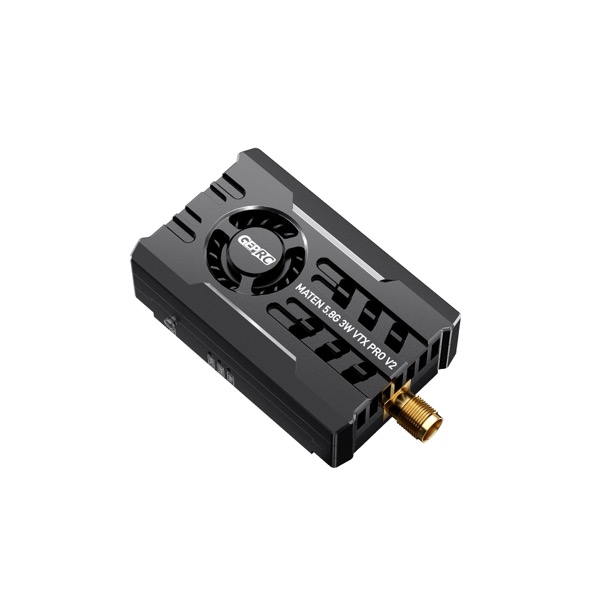

GEPRC MATEN 5.8G 3W VTX PRO V2
Of the 17 other Wideband 4.9-6.0 GHz analog video transmitters in our database, 3 have a lower maximum power than the MATEN 5.8G 3W VTX PRO V2 (3000 mW, 35 dBm), 2 the same and 12 a higher one; the class median is 4500 mW. The MATEN 5.8G 3W VTX PRO V2 steps through 25 / 200 / 600 / 1600 / 3000 mW, which is 14 / 23 / 28 / 32 / 35 dBm: the top level is 21 dB above the lowest, about 11.0x the free-space range on the same antennas.
GEPRC's own Betaflight VTX table is on this page: 8 bands of 8 channels, 5325–5945 MHz, 5 power levels, IRC Tramp. CLI commands and JSON file.
| System | analog |
|---|---|
| Max power | 3000 mW |
| Power levels | 25 / 200 / 600 / 1600 / 3000 mW |
| Frequency range | 4884-6184 MHz |
| Band | Wideband 4.9-6.0 GHz |
| Input voltage | 7-36V (2-8S) |
| Mounting | 20x20mm M2 / 25.5x25.5mm M2 |
| Channels | 104 |
| Antenna connector | MMCX / SMA |
| Weight | 35.6 g |
| Price (approx.) | 59.99 USD |
GEPRC MATEN 5.8G 3W VTX PRO V2 VTX table for Betaflight
The band and channel frequencies and power levels as GEPRC publishes them for IRC Tramp control. Paste the CLI commands into Betaflight's CLI tab, or load the JSON file in Betaflight Configurator's Video Transmitter tab. How it works: setting up a VTX table in Betaflight.
| Band | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
|---|---|---|---|---|---|---|---|---|
| A BOSCAM_A | 5865 | 5845 | 5825 | 5805 | 5785 | 5765 | 5745 | 5725 |
| B BOSCAM_B | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 |
| E BOSCAM_E | 5705 | 5685 | 5665 | 5645 | 5885 | 5905 | 5925 | 5945 |
| F FATSHARK | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
| R RACEBAND | 5658 | 5695 | 5732 | 5769 | 5806 | 5843 | 5880 | 5917 |
| L BAND_L | 5362 | 5399 | 5436 | 5473 | 5510 | 5547 | 5584 | 5621 |
| U BAND_U | 5325 | 5348 | 5366 | 5384 | 5402 | 5420 | 5438 | 5456 |
| O BAND_O | 5474 | 5492 | 5510 | 5528 | 5546 | 5564 | 5582 | 5600 |
Frequencies in MHz; "—" is an unused slot. Power levels: 25 (value 25), 200 (value 200), 600 (value 600), 1W6 (value 1600), MAX (value 3000).
vtxtable bands 8
vtxtable channels 8
vtxtable band 1 BOSCAM_A A CUSTOM 5865 5845 5825 5805 5785 5765 5745 5725
vtxtable band 2 BOSCAM_B B CUSTOM 5733 5752 5771 5790 5809 5828 5847 5866
vtxtable band 3 BOSCAM_E E CUSTOM 5705 5685 5665 5645 5885 5905 5925 5945
vtxtable band 4 FATSHARK F CUSTOM 5740 5760 5780 5800 5820 5840 5860 5880
vtxtable band 5 RACEBAND R CUSTOM 5658 5695 5732 5769 5806 5843 5880 5917
vtxtable band 6 BAND_L L CUSTOM 5362 5399 5436 5473 5510 5547 5584 5621
vtxtable band 7 BAND_U U CUSTOM 5325 5348 5366 5384 5402 5420 5438 5456
vtxtable band 8 BAND_O O CUSTOM 5474 5492 5510 5528 5546 5564 5582 5600
vtxtable powerlevels 5
vtxtable powervalues 25 200 600 1600 3000
vtxtable powerlabels 25 200 600 1W6 MAX
saveSource: https://geprc.com/wp-content/uploads/2025/09/5.MATEN-5.8G-3W-VTX-PRO-IRC-Tramp104CH.txt — GEPRC's own CLI dump for the V2. Its eight live bands and its five power values are the first 3W PRO's; what makes this the 104CH part is the five bands the file publishes commented out - H (5653-5933), X (4990-5200), J (4884-5099), K (5960-6100) and Z (6002-6184) - each pasted in place of the O band: 13 x 8 = 104, and J's bottom and Z's top are the page's 4884-6184MHz. The file's own note says that through the Betaflight configurator only 64 channels can be adjusted, which is the eight bands below.
Transmitting is only legal on the frequencies and power your country allows; see VTX frequency bands.
Other transmitters in this band, side by side: Wideband 4.9-6.0 GHz FPV VTX compared; every manufacturer table in one place: VTX table library.
Choosing between systems? See analog vs DJI vs Walksnail vs HDZero.
Where this data comes from
Read 2026-09-24 off GEPRC's own site, the thirteenth VTX manufacturer catalogue read beside the US retail scrape and the second brand this catalogue carried no transmitter of at all. geprc.com is WooCommerce: /wp-json/wp/v2/product lists the whole catalogue and product_cat=211 ('Electronics', 114 SKUs) holds the transmitters, but the REST API's content field is only the description gallery - the labelled Specifications block is in the product page HTML, so every figure here was read off the page itself. Block lines: 'Output Power: 25mW/200mW/600mW/1600mW/3000mW/Pit mode', 'Frequency：4884-6184MHz', 'Channels: 104CH', 'Input Voltage: DC7-36V(2-8S Battery)', 'Mounting Hole Size：20x20mm(M2),25.5×25.5mm(M2)', 'Weight: 35.6g (VTX only)'. antenna_connector is 'MMCX / SMA': the block states 'Antenna Connector: MMCX, SMA' and the page sells an MMCX SKU and an SMA SKU at the same $59.99, with the dimension line giving each its own figure ('57.5×31.5×17.5mm(SMA) , 50×31.5×17.5mm(MMCX)'), and GEPRC's own spec image (2026/04 '2-1.jpg' in the page gallery, read 2026-10-20) prints the same line. Two hub versions of one radio are written as one ' / '-joined value, as on the AKK FX3 and RDQ Mach 3 pages (filled 2026-10-20, 248th burst; until then left empty under the props' mount rule). The V2 is a different radio from the 3W PRO above it, not a revision of the listing: 104 channels against 80, 35.6 g against 21.1 g, and a 25.5mm second pattern where the older board has 30.5mm.
