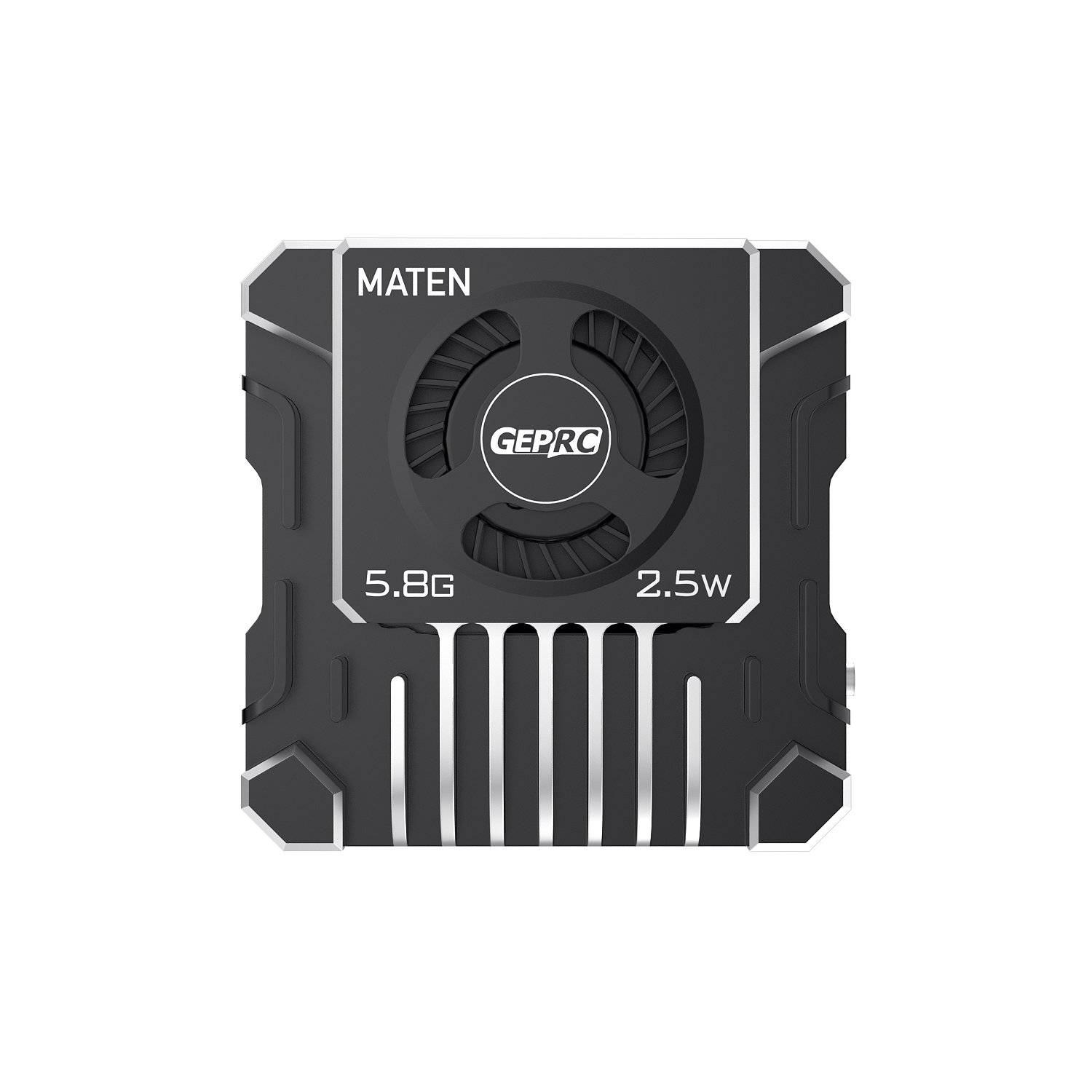

GEPRC MATEN 5.8G 2.5W VTX PRO
Of the 17 other Wideband 4.9-6.0 GHz analog video transmitters in our database, none has a lower maximum power than the MATEN 5.8G 2.5W VTX PRO (2500 mW, 34 dBm), 2 the same and 15 a higher one; the class median is 4500 mW. The MATEN 5.8G 2.5W VTX PRO steps through 25 / 200 / 600 / 1600 / 2500 mW, which is 14 / 23 / 28 / 32 / 34 dBm: the top level is 20 dB above the lowest, about 10.0x the free-space range on the same antennas.
GEPRC's own Betaflight VTX table is on this page: 8 bands of 8 channels, 5325–5945 MHz, 5 power levels, IRC Tramp. CLI commands and JSON file.
| System | analog |
|---|---|
| Max power | 2500 mW |
| Power levels | 25 / 200 / 600 / 1600 / 2500 mW |
| Frequency range | 4884-6184 MHz |
| Band | Wideband 4.9-6.0 GHz |
| Input voltage | 7-36V (2-8S) |
| Mounting | 20x20mm M2 / 30.5x30.5mm M2 |
| Channels | 80 |
| Antenna connector | MMCX |
| Weight | 20.0 g |
| Price (approx.) | 59.9 USD |
GEPRC MATEN 5.8G 2.5W VTX PRO VTX table for Betaflight
The band and channel frequencies and power levels as GEPRC publishes them for IRC Tramp control. Paste the CLI commands into Betaflight's CLI tab, or load the JSON file in Betaflight Configurator's Video Transmitter tab. How it works: setting up a VTX table in Betaflight.
| Band | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
|---|---|---|---|---|---|---|---|---|
| A BOSCAM_A | 5865 | 5845 | 5825 | 5805 | 5785 | 5765 | 5745 | 5725 |
| B BOSCAM_B | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 |
| E BOSCAM_E | 5705 | 5685 | 5665 | 5645 | 5885 | 5905 | 5925 | 5945 |
| F FATSHARK | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
| R RACEBAND | 5658 | 5695 | 5732 | 5769 | 5806 | 5843 | 5880 | 5917 |
| L BAND_L | 5362 | 5399 | 5436 | 5473 | 5510 | 5547 | 5584 | 5621 |
| U BAND_U | 5325 | 5348 | 5366 | 5384 | 5402 | 5420 | 5436 | 5456 |
| O BAND_O | 5474 | 5492 | 5510 | 5528 | 5546 | 5564 | 5582 | 5600 |
Frequencies in MHz; "—" is an unused slot. Power levels: 25 (value 25), 200 (value 200), 600 (value 600), 1W6 (value 1600), MAX (value 2500).
vtxtable bands 8
vtxtable channels 8
vtxtable band 1 BOSCAM_A A CUSTOM 5865 5845 5825 5805 5785 5765 5745 5725
vtxtable band 2 BOSCAM_B B CUSTOM 5733 5752 5771 5790 5809 5828 5847 5866
vtxtable band 3 BOSCAM_E E CUSTOM 5705 5685 5665 5645 5885 5905 5925 5945
vtxtable band 4 FATSHARK F CUSTOM 5740 5760 5780 5800 5820 5840 5860 5880
vtxtable band 5 RACEBAND R CUSTOM 5658 5695 5732 5769 5806 5843 5880 5917
vtxtable band 6 BAND_L L CUSTOM 5362 5399 5436 5473 5510 5547 5584 5621
vtxtable band 7 BAND_U U CUSTOM 5325 5348 5366 5384 5402 5420 5436 5456
vtxtable band 8 BAND_O O CUSTOM 5474 5492 5510 5528 5546 5564 5582 5600
vtxtable powerlevels 5
vtxtable powervalues 25 200 600 1600 2500
vtxtable powerlabels 25 200 600 1W6 MAX
saveSource: https://geprc.com/wp-content/uploads/2023/11/MATEN-5.8G-2.5W-VTX-PRO-IRC-Tramp.txt — GEPRC's own CLI dump - the file the manual's QR code resolves to - and every cell diffed against the frequency table its V1.3 manual prints twice (page 4 in Chinese, page 12 in English, the two grids identical). The manual's grid is nine bands; the dump's eight are the ones Betaflight can hold, and the file publishes H (5653-5933) and X (4990-5200) commented out, each to be pasted in place of band O - 8 live + 2 alternates x 8 is the 80CH the product page claims, while the manual's own spec line says 72CH for its nine printed bands and its footnote says a vtxtable takes 64. One cell of the manual disagrees with the file: band A CH4 is printed 5806 against the dump's 5805, inside a band whose every step is 20 MHz and which GEPRC's other dumps also print as 5805, so the dump is stored. Band U CH7 is 5436 in both sources here (the 3W PRO's file prints 5438 at the same slot). The five power values are the manual's 25mW/200mW/600mW/1600mW/2500mW output-power line; Pit mode is a button mode, not a level.
Transmitting is only legal on the frequencies and power your country allows; see VTX frequency bands.
Other transmitters in this band, side by side: Wideband 4.9-6.0 GHz FPV VTX compared; every manufacturer table in one place: VTX table library.
Choosing between systems? See analog vs DJI vs Walksnail vs HDZero.
Where this data comes from
Read 2026-09-24 off GEPRC's own site, the thirteenth VTX manufacturer catalogue read beside the US retail scrape and the second brand this catalogue carried no transmitter of at all. geprc.com is WooCommerce: /wp-json/wp/v2/product lists the whole catalogue and product_cat=211 ('Electronics', 114 SKUs) holds the transmitters, but the REST API's content field is only the description gallery - the labelled Specifications block is in the product page HTML, so every figure here was read off the page itself. Block lines: 'Output power: 25mW/200mW/600mW/1600mW/2500mW/Pit mode', 'Frequency: 4884-6184MHz', 'Channel: 80CH', 'Input voltage: DC7-36V（2-8S Battery）', 'Mounting hole: 20x20mm(M2),30.5×30.5mm(M2)', 'Antenna interface: MMCX', 'Weight: 20g', 'Size: 36.3×36.3×15.1mm'. mount_mm records the M2 the brand prints against both patterns, including the 30.5mm one where M3 is the usual thread - it is the page's own text and the prose above it repeats it. This page is the only one in the line that carries a changelog, and it is worth reading as a record of what the same SKU has been: channels 48 -> 72 on 2024-01-12, the red shell discontinued for a silver one on 2024-03-08, and the 4.9G X group plus direct frequency entry added on 2025-11-27 - which is why the spec line now says 80CH and starts at 4884 MHz. The two colour variations are priced identically, so price_usd is not a variant figure. Read again 2026-10-07 against two more GEPRC sources, for the VTX table: the V1.3 manual (uploads/2026/04/MATEN-5.8G-2.5W-VTX-PRO说明书V1.3.pdf) and the CLI dump its QR code resolves to (uploads/2023/11/...-IRC-Tramp.txt). Both confirm 'Output power 25mW/200mW/600mW/1600mW/2500mW/Pit mode', 'Input Voltage DC7-36V（2-8S Battery）', 'Mounting hole 20x20mm(M2)、30.5x30.5mm(M2)', 'Antenna MMCX', 'Weight 20g' and 'Dimension 36.3x36.3x15.1mm', and the manual adds 'Control protocol IRC Tramp' and 'Output Voltage 5V@600mA' (the camera rail). channels stays at the product page's 80, which the dump's own note repeats ('supports 80 channels'): that is the eight bands the file loads plus the H and X alternates it publishes commented out, 10 x 8. The manual contradicts it, printing '72CH' beside a nine-band grid that omits X and a footnote that a vtxtable takes only 64 - a maker disagreement about how many of its bands count, not about any frequency. frequency_range keeps the page's 4884-6184MHz, which is the tuning range of the direct-frequency entry added 2025-11-27 and wider than any band in the grid; the manual states no span.
