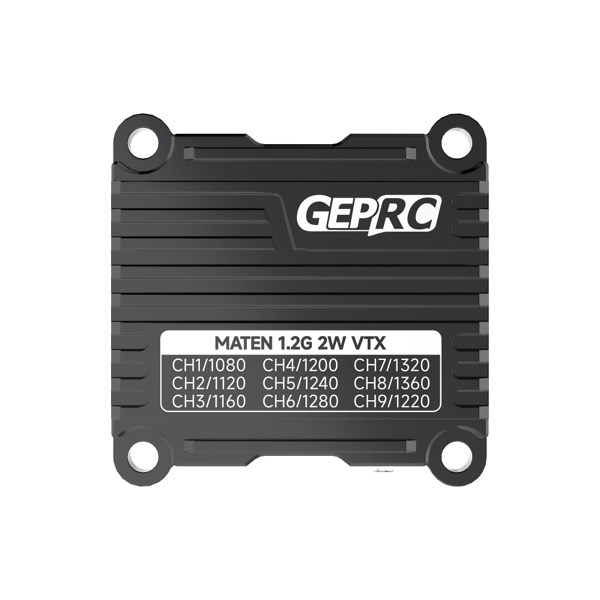

GEPRC MATEN 1.2G 2W VTX
Of the 10 other 1.2/1.3 GHz analog video transmitters in our database, 4 have a lower maximum power than the MATEN 1.2G 2W VTX (2000 mW, 33 dBm), 1 the same and 5 a higher one; the class median is 2000 mW. The MATEN 1.2G 2W VTX steps through 25 / 400 / 800 / 2000 mW, which is 14 / 26 / 29 / 33 dBm: the top level is 19 dB above the lowest, about 8.9x the free-space range on the same antennas.
GEPRC's own Betaflight VTX table is on this page: 1 band of 8 channels, 1080–1360 MHz, 4 power levels, IRC Tramp. CLI commands and JSON file.
| System | analog |
|---|---|
| Max power | 2000 mW |
| Power levels | 25 / 400 / 800 / 2000 mW |
| Frequency range | 1080-1360 MHz |
| Band | 1.2/1.3 GHz |
| Input voltage | 7-36V (2-8S) |
| Mounting | 30.5x30.5mm M3 |
| Channels | 9 |
| Antenna connector | MMCX |
| Weight | 14.5 g |
| Price (approx.) | 54.99 USD |
GEPRC MATEN 1.2G 2W VTX VTX table for Betaflight
The band and channel frequencies and power levels as GEPRC publishes them for IRC Tramp control. Paste the CLI commands into Betaflight's CLI tab, or load the JSON file in Betaflight Configurator's Video Transmitter tab. How it works: setting up a VTX table in Betaflight.
| Band | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
|---|---|---|---|---|---|---|---|---|
| A BAND_A | 1080 | 1120 | 1160 | 1200 | 1240 | 1280 | 1320 | 1360 |
Frequencies in MHz; "—" is an unused slot. Power levels: 25 (value 25), 400 (value 400), 800 (value 800), MAX (value 2000).
vtxtable bands 1
vtxtable channels 8
vtxtable band 1 BAND_A A CUSTOM 1080 1120 1160 1200 1240 1280 1320 1360
vtxtable powerlevels 4
vtxtable powervalues 25 400 800 2000
vtxtable powerlabels 25 400 800 MAX
saveSource: https://geprc.com/wp-content/uploads/2025/07/MATEN-1.2G-2W-VTX-IRC-Tramp.txt — GEPRC's own CLI dump. One band of eight channels, and its four power values are the product page's 25/400/800/2000mW line. The page's 'Channel Frequency' row prints a ninth frequency, 1220 MHz, that this one-band table has no slot for - a Betaflight band holds eight. An earlier dump (2023/12/MATEN-1.2G-2W-VTX-IRC-Tramp.txt) has the same eight frequencies and tops out at 1600 mW.
Transmitting is only legal on the frequencies and power your country allows; see VTX frequency bands.
Other transmitters in this band, side by side: 1.2-1.3 GHz FPV VTX compared; every manufacturer table in one place: VTX table library.
Choosing between systems? See analog vs DJI vs Walksnail vs HDZero.
Where this data comes from
Read 2026-09-24 off GEPRC's own site, the thirteenth VTX manufacturer catalogue read beside the US retail scrape and the second brand this catalogue carried no transmitter of at all. geprc.com is WooCommerce: /wp-json/wp/v2/product lists the whole catalogue and product_cat=211 ('Electronics', 114 SKUs) holds the transmitters, but the REST API's content field is only the description gallery - the labelled Specifications block is in the product page HTML, so every figure here was read off the page itself. Every field is a line of the block: 'Output power：25mW/400mW/800mW/2000mW/Pit mode', 'Frequency band：1080MHz-1360MHz', 'Channel customer：9', 'Input voltage：DC7-36V（2-8S Battery）', 'Mounting hole：30.5×30.5mm(M3)', 'Antenna interface：MMCX', 'Weight：14.5g（VTX only）'. The nine channel frequencies are printed out - 1080/1120/1160/1200/1240/1280/1320/1360/1220 MHz - with the ninth (1220) out of sequence at the end. Also stated: size 36.4x36.4x7.4mm, 5V@600mA output, IRC Tramp, PAL/NTSC, sh1.25 6pin cable, 50 ohm antenna port, frequency stability +-100kHz, frequency precision +-200kHz, S/N (Fo+-3MHz) >70dBc, operating temperature -10C to +60C. price_usd is the 'VTX' variation ($54.99); the same page's $5.99 variation is a spare antenna, not a configuration of the radio, which is why the page headlines a $5.99-$54.99 range.
