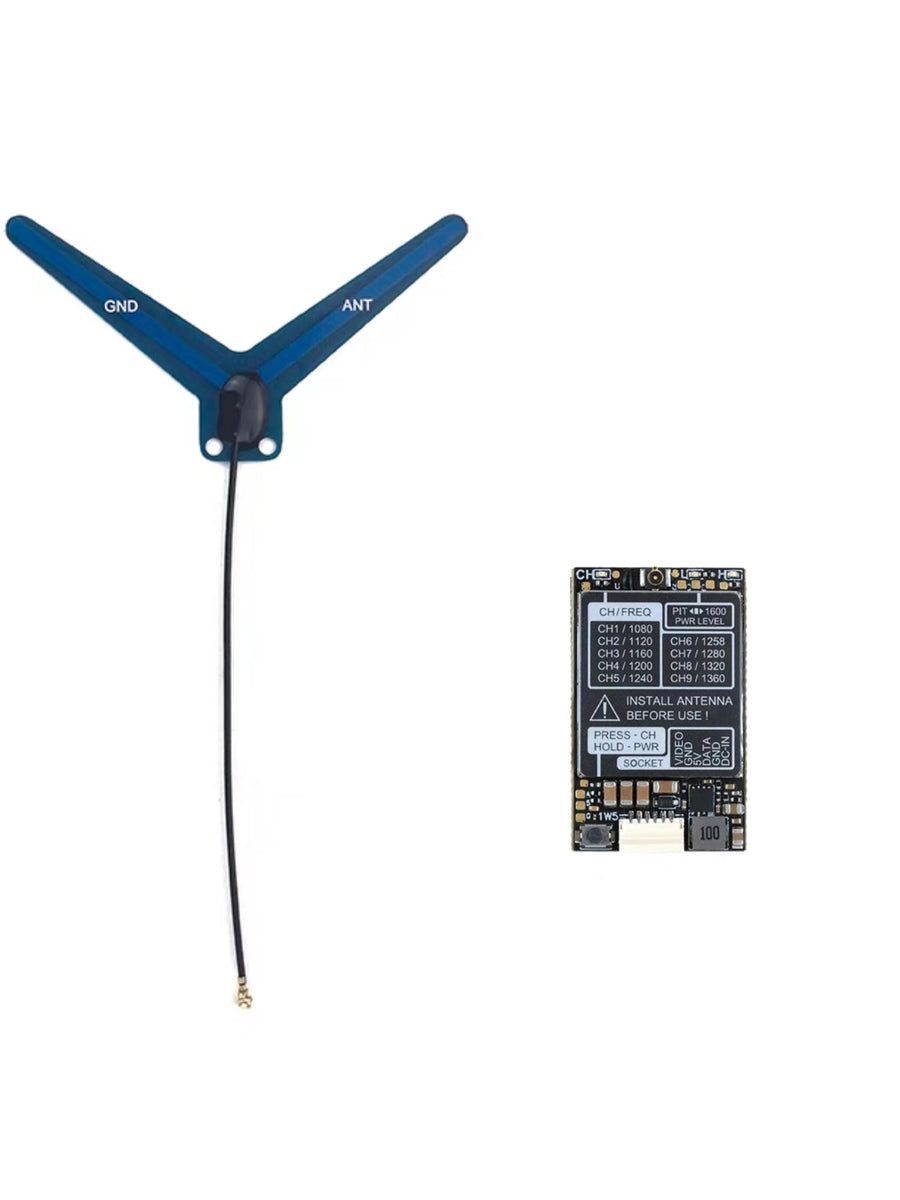

RUSHFPV 1.3GHz 1.6W VTX Module
Of the 10 other 1.2/1.3 GHz analog video transmitters in our database, 2 have a lower maximum power than the 1.3GHz 1.6W VTX Module (1600 mW, 32 dBm), 1 the same and 7 a higher one; the class median is 2000 mW.
RUSHFPV's own Betaflight VTX table is on this page: 2 bands of 8 channels (9 in use), 1080–1360 MHz, 4 power levels. CLI commands and JSON file.
| System | analog |
|---|---|
| Max power | 1600 mW |
| Frequency range | 1.08-1.36 GHz |
| Band | 1.2/1.3 GHz |
| Input voltage | 7-30V (3-6S) |
| Power draw | 230-500 mA at 12 V |
| Channels | 9 |
| Antenna connector | U.FL |
| Weight | 10.3 g |
RUSHFPV 1.3GHz 1.6W VTX Module VTX table for Betaflight
The band and channel frequencies and power levels as RUSHFPV publishes them. Paste the CLI commands into Betaflight's CLI tab, or load the JSON file in Betaflight Configurator's Video Transmitter tab. How it works: setting up a VTX table in Betaflight.
| Band | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
|---|---|---|---|---|---|---|---|---|
| A BOSCAM_A | 1080 | 1120 | 1160 | 1200 | 1240 | 1280 | 1320 | 1360 |
| B BOSCAM_B | 1258 | — | — | — | — | — | — | — |
Frequencies in MHz; "—" is an unused slot. Power levels: 200 (value 200), 500 (value 500), 800 (value 800), MAX (value 1600).
vtxtable bands 2
vtxtable channels 8
vtxtable band 1 BOSCAM_A A CUSTOM 1080 1120 1160 1200 1240 1280 1320 1360
vtxtable band 2 BOSCAM_B B CUSTOM 1258 0 0 0 0 0 0 0
vtxtable powerlevels 4
vtxtable powervalues 200 500 800 1600
vtxtable powerlabels 200 500 800 MAX
saveSource: https://drive.google.com/file/d/1gGm5VRTgoLEowNIrd8rSEbf-Lr_owB_n/view — Copied from the maker's Betaflight file 1G3_1W6_VTX_new_version_.json in the RushFPV VTX Table Drive folder linked from rushfpv.net's Download Center. Power values are milliwatts, the steps the module's own label prints; the file names no control protocol. The maker publishes a 'new version' and an 'old version' file; the new one is stored: BOSCAM_A 1080-1360 MHz in 40 MHz steps plus 1258 MHz alone in BOSCAM_B, the same nine channels the board's silkscreen prints, ladder 200/500/800/1600 (labelled MAX). The old-version file has the nine channels in a different order and only 25/1600.
Transmitting is only legal on the frequencies and power your country allows; see VTX frequency bands.
Other transmitters in this band, side by side: 1.2-1.3 GHz FPV VTX compared; every manufacturer table in one place: VTX table library.
Choosing between systems? See analog vs DJI vs Walksnail vs HDZero.
Where this data comes from
A bare board, not a cased brick. Its silkscreen (the listing's gallery photo 20240109112957.jpg) prints nine channels - 1080, 1120, 1160, 1200, 1240, 1258, 1280, 1320 and 1360 MHz - and 'PIT <-> 1600 PWR LEVEL' rather than named levels, and the maker's Betaflight table (1G3_1W6_VTX_new_version_.json) carries the same nine channels; channels follows those two. Rush's current sheet '1.3GHz analog video transmitter module' (V1.2; image 1G3-1600_V12.jpg in the listing body, read 2026-10-20 at native resolution) disagrees on both: 'Channel Frequency CH1-1080 CH2-1120 CH3-1160 CH4-1200 CH5-1240 CH6-1280 CH7-1320 CH8-1360' (no 1258) and 'Transmit Power 14dB (25mW) 23dB (200mW) 29dB (800mW) 32dB (1600mW)', with a board drawing that prints the same eight channels and P / 25 / 200 / 800 / 1600, while the Betaflight table's ladder is 200 / 500 / 800 / MAX. Three maker statements, apparently two board revisions; power_levels stays empty until it is known which one is sold. Band (1080-1360 MHz) and the 1600 mW maximum agree everywhere. input_voltage and weight_g are the V1.2 sheet's own, contradicted by nothing: 'Input Voltage DC 7-30V (3-6S Lipo)', 'Weight 10.3g (VTX)' ('Dimension 36mm x 22mm x 9mm'). U.FL (IPEX) antenna socket; six-pin VIDEO / GND / 5V / DATA / GND / DC-IN harness; the sheet sets it up through the DATA pin with the 'IRC Trump protocol'. Output above the lowest step is licensed spectrum in most countries; the module's own label carries that reminder. power_draw is the maker's own supply figure, 'Power Consumption: 230mA - 500mA @12V' on Rush's sheet '1.3GHz analog video transmitter module' (V1.2; image 1G3-1600_V12.jpg), read 2026-10-20 at native resolution off the listing's image (Shopify CDN through common.UA, listed by scraper/propose_vtx_power_draw.py --images); the sheet does not say which power level each end is; it is the VTX's input draw, not its RF output.
