ATOMRC 1.2G 1.6W Video Transmitter
Of the 10 other 1.2/1.3 GHz analog video transmitters in our database, 2 have a lower maximum power than the 1.2G 1.6W Video Transmitter (1600 mW, 32 dBm), 1 the same and 7 a higher one; the class median is 2000 mW. The 1.2G 1.6W Video Transmitter steps through 200 / 800 / 1600 mW, which is 23 / 29 / 32 dBm: the top level is 9 dB above the lowest, about 2.8x the free-space range on the same antennas.
| System | analog |
|---|---|
| Max power | 1600 mW |
| Power levels | 200 / 800 / 1600 mW |
| Frequency range | 1080-1360 MHz |
| Band | 1.2/1.3 GHz |
| Input voltage | 7-26V |
| Mounting | 30.5x30.5mm M3 |
| Channels | 9 |
| Weight | 10.0 g |
| Price (approx.) | 55.0 USD |
Other transmitters in this band, side by side: 1.2-1.3 GHz FPV VTX compared.
Choosing between systems? See analog vs DJI vs Walksnail vs HDZero.
Where this data comes from

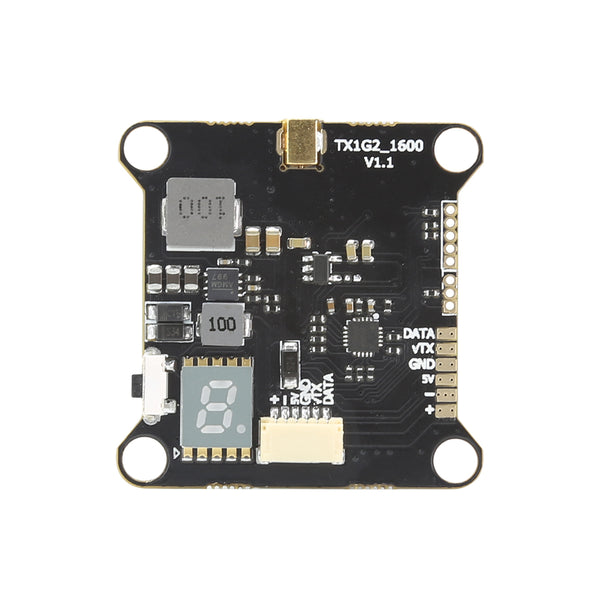

Read 2026-09-25 off the brand's own shop, the fifteenth VTX manufacturer catalogue read beside the US retail scrape. www.skyzonefpv.com and atomrc.com are two Shopify stores of one company: /products.json?limit=250 is the whole catalogue in one request on each, the two shops carry the same product_type taxonomy and each lists the other brand's transmitters, and the boards are silkscreened with the brand whose name is on the case rather than the one in the page title. Titled 'ATOMRC 1.2G 1.6W LED Video Transmitter' and sold without a model number; its board is silkscreened 'TX1G2_1600 V1.1', read at full resolution, which is the brand's own designation for it. The page's feature list states '1.2G Hz, better range and penetration', '200/800/1600mW adjustable power output', '7-26V Wide Range Voltage input', an LED segment display and Button/IRC control, and nothing else - no channel table, no weight, no mounting pattern, no connector. Re-read 2026-10-20 (burst 227): the description embeds one long image, 1.2G1.6Wvtx_table.jpg (1000x11045, read in full-resolution bands), that the 09-25 read did not open. Its 'Frequency Table' prints one row of nine channels, CH1-CH8 1080/1120/1160/1200/1240/1280/1320/1360M and CH9 1258M, so channels 9 and frequency_range 1080-1360 MHz. Its Specification table prints Input voltage '7~26V' (as the text), Mounting holes '30.5*30.5 M3', Weight '10g' and Size '36*36mm'. The same table's Power row reads '200mw/800mw/1200mw', against the title's 1.6W, the feature list's '200/800/1600mW', the image's own '200mW / 800mW / 1600mW' segment-display legend and its spectrum capture (1.884 W at 1360 MHz): four statements against one, so max_power_mw and power_levels_mw keep 1600 and that row is treated as a copy of the TX1200's (whose steps are 200/800/1200). The 'Frequency' row of that table prints '9', the channel count. The board photos show an MMCX jack and the packing list an MMCX-to-SMA pigtail, but no line states the connector, so antenna_connector stays empty.
