GEPRC MATEN 5.8G 2.5W VTX

Of the 81 other 5.8 GHz analog video transmitters in our database, 61 have a lower maximum power than the MATEN 5.8G 2.5W VTX (2500 mW, 34 dBm), 10 the same and 10 a higher one; the class median is 800 mW. The MATEN 5.8G 2.5W VTX steps through 25 / 200 / 600 / 1600 / 2500 mW, which is 14 / 23 / 28 / 32 / 34 dBm: the top level is 20 dB above the lowest, about 10.0x the free-space range on the same antennas.

GEPRC's own Betaflight VTX table is on this page: 8 bands of 8 channels, 5325–5945 MHz, 5 power levels, IRC Tramp. CLI commands and JSON file.

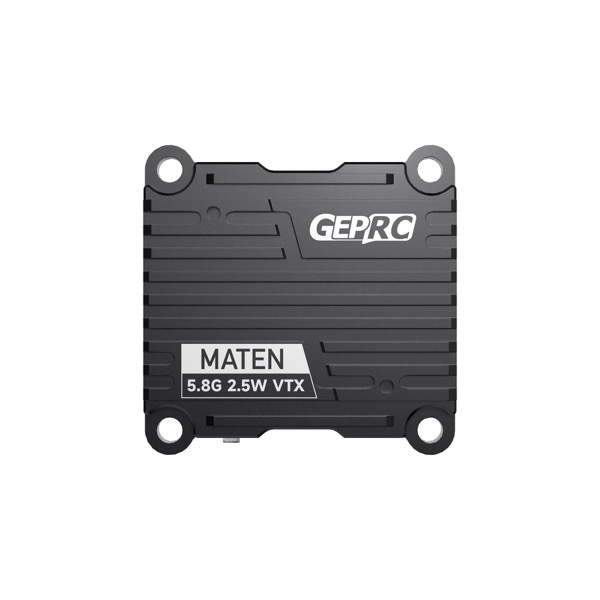

GEPRC MATEN 5.8G 2.5W VTX
Image: geprc.com
Systemanalog
Max power2500 mW
Power levels25 / 200 / 600 / 1600 / 2500 mW
Frequency range5325-5945 MHz
Band5.8 GHz
Input voltage7-36V (2-8S)
Mounting30.5x30.5mm M3
Channels72
Antenna connectorMMCX
Weight18.0 g
Price (approx.)52.99 USD

GEPRC MATEN 5.8G 2.5W VTX VTX table for Betaflight

The band and channel frequencies and power levels as GEPRC publishes them for IRC Tramp control. Paste the CLI commands into Betaflight's CLI tab, or load the JSON file in Betaflight Configurator's Video Transmitter tab. How it works: setting up a VTX table in Betaflight.

vtxtable.json

Band12345678
A BOSCAM_A58655845582558055785576557455725
B BOSCAM_B57335752577157905809582858475866
E BOSCAM_E57055685566556455885590559255945
F FATSHARK57405760578058005820584058605880
R RACEBAND56585695573257695806584358805917
L BAND_L53625399543654735510554755845621
U BAND_U53255348536653845402542054365456
O BAND_O54745492551055285546556455825600

Frequencies in MHz; "—" is an unused slot. Power levels: 25 (value 25), 200 (value 200), 600 (value 600), 1W6 (value 1600), MAX (value 2500).

vtxtable bands 8
vtxtable channels 8
vtxtable band 1 BOSCAM_A A CUSTOM 5865 5845 5825 5805 5785 5765 5745 5725
vtxtable band 2 BOSCAM_B B CUSTOM 5733 5752 5771 5790 5809 5828 5847 5866
vtxtable band 3 BOSCAM_E E CUSTOM 5705 5685 5665 5645 5885 5905 5925 5945
vtxtable band 4 FATSHARK F CUSTOM 5740 5760 5780 5800 5820 5840 5860 5880
vtxtable band 5 RACEBAND R CUSTOM 5658 5695 5732 5769 5806 5843 5880 5917
vtxtable band 6 BAND_L L CUSTOM 5362 5399 5436 5473 5510 5547 5584 5621
vtxtable band 7 BAND_U U CUSTOM 5325 5348 5366 5384 5402 5420 5436 5456
vtxtable band 8 BAND_O O CUSTOM 5474 5492 5510 5528 5546 5564 5582 5600
vtxtable powerlevels 5
vtxtable powervalues 25 200 600 1600 2500
vtxtable powerlabels 25 200 600 1W6 MAX
save

Source: https://geprc.com/wp-content/uploads/2025/07/MATEN-5.8G-2.5W-VTX-IRC-Tramp.txt — GEPRC's own CLI dump, every cell diffed against the frequency table its V1.0 manual prints twice (page 4 in Chinese, page 12 in English, the two grids identical). The file declares eight bands and prints nine lines, band 8 twice: its own note says to delete band O and paste the second line to run band H, so the eight stored here are the ones it loads and H (5653-5933) is published commented out in O's place. Nine bands x 8 is the 72CH the manual's spec line and the product page both state, and the manual's footnote adds that a vtxtable takes only 64. One cell of the manual disagrees with the file: band A CH4 is printed 5806 against the dump's 5805, inside a band whose every step is 20 MHz and which GEPRC's other dumps also print as 5805, so the dump is stored - the same typo the 2.5W PRO's manual carries at the same slot. The five power values are stated three times over: the dump's powervalues, the manual's output-power line and its red-LED button table; Pit mode is a button mode, not a level.

Transmitting is only legal on the frequencies and power your country allows; see VTX frequency bands.

Every manufacturer table in the database, with one archive of all the files: VTX table library.

Choosing between systems? See analog vs DJI vs Walksnail vs HDZero.

Where this data comes from

Read 2026-09-24 off GEPRC's own site, the thirteenth VTX manufacturer catalogue read beside the US retail scrape and the second brand this catalogue carried no transmitter of at all. geprc.com is WooCommerce: /wp-json/wp/v2/product lists the whole catalogue and product_cat=211 ('Electronics', 114 SKUs) holds the transmitters, but the REST API's content field is only the description gallery - the labelled Specifications block is in the product page HTML, so every figure here was read off the page itself. Block lines: 'Output power：25mW/200mW/600mW/1600mW/2500mW/Pit mode', 'Frequency：5.8G', 'Channel：72CH', 'Input voltage：DC7-36V（2-8S Battery）', 'Mounting hole：30.5×30.5mm(M3)', 'Antenna interface：MMCX', 'Weight：18g', 'Dimension：36.4×36.4×7.9mm'. The same board as the 1.6W model above - identical size, mount, channel count and connector, half a gram apart - with one more power step. frequency_range holds the class label for the same reason: the page states '5.8G' and nothing narrower. Read again 2026-10-07 against two more GEPRC sources, for the VTX table: the V1.0 manual (uploads/2026/04/MATEN-5.8G-2.5W-VTX-说明书_V1.0.pdf) and the CLI dump (uploads/2025/07/...-IRC-Tramp.txt, byte-identical to the 2024/03 and 2025/03 copies). The manual's spec block (page 9) confirms every figure here - 'Output power 25mW/200mW/600mW/1600mW/2500mW/Pit mode', 'Input Voltage DC7-36V（2-8S Battery）', 'Frequency 5.8G', 'Channel 72CH', 'Mounting hole 30.5x30.5mm(M3)', MMCX, 'Weight 18g' - and adds 'Control protocol IRC Tramp' and 'Output Voltage 5V@600mA' (the camera rail); it states no dimension, so the page's 36.4x36.4x7.9mm stands alone. channels stays 72: the manual prints nine eight-channel bands (A B E F R L U O H) and its spec line says 72CH, which is that grid, and its footnote adds that a Betaflight vtxtable holds only 64 - the dump therefore loads eight of the nine and tells the reader to paste H in place of O. 5.8G is still the only span the brand states. frequency_range is the edges of GEPRC's own nine-band CLI dump (72CH, the grid its V1.0 manual prints), U1 5325 .. E8 5945 MHz; the commented-out H band (5653-5933) lies inside them.
