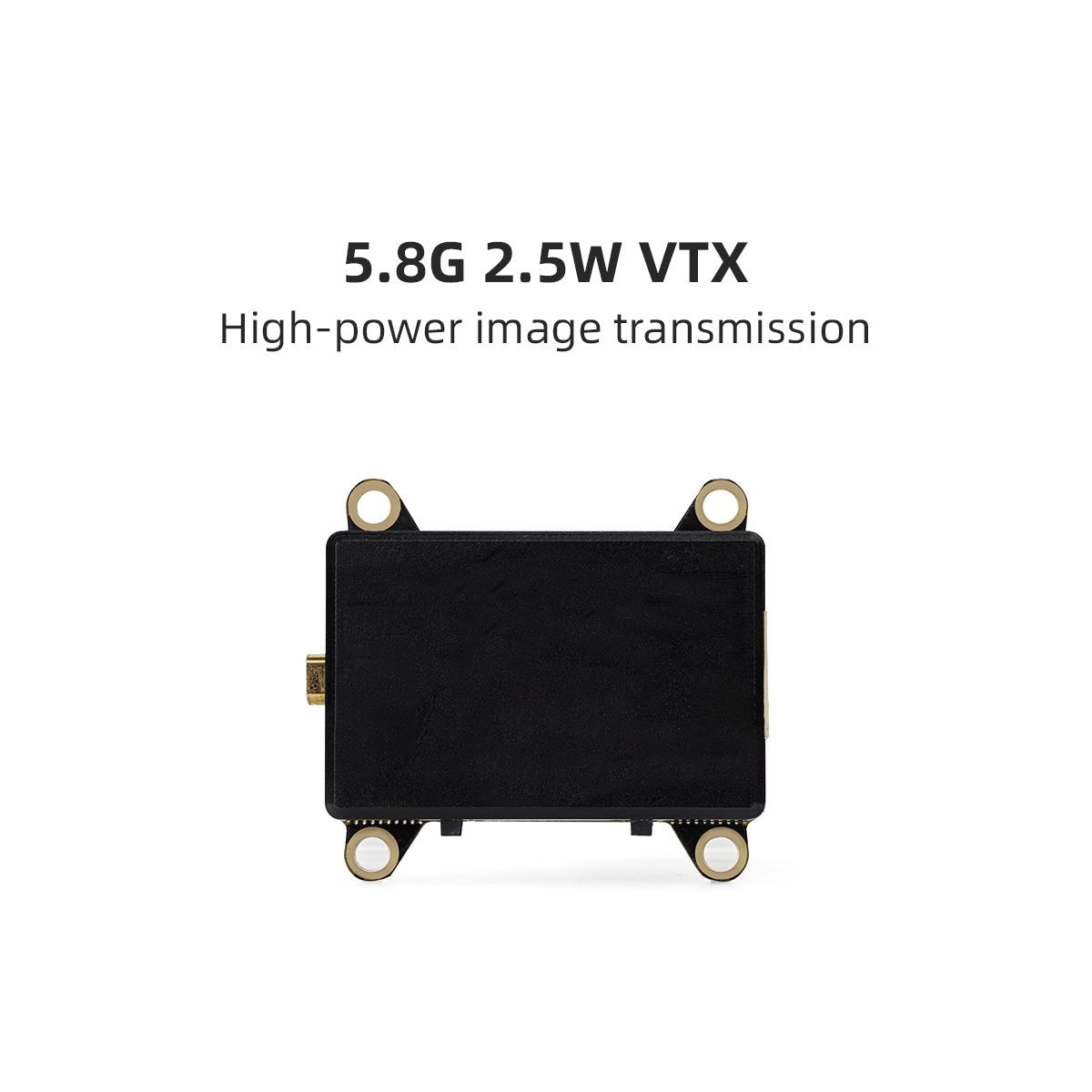

HGLRC 5.8G 2.5W VTX
Of the 81 other 5.8 GHz analog video transmitters in our database, 61 have a lower maximum power than the 5.8G 2.5W VTX (2500 mW, 34 dBm), 10 the same and 10 a higher one; the class median is 800 mW. The 5.8G 2.5W VTX steps through 25 / 200 / 800 / 1600 / 2500 mW, which is 14 / 23 / 29 / 32 / 34 dBm: the top level is 20 dB above the lowest, about 10.0x the free-space range on the same antennas.
| System | analog |
|---|---|
| Max power | 2500 mW |
| Power levels | 25 / 200 / 800 / 1600 / 2500 mW |
| Frequency range | 5.8 GHz |
| Input voltage | 7-26V |
| Mounting | 30.5x30.5mm M3 |
| Channels | 40 |
| Antenna connector | MMCX |
| Weight | 19.6 g |
Choosing between systems? See analog vs DJI vs Walksnail vs HDZero.
Where this data comes from
HGLRC's own labelled block, printed identically in the page text and in the brand's Product parameters graphic: 'Product name: 5.8G 2.5W VTX, Support voltage: DC 7-26V (2-6S), BEC: 5V/800mA, Antenna interface: MMCX, Cable interface: GH1.25 6P, Video format: PAL/NTSC, Standard 40 channels: A/B/E/F/R frequency group, Protocol: TBS SmartAudio, Output power: PIT/25/200/800/1600mW/2500mW, Installation hole position: 30.5*30.5*M3, Dimensions (L*W*H): 40mm x 35mm x 11.8mm, Weight: 19.6g', with a dBm equivalent per step (25mW/13.95, 200mW/23.01, 800mW/29.03, 1.6W/32.04, 2.5W/33.98 dBm). power_levels_mw drops the PIT step, which has no figure. weight_g is the module's own: the dimension drawing prints 'Weight: 19.6g' beside 'Total weight: 34.8g' for the boxed set. The shop's own URL calls this part 'zeus-vtx-2-5w' and the title omits any model name at all, while the brand's graphic, the spec block and the case label all say 5.8G 2.5W VTX and no Zeus mark appears on the board; the block's name is the one used here.
