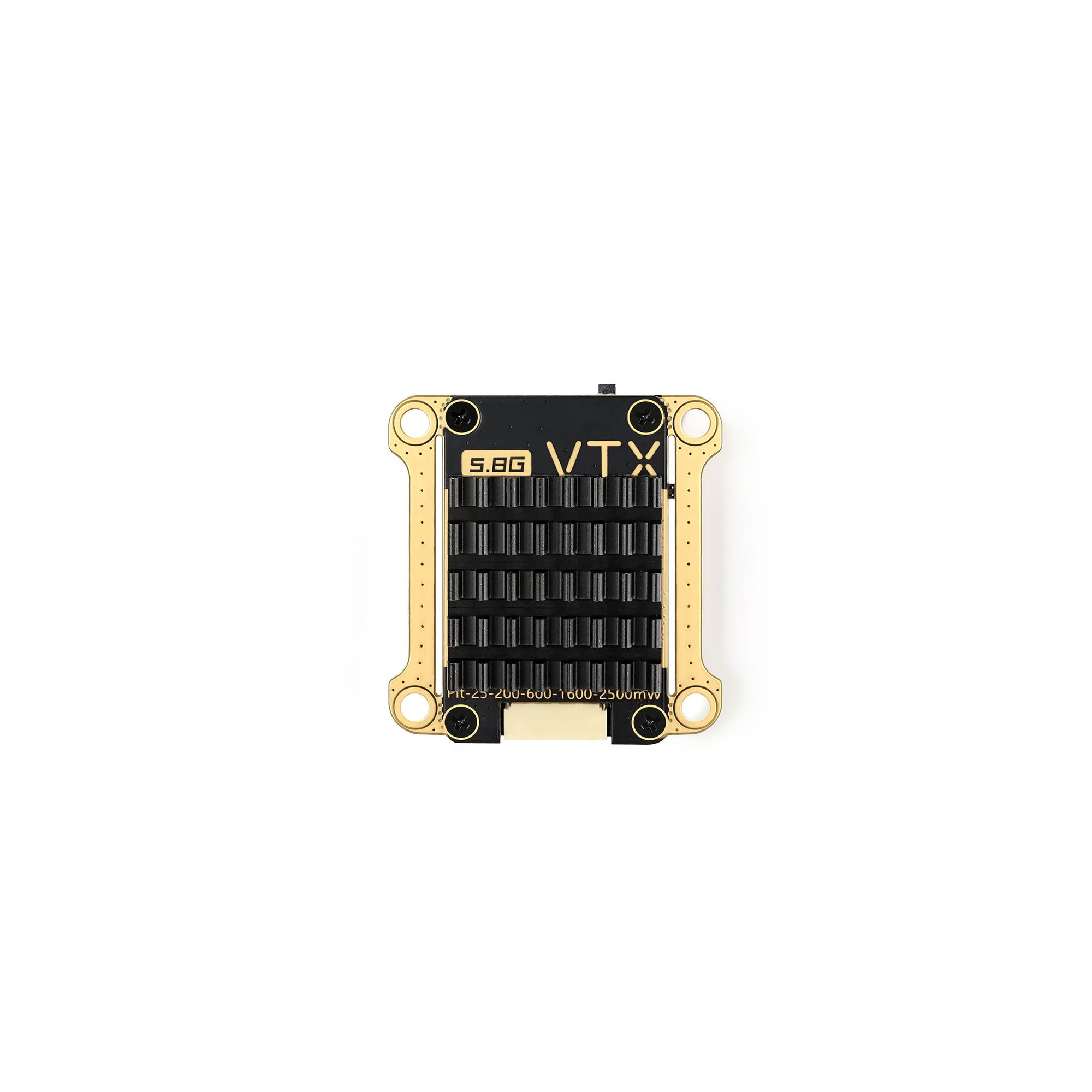

GEPRC RAD VTX 5.8G 2.5W
Of the 81 other 5.8 GHz analog video transmitters in our database, 61 have a lower maximum power than the RAD VTX 5.8G 2.5W (2500 mW, 34 dBm), 10 the same and 10 a higher one; the class median is 800 mW. The RAD VTX 5.8G 2.5W steps through 25 / 200 / 600 / 1600 / 2500 mW, which is 14 / 23 / 28 / 32 / 34 dBm: the top level is 20 dB above the lowest, about 10.0x the free-space range on the same antennas.
GEPRC's own Betaflight VTX table is on this page: 5 bands of 8 channels, 5658–5917 MHz, 5 power levels, IRC Tramp. CLI commands and JSON file.
| System | analog |
|---|---|
| Max power | 2500 mW |
| Power levels | 25 / 200 / 600 / 1600 / 2500 mW |
| Frequency range | 5.8 GHz |
| Input voltage | 7-36V (2-8S) |
| Mounting | 30.5x30.5mm M3 |
| Channels | 40 |
| Antenna connector | MMCX |
| Weight | 15.0 g |
| Price (approx.) | 49.99 USD |
GEPRC RAD VTX 5.8G 2.5W VTX table for Betaflight
The band and channel frequencies and power levels as GEPRC publishes them for IRC Tramp control. Paste the CLI commands into Betaflight's CLI tab, or load the JSON file in Betaflight Configurator's Video Transmitter tab. How it works: setting up a VTX table in Betaflight.
| Band | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
|---|---|---|---|---|---|---|---|---|
| A BOSCAM_A | 5865 | 5845 | 5825 | 5805 | 5785 | 5765 | 5745 | 5725 |
| B BOSCAM_B | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 |
| E BOSCAM_E | 5705 | 5685 | 5665 | 5665 | 5885 | 5905 | 5905 | 5905 |
| F FATSHARK | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
| R RACEBAND | 5658 | 5695 | 5732 | 5769 | 5806 | 5843 | 5880 | 5917 |
Frequencies in MHz; "—" is an unused slot. Power levels: 25 (value 25), 200 (value 200), 600 (value 600), 1k6 (value 1600), 2k5 (value 2500).
vtxtable bands 5
vtxtable channels 8
vtxtable band 1 BOSCAM_A A CUSTOM 5865 5845 5825 5805 5785 5765 5745 5725
vtxtable band 2 BOSCAM_B B CUSTOM 5733 5752 5771 5790 5809 5828 5847 5866
vtxtable band 3 BOSCAM_E E CUSTOM 5705 5685 5665 5665 5885 5905 5905 5905
vtxtable band 4 FATSHARK F CUSTOM 5740 5760 5780 5800 5820 5840 5860 5880
vtxtable band 5 RACEBAND R CUSTOM 5658 5695 5732 5769 5806 5843 5880 5917
vtxtable powerlevels 5
vtxtable powervalues 25 200 600 1600 2500
vtxtable powerlabels 25 200 600 1k6 2k5
saveSource: https://geprc.com/wp-content/uploads/2024/06/RAD-VTX-5.8G-2.5W.txt — GEPRC's own CLI dump, the newer of two it publishes for this transmitter: five bands and 40 channels, which is the 40CH general frequency group the product page states, with the page's five power levels. An earlier dump (2023/10/RAD-VTX-5.8G-2.5W-IRC-Tramp.txt) carries the same five bands plus an L band, 48 channels. Band names are stored as Betaflight keeps them, eight characters, where the file writes FATSHARK_F and RACEBAND_R.
Transmitting is only legal on the frequencies and power your country allows; see VTX frequency bands.
Every manufacturer table in the database, with one archive of all the files: VTX table library.
Choosing between systems? See analog vs DJI vs Walksnail vs HDZero.
Where this data comes from
Read 2026-09-24 off GEPRC's own site, the thirteenth VTX manufacturer catalogue read beside the US retail scrape and the second brand this catalogue carried no transmitter of at all. geprc.com is WooCommerce: /wp-json/wp/v2/product lists the whole catalogue and product_cat=211 ('Electronics', 114 SKUs) holds the transmitters, but the REST API's content field is only the description gallery - the labelled Specifications block is in the product page HTML, so every figure here was read off the page itself. Block lines: 'Output power: PitMode/25mW/200mW/600mW/1600mW/2500mW', 'Input voltage: DC7-36V（2-8S Battery）', 'Mounting holes: 30.5mm x 30.5mm(M3)', 'Antenna interface: MMCX', 'Size: 36.5mm x 36.5mm x 12mm', 'Weight: 15g (without wire)', 'Input Impedance: 75Ω', 'Protocol: IRC Tramp', 'Microphone: Built-in microphone'. channels takes the brand's general group: the block prints three, 'general regional frequency group (40CH), US FCC frequency group (37CH), European EU frequency group (26CH)', and the smaller two are what the same radio is allowed to use in those regions, not what it has. The weight and size lines arrive one digit per HTML span on this page ('Weight: 1' + '5' + 'g'), which is a page-builder artefact and not two figures. frequency_range is the title's class label; the page states no span.
