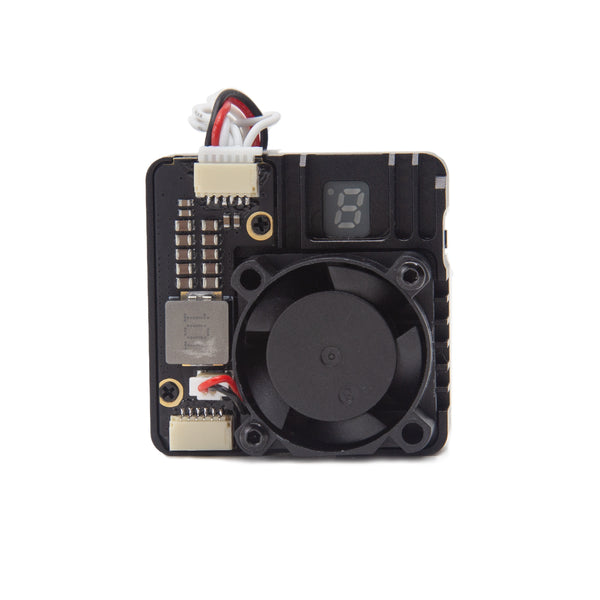

Skyzone TX2501 CNC 5.8G 2.5W VTX
Of the 81 other 5.8 GHz analog video transmitters in our database, 61 have a lower maximum power than the TX2501 CNC 5.8G 2.5W VTX (2500 mW, 34 dBm), 10 the same and 10 a higher one; the class median is 800 mW. The TX2501 CNC 5.8G 2.5W VTX steps through 25 / 800 / 1600 / 2500 mW, which is 14 / 29 / 32 / 34 dBm: the top level is 20 dB above the lowest, about 10.0x the free-space range on the same antennas.
Skyzone's own Betaflight VTX table is on this page: 7 bands of 8 channels, 4990–5945 MHz, 4 power levels, IRC Tramp. CLI commands and JSON file.
| System | analog |
|---|---|
| Max power | 2500 mW |
| Power levels | 25 / 800 / 1600 / 2500 mW |
| Frequency range | 4990-5945 MHz |
| Band | 5.8 GHz |
| Channels | 56 |
| Antenna connector | MMCX |
| Price (approx.) | 56.5 USD |
Skyzone TX2501 CNC 5.8G 2.5W VTX VTX table for Betaflight
The band and channel frequencies and power levels as Skyzone publishes them for IRC Tramp control. Paste the CLI commands into Betaflight's CLI tab, or load the JSON file in Betaflight Configurator's Video Transmitter tab. How it works: setting up a VTX table in Betaflight.
| Band | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
|---|---|---|---|---|---|---|---|---|
| A BAND_A | 5865 | 5845 | 5825 | 5805 | 5785 | 5765 | 5745 | 5725 |
| B BAND_B | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 |
| E BAND_E | 5705 | 5685 | 5665 | 5645 | 5885 | 5905 | 5925 | 5945 |
| F AIRWAVE | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
| R RACEBAND | 5658 | 5695 | 5732 | 5769 | 5806 | 5843 | 5880 | 5917 |
| L LOWRACE | 5362 | 5399 | 5436 | 5473 | 5510 | 5547 | 5584 | 5621 |
| X BAND_X | 4990 | 5020 | 5050 | 5080 | 5110 | 5140 | 5170 | 5200 |
Frequencies in MHz; "—" is an unused slot. Power levels: 25 (value 25), 800 (value 800), 1W6 (value 1600), 2W5 (value 2500).
vtxtable bands 7
vtxtable channels 8
vtxtable band 1 BAND_A A CUSTOM 5865 5845 5825 5805 5785 5765 5745 5725
vtxtable band 2 BAND_B B CUSTOM 5733 5752 5771 5790 5809 5828 5847 5866
vtxtable band 3 BAND_E E CUSTOM 5705 5685 5665 5645 5885 5905 5925 5945
vtxtable band 4 AIRWAVE F CUSTOM 5740 5760 5780 5800 5820 5840 5860 5880
vtxtable band 5 RACEBAND R CUSTOM 5658 5695 5732 5769 5806 5843 5880 5917
vtxtable band 6 LOWRACE L CUSTOM 5362 5399 5436 5473 5510 5547 5584 5621
vtxtable band 7 BAND_X X CUSTOM 4990 5020 5050 5080 5110 5140 5170 5200
vtxtable powerlevels 4
vtxtable powervalues 25 800 1600 2500
vtxtable powerlabels 25 800 1W6 2W5
saveSource: https://cdn.shopifycdn.net/s/files/1/0597/9668/4956/files/TX2501_240111.pdf — Grid from the TX2501 manual's Frequency Table (TX2501_240111.pdf, one page); band names as the maker's own Betaflight file prints them (https://cdn.shopify.com/s/files/1/0597/9668/4956/files/TX2500_TX2501_vtx_table_25mw_2500mw_ch_ABEFRLX_230601.json, linked from the TX2501 page). The file and the manual agree on 55 of 56 cells: the file prints B5 as 5999 inside a ladder reading 5790, 5809, 5828, the manual 5809. Power: the manual, the product page and the file's own name state 25/800/1600/2500 mW; the file labels its four levels 025 / 1.2 / 2.0 / 2.5 with values 1-4. The manual calls the control IRC (Tramp), where Betaflight sends milliwatts, so the values stored are the manual's mW figures. The manual also prints an X-band output curve (1 W at 4990 MHz rising to 2.5 W at 5200 MHz) that no table slot carries. The CNC page sells the same TX2501 in a CNC case: same text, same 56CH 4990-5945 and the same 25/800/1600/2500 ladder.
Transmitting is only legal on the frequencies and power your country allows; see VTX frequency bands.
Every manufacturer table in the database, with one archive of all the files: VTX table library.
Choosing between systems? See analog vs DJI vs Walksnail vs HDZero.
Where this data comes from
Read 2026-09-25 off the brand's own shop, the fifteenth VTX manufacturer catalogue read beside the US retail scrape. www.skyzonefpv.com and atomrc.com are two Shopify stores of one company: /products.json?limit=250 is the whole catalogue in one request on each, the two shops carry the same product_type taxonomy and each lists the other brand's transmitters, and the boards are silkscreened with the brand whose name is on the case rather than the one in the page title. The CNC-case version of the TX2501, with fan. Its own page states '25/800/1600/2500mW adjustable power output', 'MMCX Antenna connector' and 'Allow use customized frequency 1Mhz by 1 Mhz from 4990~5945', which is where the tuning span here comes from; the 56 channels are the 7 bands of 8 the TX2501 manual prints. input_voltage is empty on a published page because the brand states it twice and differently: the page's feature list says '7-26V Wide Range Voltage input' and this model's own case, photographed on the VT5850 and VT6550 product pages and read at full resolution, is silkscreened '9-26V / GND / 5VOUT / GND / VTX / IRC' beside 'Tx2501 CNC 5.8G 2.5W VTX'. One statement against one publishes neither. The brand annotates this case 38.8 x 38.6 x 22.5 mm in one of the page's own photographs, which is a body and not a mounting pattern, so mount_mm stays empty. The listing 'SKYZONE TX2501 CNC VTX' at /products/skyzone-tx2501-cnc6-vtx is a second listing of this same radio at a different price ($75.00), not a second product: same text, same images, same 4990~5945 statement.
