Skyzone TX2501
Of the 81 other 5.8 GHz analog video transmitters in our database, 61 have a lower maximum power than the TX2501 (2500 mW, 34 dBm), 10 the same and 10 a higher one; the class median is 800 mW. The TX2501 steps through 25 / 800 / 1600 / 2500 mW, which is 14 / 29 / 32 / 34 dBm: the top level is 20 dB above the lowest, about 10.0x the free-space range on the same antennas.
Skyzone's own Betaflight VTX table is on this page: 7 bands of 8 channels, 4990–5945 MHz, 4 power levels, IRC Tramp. CLI commands and JSON file.
| System | analog |
|---|---|
| Max power | 2500 mW |
| Power levels | 25 / 800 / 1600 / 2500 mW |
| Frequency range | 4990-5945 MHz |
| Band | 5.8 GHz |
| Input voltage | 7-26V |
| Channels | 56 |
| Price (approx.) | 58.0 USD |
Skyzone TX2501 VTX table for Betaflight
The band and channel frequencies and power levels as Skyzone publishes them for IRC Tramp control. Paste the CLI commands into Betaflight's CLI tab, or load the JSON file in Betaflight Configurator's Video Transmitter tab. How it works: setting up a VTX table in Betaflight.
| Band | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
|---|---|---|---|---|---|---|---|---|
| A BAND_A | 5865 | 5845 | 5825 | 5805 | 5785 | 5765 | 5745 | 5725 |
| B BAND_B | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 |
| E BAND_E | 5705 | 5685 | 5665 | 5645 | 5885 | 5905 | 5925 | 5945 |
| F AIRWAVE | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
| R RACEBAND | 5658 | 5695 | 5732 | 5769 | 5806 | 5843 | 5880 | 5917 |
| L LOWRACE | 5362 | 5399 | 5436 | 5473 | 5510 | 5547 | 5584 | 5621 |
| X BAND_X | 4990 | 5020 | 5050 | 5080 | 5110 | 5140 | 5170 | 5200 |
Frequencies in MHz; "—" is an unused slot. Power levels: 25 (value 25), 800 (value 800), 1W6 (value 1600), 2W5 (value 2500).
vtxtable bands 7
vtxtable channels 8
vtxtable band 1 BAND_A A CUSTOM 5865 5845 5825 5805 5785 5765 5745 5725
vtxtable band 2 BAND_B B CUSTOM 5733 5752 5771 5790 5809 5828 5847 5866
vtxtable band 3 BAND_E E CUSTOM 5705 5685 5665 5645 5885 5905 5925 5945
vtxtable band 4 AIRWAVE F CUSTOM 5740 5760 5780 5800 5820 5840 5860 5880
vtxtable band 5 RACEBAND R CUSTOM 5658 5695 5732 5769 5806 5843 5880 5917
vtxtable band 6 LOWRACE L CUSTOM 5362 5399 5436 5473 5510 5547 5584 5621
vtxtable band 7 BAND_X X CUSTOM 4990 5020 5050 5080 5110 5140 5170 5200
vtxtable powerlevels 4
vtxtable powervalues 25 800 1600 2500
vtxtable powerlabels 25 800 1W6 2W5
saveSource: https://cdn.shopifycdn.net/s/files/1/0597/9668/4956/files/TX2501_240111.pdf — Grid from the TX2501 manual's Frequency Table (TX2501_240111.pdf, one page); band names as the maker's own Betaflight file prints them (https://cdn.shopify.com/s/files/1/0597/9668/4956/files/TX2500_TX2501_vtx_table_25mw_2500mw_ch_ABEFRLX_230601.json, linked from the TX2501 page). The file and the manual agree on 55 of 56 cells: the file prints B5 as 5999 inside a ladder reading 5790, 5809, 5828, the manual 5809. Power: the manual, the product page and the file's own name state 25/800/1600/2500 mW; the file labels its four levels 025 / 1.2 / 2.0 / 2.5 with values 1-4. The manual calls the control IRC (Tramp), where Betaflight sends milliwatts, so the values stored are the manual's mW figures. The manual also prints an X-band output curve (1 W at 4990 MHz rising to 2.5 W at 5200 MHz) that no table slot carries.
Transmitting is only legal on the frequencies and power your country allows; see VTX frequency bands.
Every manufacturer table in the database, with one archive of all the files: VTX table library.
Choosing between systems? See analog vs DJI vs Walksnail vs HDZero.
Where this data comes from

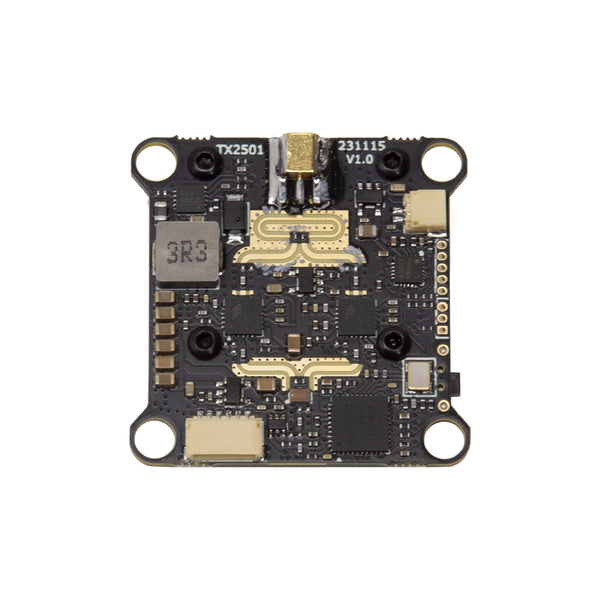

Read 2026-09-25 off the brand's own shop, the fifteenth VTX manufacturer catalogue read beside the US retail scrape. www.skyzonefpv.com and atomrc.com are two Shopify stores of one company: /products.json?limit=250 is the whole catalogue in one request on each, the two shops carry the same product_type taxonomy and each lists the other brand's transmitters, and the boards are silkscreened with the brand whose name is on the case rather than the one in the page title. This is the heat-sink TX2501, the version without the CNC case and fan; its board is silkscreened 'TX2501 231115 V1.0'. The page's feature list says '800/1600/2500mW adjustable power output' and 7-26V input; the brand's own one-page user manual, linked from the same page, says '25/800/1600/2500mW adjustable power output' over the same 7-26V and prints the frequency table this field holds: 7 bands (A B E F R L X) of 8 channels, 4990-5945 MHz, with X band running 4990-5200 MHz. The manual is the document that enumerates the steps, so power_levels_mw takes its four; both agree on the 2500 mW maximum. The page also links a Betaflight VTX-table JSON the brand named TX2500_TX2501_...: its band and channel list matches the manual except for one entry - band B CH5 reads 5999 MHz where the manual prints 5809 - so the config file's span is a typo and the manual's is what is recorded here. Its power labels ('025', '1.2', '2.0', '2.5') are Betaflight's three-character display strings and not a spec. One of the page's four images is a spectrum-analyser capture (Agilent, 'C:\TX2501.STA file loaded') reading 3.229 W at 5.918 GHz; that is a measurement of one unit at one channel, not a rated figure, and nothing was taken from it. The brand states no weight, mounting pattern or antenna connector for this version.
