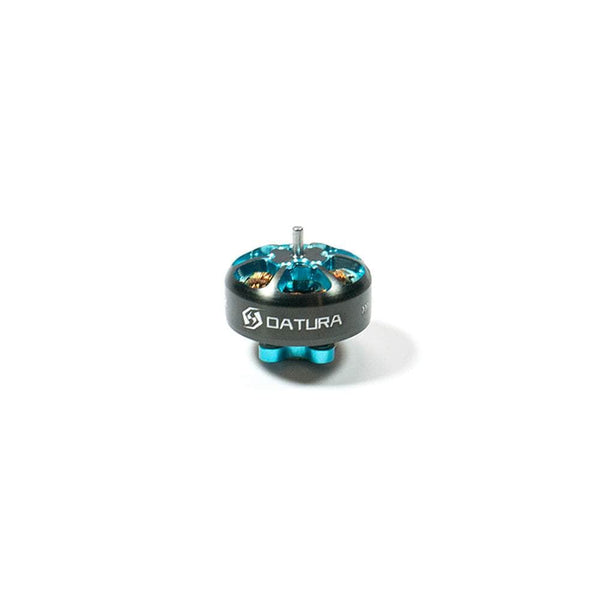

Foxeer Datura 1404

Foxeer Datura 1404
Image: racedayquads.com
Stator1404
KV options3850, 4533
Weight9.0 g
Shaft1.5mm
Max cells3-4S (3850KV) / 2-3S (4533KV)
Configuration9N12P
Dimensions19.2x16.9 mm
Mount9x9mm
Winding resistance240 (3850KV) / 140 (4533KV) mOhm
Max thrust423 g
Price (approx.)17.99 USD

At 9 g it is 0.5 g lighter than average across the 11 1404-class motors in our database (avg 9.5 g).

Thrust data (Foxeer bench test)

KVPropBatteryThrottleCurrentRPMThrustEfficiency
3850 DAL T3018 3S 50 1.4 A — 73 g 4.698 g/W
3850 DAL T3018 3S 100 7.7 A — 227 g 2.656 g/W
3850 DAL T3018 4S 50 — — 122 g —
3850 DAL T3018 4S 100 — — 361 g —
3850 DAL T3028 3S 50 1.8 A — 93 g 4.655 g/W
3850 DAL T3028 3S 100 9.5 A — 272 g 2.579 g/W
3850 DAL T3028 4S 50 2.9 A — 150 g 3.495 g/W
3850 DAL T3028 4S 100 15.3 A — 423 g 1.868 g/W
3850 GF 3028*3 3S 50 1.4 A — 90 g 5.792 g/W
3850 GF 3028*3 3S 100 8.2 A — 263 g 2.889 g/W
3850 GF 3028*3 4S 50 2.8 A — 150 g 3.62 g/W
3850 GF 3028*3 4S 100 13.3 A — 411 g 2.088 g/W
3850 GF4*2*2 3S 50 1.7 A — 151 g 8.002 g/W
3850 GF4*2*2 3S 100 7.6 A — 361 g 4.279 g/W
4533 DAL T3018 2S 50 0.9 A — 51 g 7.658 g/W
4533 DAL T3018 2S 100 6.5 A — 159 g 3.306 g/W
4533 DAL T3018 3S 50 2.6 A — 105 g 3.638 g/W
4533 DAL T3018 3S 100 12.5 A — 305 g 2.198 g/W
4533 DAL T3028 2S 50 1.4 A — 68 g 6.564 g/W
4533 DAL T3028 2S 100 8.2 A — 191 g 3.148 g/W
4533 DAL T3028 3S 50 2.9 A — 125 g 3.883 g/W
4533 DAL T3028 3S 100 14.8 A — 350 g 2.131 g/W
4533 GF 3028*3 2S 50 1.3 A — 62 g 6.445 g/W
4533 GF 3028*3 2S 100 7.0 A — 184 g 3.552 g/W
4533 GF 3028*3 3S 50 2.9 A — 124 g 3.852 g/W
4533 GF 3028*3 3S 100 13.2 A — 342 g 2.334 g/W
4533 GF4*2*2 2S 50 1.8 A — 119 g 8.934 g/W
4533 GF4*2*2 2S 100 8.1 A — 305 g 5.088 g/W
4533 GF4*2*2 3S 50 — — 175 g —
4533 GF4*2*2 3S 100 12.9 A — 429 g 2.996 g/W

Manufacturer bench figures (Foxeer bench, both windings over the same four 3-4in props: 3850 KV at 11.1 and 14.8 V (3S/4S), 4533 KV at 7.4 and 11.1 V (2S/3S), 50% and 100% throttle; no RPM published); real-world thrust varies with ESC, battery sag and prop condition.

Thrust-to-weight with this motor

Four Foxeer Datura 1404 motors at 423 g max thrust each give 1692 g: 2:1, the minimum to fly, up to 846 g all-up; 4:1 (freestyle) up to 423 g; 8:1 (racing) up to 211.5 g.

RPM & prop speed on this motor

Props in this motor's class

PropSizeBladesWeight
Gemfan 4022F 2-Blade 4.0x2.2 2 0.37 g
Gemfan Hurricane 3018 Durable 1.5mm 3.0x1.8 2 0.75 g
Gemfan Hurricane 3018 Durable 2mm 3.0x1.8 2 0.75 g
HQProp T3x1.5 Durable 3.0x1.5 2 0.78 g
HQProp T3.5x2.2x2 3.5x2.2 2 1.1 g

Where this data comes from

Bench rows are Foxeer's own two test sheets, headed "DATURA 1404-3850KV" and "DATURA 1404-4533KV", the description images of Foxeer's former product page for this motor (foxeer.com goods 399, "1404 - 4533KV/3850KV", read in its Web Archive copy; the images are still served by inew.foxeer.com). The 4533 KV winding is this motor and no listing of ours sells it now, so it is added to the KV list off the maker's own sheet (RaceDayQuads once listed it as "4553Kv"). Each sheet carries its own Technical Datas block and each block's two maxima land on its own DAL T3028 full-throttle row - 226 W / 15.3 A at 3850 KV (226.4 W at 14.8 V, under a "3S" label that row contradicts), 164 W / 14.8 A at 4533 KV (164.3 W at 11.1 V). Every other row's Power is its own Voltages x its own Load Currency and every printed Efficiency is its own Pull / Power. Three rows print a Power their own volts and amps contradict, so their current and efficiency are left blank (thrust kept): 3850 KV DAL T3018 at 14.8 V prints 2.3 A / 25.5 W at 50% (14.8 x 2.3 = 34.0 W) and 12.5 A / 138.8 W at 100% (185.0 W; 138.8 W is the 4533 KV sheet's own 11.1 V x 12.5 A cell), and 4533 KV GF4*2*2 at 11.1 V 50% prints 4.1 A / 30.3 W (45.5 W). The 3850 KV sheet prints GF4*2*2's 14.8 V run empty; it is left out. The blocks rate the windings 3S-4S and 2S-3S and give 240 / 140 mOhm, where the listing prints the 3850 KV figure as "240Ω". Both blocks: 9N12P, 14x4 mm stator, Phi 19.2*16.9 mm, 9 g with 3 cm wire, 1.5 mm shaft (2 mm inside), 9 mm square 4 x M2 mount on the drawing. Temperature after 3 s at full throttle: 53-80 degC at 3850 KV, 55-80 degC at 4533 KV, DAL T3028 at the higher voltage marked HOT on both.
