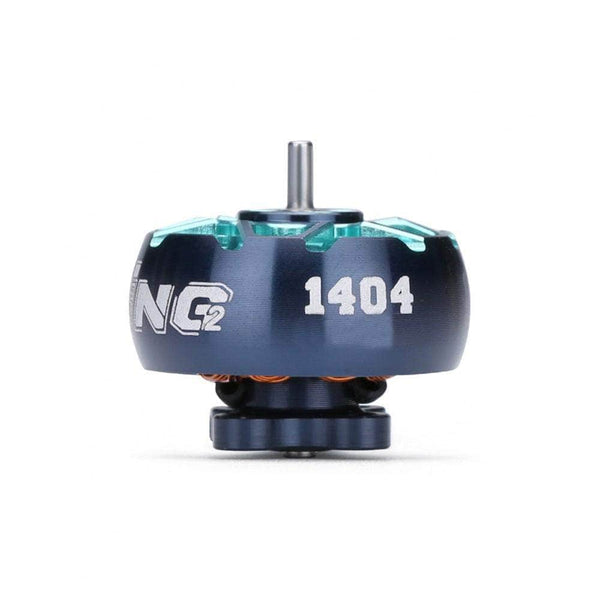

iFlight Xing2 1404

iFlight Xing2 1404
Image: racedayquads.com
Stator1404
KV options3000, 3800, 4600
Weight9.1 g
Shaft1.5mm
Max cells3-4S
Configuration9N12P
DimensionsØ19.9x18.4 mm
Mount9x9mm (M2)
Winding resistance309 (3000KV) / 220 (3800KV) / 159 (4600KV) mOhm
Max thrust574 g
Price (approx.)21.99 USD

At 9.1 g it is 0.4 g lighter than average across the 11 1404-class motors in our database (avg 9.5 g).

Thrust data (iFlight bench test)

KVPropBatteryThrottleCurrentRPMThrustEfficiency
3000 4030 4S 50 2.4 A — 186 g 4.844 g/W
3000 4030 4S 60 3.13 A — 215 g 4.293 g/W
3000 4030 4S 70 4.51 A — 269 g 3.728 g/W
3000 4030 4S 80 6.1 A — 307 g 3.145 g/W
3000 4030 4S 90 9.4 A — 362 g 2.407 g/W
3000 4030 4S 100 13.8 A — 489 g 2.215 g/W
3800 4030 4S 50 2.56 A — 192 g 4.688 g/W
3800 4030 4S 60 4.41 A — 298 g 4.223 g/W
3800 4030 4S 70 7.02 A — 381 g 3.392 g/W
3800 4030 4S 80 9.91 A — 452 g 2.851 g/W
3800 4030 4S 90 11.51 A — 481 g 2.612 g/W
3800 4030 4S 100 15.84 A — 512 g 2.02 g/W
4600 4030 4S 50 3.12 A — 254 g 5.088 g/W
4600 4030 4S 60 5.97 A — 382 g 3.999 g/W
4600 4030 4S 70 8.22 A — 452 g 3.437 g/W
4600 4030 4S 80 10.72 A — 491 g 2.863 g/W
4600 4030 4S 90 13.74 A — 539 g 2.452 g/W
4600 4030 4S 100 17.99 A — 574 g 1.994 g/W

Manufacturer bench figures (iFlight test report per winding, 6 throttle points (50-100%) on a 4030 prop at 16 V (4S), 3000/3800/4600KV); real-world thrust varies with ESC, battery sag and prop condition.

Xing2 1404 vs other 1404 motors on 4S

The same thrust costs different power on different motors. Each line is one maker's own bench series (4S, its own prop), drawn as grams of thrust per watt against thrust, so a higher line makes that thrust for less battery current. Throttle percent is left out on purpose: it means something different on every maker's rig.

0123450100200300400500 thrust, g g/W
MotorKVPropPeak thrust At 300 g
iFlight Xing2 1404 4600 4030 574 g at 288 W 66 W (4.52 g/W)
XILO Stealth 1404 4500 GF3028 3R 351 g at 196 W 145 W (2.06 g/W)
AOS RC Supernova 1404 4000 Gemfan 3016R*3 474 g at 243 W 122 W (2.46 g/W)
Diatone Mamba Toka 1404 4000 GF D63 360 g at 216 W 168 W (1.78 g/W)
Happymodel EX 1404 3500 Gemfan 4023 3-blade propeller 327 g at 141 W 125 W (2.4 g/W)

Power at 300 g is read off each maker's curve, straight-line between its two nearest bench points; 300 g is the highest thrust every motor here reached. Different props and rigs move these curves as much as the motor does, so compare rows on a similar prop. Peak thrust of every 1404 motor: 1404 motors compared. How to read a bench table: reading motor bench tables.

Thrust-to-weight with this motor

Four iFlight Xing2 1404 motors at 574 g max thrust each give 2296 g: 2:1, the minimum to fly, up to 1148 g all-up; 4:1 (freestyle) up to 574 g; 8:1 (racing) up to 287 g.

RPM & prop speed on this motor

Props in this motor's class

PropSizeBladesWeight
Gemfan 4022F 2-Blade 4.0x2.2 2 0.37 g
Gemfan Hurricane 3018 Durable 1.5mm 3.0x1.8 2 0.75 g
Gemfan Hurricane 3018 Durable 2mm 3.0x1.8 2 0.75 g
HQProp T3x1.5 Durable 3.0x1.5 2 0.78 g
HQProp T3.5x2.2x2 3.5x2.2 2 1.1 g

Where this data comes from

iFlight's product page carries one TEST REPORT image per winding (XING2-1404-3000KV.png, -3800KV.png, -4600KV-1.png): a spec table, the drawing and a 6-row datasheet on a 4030 prop at 16 V (4S), 50-100% throttle. They confirm all three windings, 9.1 g with wire for each, 3-4S, Ø19.9x18.4 mm (the drawing's 18.4 is the body; the 1.5 mm shaft protrudes a further 4 mm), 9x9 M2, 9N12P, 309/220/159 mOhm, a 1.5 mm shaft, 120 mm 26AWG leads, N52H curved magnets and NSK 5x2x2 bearings, and each sheet's peak (13.8 A / 220.8 W, 15.84 A / 253.4 W, 17.99 A / 287.8 W) is its 100% row. All 18 rows pass V x A and the efficiency identity (the 3000KV sheet prints power to the whole watt; its g/W is thrust over 16 V x A). The retail listing's 8.5 g and 2-4S moved to the maker's 9.1 g and 3-4S. Max thrust is 574 g, 4600KV on a 4030 at 16 V
