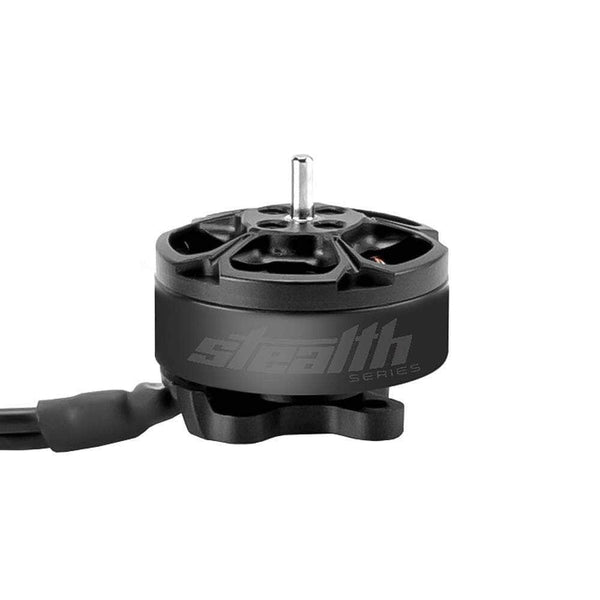

XILO Stealth 1404

XILO Stealth 1404
Image: racedayquads.com
Stator1404
KV options4500
Weight9.2 g
Shaft1.5mm
Max cells4S
Configuration9N12P
Dimensions18.6x13.2 mm
Mount12x12mm (4-M2)
Max thrust351 g
Price (approx.)17.99 USD

At 9.2 g it is 0.3 g lighter than average across the 11 1404-class motors in our database (avg 9.5 g).

Thrust data (XILO bench test)

KVPropBatteryThrottleCurrentRPMThrustEfficiency
4500 GF3028 3R 3S 50 2.16 A — 94 g 3.63 g/W
4500 GF3028 3R 3S 60 3.51 A — 130 g 3.09 g/W
4500 GF3028 3R 3S 70 5.07 A — 173 g 2.84 g/W
4500 GF3028 3R 3S 80 7.03 A — 215 g 2.55 g/W
4500 GF3028 3R 3S 90 8.85 A — 247 g 2.33 g/W
4500 GF3028 3R 3S 100 8.92 A — 249 g 2.33 g/W
4500 GF3035 3R 3S 50 2.22 A — 89 g 3.34 g/W
4500 GF3035 3R 3S 60 3.44 A — 126 g 3.05 g/W
4500 GF3035 3R 3S 70 4.99 A — 168 g 2.81 g/W
4500 GF3035 3R 3S 80 6.96 A — 212 g 2.54 g/W
4500 GF3035 3R 3S 90 8.92 A — 245 g 2.29 g/W
4500 GF3035 3R 3S 100 9.05 A — 248 g 2.28 g/W
4500 GF2540 3R 4S 50 2.7 A — 111 g 3.43 g/W
4500 GF2540 3R 4S 60 4.39 A — 152 g 2.31 g/W
4500 GF2540 3R 4S 70 5.88 A — 202 g 2.29 g/W
4500 GF2540 3R 4S 80 8.24 A — 254 g 2.06 g/W
4500 GF2540 3R 4S 90 10.68 A — 292 g 1.82 g/W
4500 GF2540 3R 4S 100 10.68 A — 293 g 1.83 g/W
4500 GF3028 3R 4S 50 3.37 A — 146 g 2.89 g/W
4500 GF3028 3R 4S 60 5.07 A — 201 g 2.64 g/W
4500 GF3028 3R 4S 70 7.57 A — 259 g 2.28 g/W
4500 GF3028 3R 4S 80 10.47 A — 315 g 2.01 g/W
4500 GF3028 3R 4S 90 12.84 A — 344 g 1.79 g/W
4500 GF3028 3R 4S 100 13.04 A — 351 g 1.56 g/W

Manufacturer bench figures (XILO bench, 50-100% in tens, four prop runs at 12 and 15 V; the sheet has no RPM column); real-world thrust varies with ESC, battery sag and prop condition.

Stealth 1404 vs other 1404 motors on 4S

The same thrust costs different power on different motors. Each line is one maker's own bench series (4S, its own prop), drawn as grams of thrust per watt against thrust, so a higher line makes that thrust for less battery current. Throttle percent is left out on purpose: it means something different on every maker's rig.

0123450100200300400500 thrust, g g/W
MotorKVPropPeak thrust At 300 g
XILO Stealth 1404 4500 GF3028 3R 351 g at 196 W 145 W (2.06 g/W)
iFlight Xing2 1404 4600 4030 574 g at 288 W 66 W (4.52 g/W)
AOS RC Supernova 1404 4000 Gemfan 3016R*3 474 g at 243 W 122 W (2.46 g/W)
Diatone Mamba Toka 1404 4000 GF D63 360 g at 216 W 168 W (1.78 g/W)
Happymodel EX 1404 3500 Gemfan 4023 3-blade propeller 327 g at 141 W 125 W (2.4 g/W)

Power at 300 g is read off each maker's curve, straight-line between its two nearest bench points; 300 g is the highest thrust every motor here reached. Different props and rigs move these curves as much as the motor does, so compare rows on a similar prop. Peak thrust of every 1404 motor: 1404 motors compared. How to read a bench table: reading motor bench tables.

Thrust-to-weight with this motor

Four XILO Stealth 1404 motors at 351 g max thrust each give 1404 g: 2:1, the minimum to fly, up to 702 g all-up; 4:1 (freestyle) up to 351 g; 8:1 (racing) up to 175.5 g.

RPM & prop speed on this motor

Props in this motor's class

PropSizeBladesWeight
Gemfan 4022F 2-Blade 4.0x2.2 2 0.37 g
Gemfan Hurricane 3018 Durable 1.5mm 3.0x1.8 2 0.75 g
Gemfan Hurricane 3018 Durable 2mm 3.0x1.8 2 0.75 g
HQProp T3x1.5 Durable 3.0x1.5 2 0.78 g
HQProp T3.5x2.2x2 3.5x2.2 2 1.1 g

Where this data comes from

Bench table read off the listing's own description image (XILO_STEALTH_1404_Motor_Infograp_1.jpg): Volts / Prop / Throttle / Current / Power / Thrust / Efficiency / Operating temp, no RPM column. The sheet states volts only (12 and 15); they are recorded here as 3S and 4S, the spec block's own 'Volts: 15(4S)'. Its 351 g peak and 225 W are the block's Max Static Thrust and Max Power. Two rows print a power their own volts and amps do not reproduce, and in both the printed efficiency follows the printed power: the 15 V GF2540 50% row is 32.4 W (= 12 x 2.7) for 111 g at 3.43 g/W, and the 15 V GF3028 100% row is 225.0 W where 15 x 13.04 = 195.6, for 351 g at 1.56 g/W.
