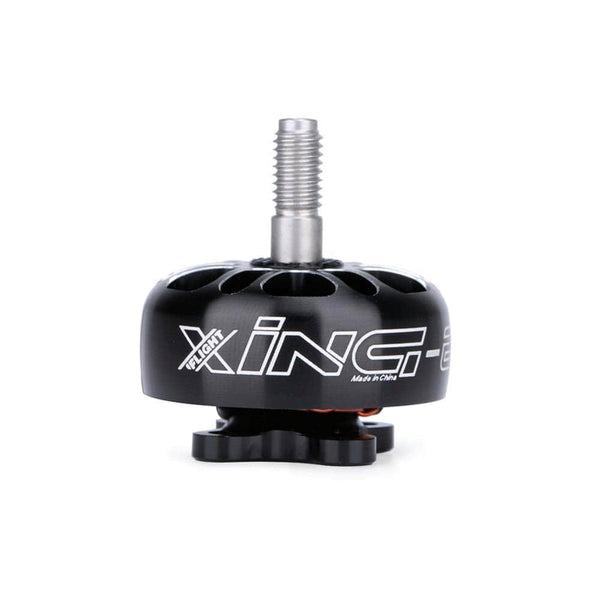

iFlight Xing-E Pro 2306

Stator	2306
KV options	1700, 2450
Weight	33.8 g (1700KV)
Shaft	5mm
Max cells	2-6S
Configuration	12N14P
Dimensions	Ø29.5x32.2 mm
Mount	16x16mm (M3)
Winding resistance	85.63 (1700KV) / 55.6 (2450KV) mOhm
Max thrust	1604 g
Price (approx.)	19.49 USD

At 33.8 g it is 1.1 g heavier than average across the 21 2306-class motors in our database (avg 32.7 g).

Thrust data (iFlight bench test)

KV	Prop	Battery	Throttle	Current	RPM	Thrust	Efficiency
1700	Nazgul 5140	6S	50	7.48 A	—	576 g	3.021 g/W
1700	Nazgul 5140	6S	60	11.28 A	—	744 g	2.59 g/W
1700	Nazgul 5140	6S	70	16.7 A	—	935 g	2.208 g/W
1700	Nazgul 5140	6S	80	22.78 A	—	1096 g	1.899 g/W
1700	Nazgul 5140	6S	90	29.17 A	—	1266 g	1.721 g/W
1700	Nazgul 5140	6S	100	36.66 A	—	1401 g	1.523 g/W
1700	Gemfan 51466	6S	50	6.78 A	—	578 g	3.345 g/W
1700	Gemfan 51466	6S	60	10.43 A	—	797 g	3.004 g/W
1700	Gemfan 51466	6S	70	15.59 A	—	1047 g	2.641 g/W
1700	Gemfan 51466	6S	80	21.63 A	—	1257 g	2.301 g/W
1700	Gemfan 51466	6S	90	27.91 A	—	1480 g	2.096 g/W
1700	Gemfan 51466	6S	100	35.44 A	—	1604 g	1.802 g/W
2450	Nazgul 5140	4S	50	9.2 A	—	485 g	3.12 g/W
2450	Nazgul 5140	4S	60	13.57 A	—	646 g	2.826 g/W
2450	Nazgul 5140	4S	70	19.61 A	—	797 g	2.426 g/W
2450	Nazgul 5140	4S	80	25.24 A	—	946 g	2.241 g/W
2450	Nazgul 5140	4S	90	34.58 A	—	1095 g	1.906 g/W
2450	Nazgul 5140	4S	100	43.38 A	—	1254 g	1.76 g/W
2450	Gemfan 51466	4S	50	8.38 A	—	500 g	3.524 g/W
2450	Gemfan 51466	4S	60	12.51 A	—	680 g	3.204 g/W
2450	Gemfan 51466	4S	70	18.45 A	—	885 g	2.846 g/W
2450	Gemfan 51466	4S	80	25.38 A	—	1067 g	2.512 g/W
2450	Gemfan 51466	4S	90	32.89 A	—	1248 g	2.291 g/W
2450	Gemfan 51466	4S	100	42.03 A	—	1447 g	2.102 g/W

Manufacturer bench figures (iFlight test report per winding, 6 throttle points (50-100%) on two props (Nazgul 5140, Gemfan 51466): 1700 KV at 6S (25.2 V), 2450 KV at 4S (16.8 V)); real-world thrust varies with ESC, battery sag and prop condition.

Xing-E Pro 2306 vs other 2306 motors on 6S

The same thrust costs different power on different motors. Each line is one maker's own bench series (6S, its own prop), drawn as grams of thrust per watt against thrust, so a higher line makes that thrust for less battery current. Throttle percent is left out on purpose: it means something different on every maker's rig.

Motor	KV	Prop	Peak thrust	At 650 g	At 1300 g
iFlight Xing-E Pro 2306	1700	Gemfan 51466	1604 g at 890 W	203 W (3.2 g/W)	577 W (2.25 g/W)
T-Motor Slatts 2306.3	1700	Gemfan F3-3	1681 g at 835 W	220 W (2.95 g/W)	560 W (2.32 g/W)
T-Motor IT'S 2306.5	1750	Gemfan F4-3	1757 g at 839 W	187 W (3.48 g/W)	520 W (2.5 g/W)
GEPRC SPEEDX2 2306E	1860	5136	1342 g at 987 W	305 W (2.13 g/W)	932 W (1.4 g/W)
EMAX E3 Series 2306	1900	EMAX AVAN 5026-3	1760 g at 978 W	213 W (3.05 g/W)	614 W (2.12 g/W)
EMAX ECO II Series 2306	1900	DALPROP Cyclone 5050	1990 g at 1154 W	215 W (3.03 g/W)	665 W (1.96 g/W)

Power at 650 g and 1300 g is read off each maker's curve, straight-line between its two nearest bench points; 1300 g is the highest thrust every motor here reached. Different props and rigs move these curves as much as the motor does, so compare rows on a similar prop. Peak thrust of every 2306 motor: 2306 motors compared. How to read a bench table: reading motor bench tables.

Thrust-to-weight with this motor

Four iFlight Xing-E Pro 2306 motors at 1604 g max thrust each give 6416 g: 2:1, the minimum to fly, up to 3208 g all-up; 4:1 (freestyle) up to 1604 g; 8:1 (racing) up to 802 g.

RPM & prop speed on this motor

Props in this motor's class

Prop	Size	Blades	Weight
Gemfan Long Range 5126-2 Durable 1.5mm T-Mount	5.1x2.7	2	2.6 g
HQProp DP 5.1x2.5x3	5.1x2.5	3	3.1 g
HQProp Juicy J37	4.9x3.7	3	3.4 g
HQProp Juicy J40	5.1x4.0	3	3.4 g
Gemfan 4935 Sbang 3-Blade	4.9x3.5	3	3.45 g

Where this data comes from

iFlight's product page carries one TEST REPORT image per winding (XING-E-Pro-2306-1700KV.png and -2450KV.png, 1307x2000 each): a spec table, the drawing and a 12-row datasheet on Nazgul 5140 and Gemfan 51466. The page's text block states the windings as 1750KV and 2450KV, but the 1700KV test report, the shop's own KV selector (1700KV / 2450KV) and our retail source all say 1700, and the report is self-consistent: its 100% row, 25.1 V x 36.66 A = 920.2 W, is the Peak Current and Max Watt both documents print. So kv_options keep 1700 and the 1750 is recorded here as the text block's figure (two maker documents disagree; the self-consistent one wins). All 24 rows pass printed power = V x A and the efficiency identity. Max thrust is the 1700 KV winding's 1604 g on the Gemfan 51466 at 6S. The reports confirm 33.8 g / 33.6 g with wire, the 5 mm shaft protruding 13.5 mm, Ø29.5x32.2 mm, 16x16 M3, 12N14P, 85.63/55.6 mOhm, 160 mm 20AWG leads, N52H magnets and NSK 9x4x4 bearings; the input volts are 25.2 V (1700KV) and 16.8 V (2450KV), the bench pack of each run. weight_g is the first-listed winding's Weight (included wire), 33.8 g (33.6 g at 2450 KV), from the product page's Specifications text read 2026-10-20; named 1700 KV for the reason above (owner 2026-10-20: weight includes the cable; the page names the winding).
