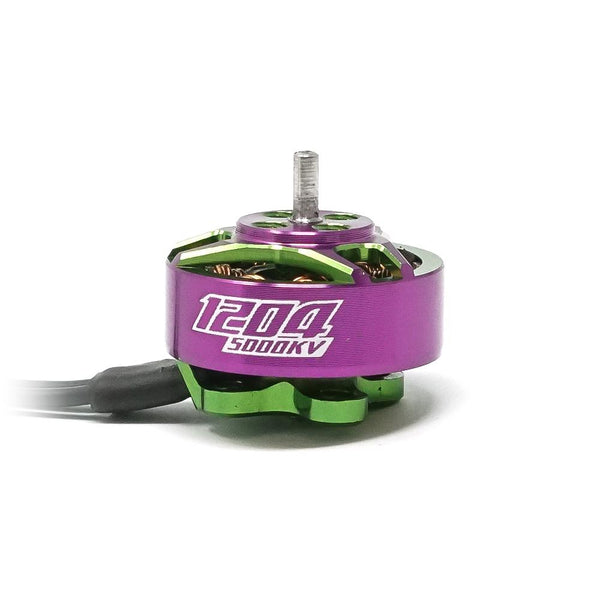

RCINPOWER GTS-V2 1204
| Stator | 1204 |
|---|---|
| KV options | 5000 |
| Weight | 6.0 g |
| Shaft | 1.5mm |
| Max cells | 3-4S |
| Configuration | 9N12P |
| Dimensions | Ø16.1x10.9 mm |
| Winding resistance | 125 mOhm |
| Max thrust | 186 g |
| Price (approx.) | 15.49 USD |
At 6 g it is right at the class average across the 3 1204-class motors in our database (avg 6.0 g).
Thrust data (RCINPOWER bench test)
| KV | Prop | Battery | Throttle | Current | RPM | Thrust | Efficiency |
|---|---|---|---|---|---|---|---|
| 5000 | T2.5*3*3 | 3S | 25 | 0.15 A | — | 8 g | 4.805 g/W |
| 5000 | T2.5*3*3 | 3S | 50 | 0.8 A | — | 37 g | 4.167 g/W |
| 5000 | T2.5*3*3 | 3S | 75 | 2.2 A | — | 80 g | 3.276 g/W |
| 5000 | T2.5*3*3 | 3S | 100 | 3.6 A | — | 115 g | 2.878 g/W |
| 5000 | T2.5*3*3 | 4S | 25 | 0.25 A | — | 18 g | 4.865 g/W |
| 5000 | T2.5*3*3 | 4S | 50 | 1.4 A | — | 68 g | 3.282 g/W |
| 5000 | T2.5*3*3 | 4S | 75 | 3.4 A | — | 133 g | 2.643 g/W |
| 5000 | T2.5*3*3 | 4S | 100 | 5.6 A | — | 186 g | 2.244 g/W |
Manufacturer bench figures (RCinPower bench, one 5000 KV sheet, a single 2.5in tri-blade prop at 11.1 V and 14.8 V, four throttle points each (25/50/75/100%); no RPM published); real-world thrust varies with ESC, battery sag and prop condition.
GTS-V2 1204 vs other 1204 motors on 4S
The same thrust costs different power on different motors. Each line is one maker's own bench series (4S, its own prop), drawn as grams of thrust per watt against thrust, so a higher line makes that thrust for less battery current. Throttle percent is left out on purpose: it means something different on every maker's rig.
| Motor | KV | Prop | Peak thrust | At 75 g | At 150 g | |
|---|---|---|---|---|---|---|
| RCINPOWER GTS-V2 1204 | 5000 | T2.5*3*3 | 186 g at 83 W | 24 W (3.14 g/W) | 61 W (2.47 g/W) | |
| VCI HOBBY Spark 1204 | 5600 | GF 2512-3 | 263 g at 128 W | 24 W (3.08 g/W) | 63 W (2.39 g/W) |
Power at 75 g and 150 g is read off each maker's curve, straight-line between its two nearest bench points; 150 g is the highest thrust every motor here reached. Different props and rigs move these curves as much as the motor does, so compare rows on a similar prop. Peak thrust of every 1204 motor: 1204 motors compared. How to read a bench table: reading motor bench tables.
Thrust-to-weight with this motor
Four RCINPOWER GTS-V2 1204 motors at 186 g max thrust each give 744 g: 2:1, the minimum to fly, up to 372 g all-up; 4:1 (freestyle) up to 186 g; 8:1 (racing) up to 93 g.
RPM & prop speed on this motor
Props in this motor's class
| Prop | Size | Blades | Weight |
|---|---|---|---|
| HQProp 51MMX2 Ultralight | 2.0x0.9 | 2 | 0.23 g |
| Gemfan 2216 3-Blade | 2.2x1.6 | 3 | 0.7 g |
| Gemfan 2216S PC 3-Blade | 2.2x1.6 | 3 | 0.8 g |
| Gemfan Hurricane 2512 | 2.5x1.2 | 3 | 0.8 g |
| HQProp Durable T2x2x4 | 2.0x2.0 | 4 | 0.8 g |
Where this data comes from
RCinPower publishes this motor at www.rcinpower.com/G-SERIES/31.html, one data sheet headed "MOTORS: 1204-5000" with a single prop in its table. Identity against our retail listing is not a resemblance but the same block: 5000 KV, 9N12P, 12 mm stator diameter, 6 g, 3S-4S, 0.95 A idle at 10 V, 89 W max continuous power (3S), 125 mOhm internal resistance, 6 A max current (3S), 1.5-2 A max-efficiency band at >80% and a Phi 16.1x10.9 mm motor dimension - nine figures to the digit, so the sheet titled "GTS 1204" and our "GTS-V2 1204" are one motor. Stator length 4 mm. Three things are reproduced as printed rather than corrected: (1) the block's 89 W and 6 A maxima are labelled 3S and are the top row of NO row in this sheet's own table - its 3S (11.1 V) full-throttle run is 40.0 W at 3.6 A and its 4S (14.8 V) one 82.9 W at 5.6 A - so unlike the five RCinPower sheets read 2026-09-15 the spec-block cross-check does not land here, presumably because the maxima were measured on a prop this sheet does not tabulate; (2) the marketing banner on the product page heads the motor "1204 5200KV" while the data sheet, our retail listing and the page title all say 5000 KV, and nothing here is taken from the banner; (3) the sheet prints "Shaft Diameter: 2mm" where our retail listing prints 1.5 mm - the sibling GTS-V2 1202.5 listing spells the same motor family out as a "1.5mm press fit prop shaft" with a "2mm internal shaft", so the two figures are the two ends of one shaft, as the 2104 sheets also print; the retailer's prop-shaft figure is left in the shaft field and the manufacturer's named here. The temperature column is printed empty for all eight rows.
