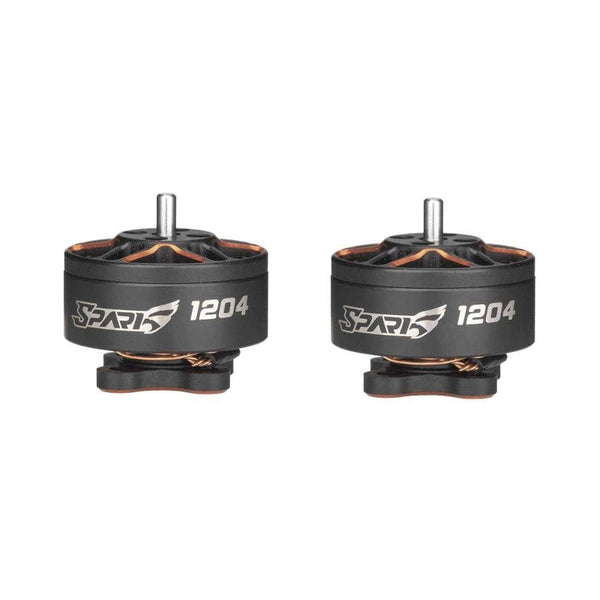

VCI HOBBY Spark 1204

VCI HOBBY Spark 1204
Image: racedayquads.com
Stator1204
KV options5600
Weight5.8 g
Shaft1.5mm
Max cells3-4S
Configuration9S12P
DimensionsØ15.3x14.3 mm
Max thrust263 g
Price (approx.)20.49 USD

At 5.8 g it is right at the class average across the 3 1204-class motors in our database (avg 6.0 g).

Thrust data (VCI HOBBY bench test)

KVPropBatteryThrottleCurrentRPMThrustEfficiency
4500 GF 3018-2 4S 30 0.91 A — 58 g 3.98 g/W
4500 GF 3018-2 4S 40 1.66 A — 90 g 3.39 g/W
4500 GF 3018-2 4S 50 2.34 A — 112 g 2.99 g/W
4500 GF 3018-2 4S 60 3.02 A — 135 g 2.79 g/W
4500 GF 3018-2 4S 70 3.56 A — 155 g 2.72 g/W
4500 GF 3018-2 4S 80 4.1 A — 173 g 2.64 g/W
4500 GF 3018-2 4S 90 5.18 A — 200 g 2.41 g/W
4500 GF 3018-2 4S 100 6.36 A — 227 g 2.23 g/W
5600 GF 2020-4 4S 30 1.69 A — 66 g 2.44 g/W
5600 GF 2020-4 4S 40 2.68 A — 95 g 2.22 g/W
5600 GF 2020-4 4S 50 3.6 A — 116 g 2.01 g/W
5600 GF 2020-4 4S 60 4.53 A — 137 g 1.89 g/W
5600 GF 2020-4 4S 70 5.21 A — 155 g 1.86 g/W
5600 GF 2020-4 4S 80 5.95 A — 174 g 1.83 g/W
5600 GF 2020-4 4S 90 7.12 A — 193 g 1.69 g/W
5600 GF 2020-4 4S 100 8.45 A — 226 g 1.67 g/W
5600 GF 2512-3 4S 30 1.52 A — 75 g 3.08 g/W
5600 GF 2512-3 4S 40 2.5 A — 105 g 2.63 g/W
5600 GF 2512-3 4S 50 3.44 A — 136 g 2.47 g/W
5600 GF 2512-3 4S 60 4.27 A — 160 g 2.34 g/W
5600 GF 2512-3 4S 70 4.91 A — 181 g 2.3 g/W
5600 GF 2512-3 4S 80 5.93 A — 203 g 2.14 g/W
5600 GF 2512-3 4S 90 6.81 A — 222 g 2.04 g/W
5600 GF 2512-3 4S 100 8.0 A — 263 g 2.05 g/W
5600 GF 3018-2 3S 30 1.19 A — 55 g 3.85 g/W
5600 GF 3018-2 3S 40 1.94 A — 84 g 3.61 g/W
5600 GF 3018-2 3S 50 2.68 A — 113 g 3.51 g/W
5600 GF 3018-2 3S 60 3.56 A — 127 g 2.97 g/W
5600 GF 3018-2 3S 70 4.41 A — 148 g 2.8 g/W
5600 GF 3018-2 3S 80 4.97 A — 165 g 2.77 g/W
5600 GF 3018-2 3S 90 5.99 A — 195 g 2.71 g/W
5600 GF 3018-2 3S 100 7.52 A — 219 g 2.43 g/W
8250 GF 2512-3 3S 30 2.7 A — 76 g 2.35 g/W
8250 GF 2512-3 3S 40 3.96 A — 106 g 2.23 g/W
8250 GF 2512-3 3S 50 5.09 A — 131 g 2.14 g/W
8250 GF 2512-3 3S 60 6.66 A — 160 g 2.0 g/W
8250 GF 2512-3 3S 70 7.66 A — 179 g 1.95 g/W
8250 GF 2512-3 3S 80 8.7 A — 201 g 1.93 g/W
8250 GF 2512-3 3S 90 9.66 A — 217 g 1.87 g/W
8250 GF 2512-3 3S 100 11.72 A — 246 g 1.75 g/W

Manufacturer bench figures (VCI Hobby bench, 4500 KV at 4S (16 V), 5600 KV at 4S (16 V) on two props and at 3S (12 V) on a third, and 8250 KV at 3S (12 V), 8 throttle points (30-100%) per run); real-world thrust varies with ESC, battery sag and prop condition.

Spark 1204 vs other 1204 motors on 4S

The same thrust costs different power on different motors. Each line is one maker's own bench series (4S, its own prop), drawn as grams of thrust per watt against thrust, so a higher line makes that thrust for less battery current. Throttle percent is left out on purpose: it means something different on every maker's rig.

012345050100150200250 thrust, g g/W
MotorKVPropPeak thrust At 75 gAt 150 g
VCI HOBBY Spark 1204 5600 GF 2512-3 263 g at 128 W 24 W (3.08 g/W) 63 W (2.39 g/W)
RCINPOWER GTS-V2 1204 5000 T2.5*3*3 186 g at 83 W 24 W (3.14 g/W) 61 W (2.47 g/W)

Power at 75 g and 150 g is read off each maker's curve, straight-line between its two nearest bench points; 150 g is the highest thrust every motor here reached. Different props and rigs move these curves as much as the motor does, so compare rows on a similar prop. Peak thrust of every 1204 motor: 1204 motors compared. How to read a bench table: reading motor bench tables.

Thrust-to-weight with this motor

Four VCI HOBBY Spark 1204 motors at 263 g max thrust each give 1052 g: 2:1, the minimum to fly, up to 526 g all-up; 4:1 (freestyle) up to 263 g; 8:1 (racing) up to 131.5 g.

RPM & prop speed on this motor

Props in this motor's class

PropSizeBladesWeight
HQProp 51MMX2 Ultralight 2.0x0.9 2 0.23 g
Gemfan 2216 3-Blade 2.2x1.6 3 0.7 g
Gemfan 2216S PC 3-Blade 2.2x1.6 3 0.8 g
Gemfan Hurricane 2512 2.5x1.2 3 0.8 g
HQProp Durable T2x2x4 2.0x2.0 4 0.8 g

Where this data comes from

The rows are VCI Hobby's own 'Testing Data' table, published as an image in the Specifications tab of the motor's product page on vcihobby.com. The sheet PRINTS NO RPM COLUMN, so every row here carries an empty RPM. VCI sells and benches this motor in three windings and all three tables are here; `kv_options` keeps the 5600 KV our retail source sells, and here the maximum is that winding's own - 263 g on a GF 2512-3 at 4S. The 5600 KV is the one winding benched at two voltages: GF 2020-4 and GF 2512-3 at 4S (16 V), GF 3018-2 at 3S (12 V), which is what its 3-4S rated-voltage cell says; the 4500 KV ran at 4S and the 8250 KV at 3S. Every row reproduces its own run's identities (printed Power = its voltage x printed current, printed Efficiency = Thrust / Power). The 5600 and 8250 KV panels land on a row (8.45 A / 135.2 W is the 5600 KV's GF 2020-4 100% row, 11.72 A / 140.64 W the 8250 KV's), but the 4500 KV's 7.32 A / 117.12 W is ABOVE anything its own table reaches (6.36 A / 101.76 W at 100%), so that winding's cross-check lands nowhere. The panels give a per-winding internal resistance, 500, 300 and 175 mOhm, which is why resistance_mohm stays empty. Identity with our retail listing is 5600 KV, the 1204 stator (the panels print Ø12*L4 mm), 3-4S and 5.8 g including cable; the panels' shaft is written Ø1.5 mm.
