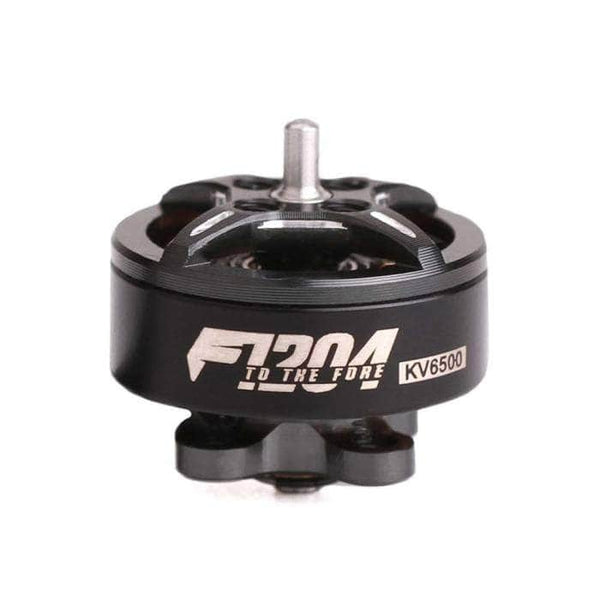

T-Motor F1204

T-Motor F1204
Image: racedayquads.com
Stator1204
KV options5000, 6500
Weight6.1 g
Shaft1.5mm
Max cells2-3S
Configuration9N12P
DimensionsØ15.5x15.6 mm
Mount (bolt circle, mm)Ø9 (4-M2)
Winding resistance240 (5000KV) / 140 (6500KV) mOhm
Max thrust171.75 g
Price (approx.)19.99 USD

At 6.1 g it is right at the class average across the 3 1204-class motors in our database (avg 6.0 g).

Thrust data (T-Motor bench test)

KVPropBatteryThrottleCurrentRPMThrustEfficiency
6500 Gemfan GF3016 2S 50 1.72 A 17718 55.05 g 3.79 g/W
6500 Gemfan GF3016 2S 55 2.1 A 19173 64.95 g 3.67 g/W
6500 Gemfan GF3016 2S 60 2.55 A 20590 76.88 g 3.58 g/W
6500 Gemfan GF3016 2S 65 2.97 A 21803 86.39 g 3.47 g/W
6500 Gemfan GF3016 2S 70 3.43 A 23078 97.52 g 3.39 g/W
6500 Gemfan GF3016 2S 75 3.91 A 24199 107.94 g 3.3 g/W
6500 Gemfan GF3016 2S 80 4.42 A 25442 116.34 g 3.15 g/W
6500 Gemfan GF3016 2S 85 4.98 A 26480 127.51 g 3.07 g/W
6500 Gemfan GF3016 2S 90 5.51 A 27293 136.56 g 2.98 g/W
6500 Gemfan GF3016 2S 95 6.19 A 27915 145.26 g 2.83 g/W
6500 Gemfan GF3016 2S 100 6.9 A 28718 153.53 g 2.69 g/W
6500 HQProp HQ3020 2S 50 1.81 A 17420 55.05 g 3.61 g/W
6500 HQProp HQ3020 2S 55 2.24 A 18865 66.52 g 3.54 g/W
6500 HQProp HQ3020 2S 60 2.72 A 20297 78.97 g 3.46 g/W
6500 HQProp HQ3020 2S 65 3.13 A 21327 87.38 g 3.32 g/W
6500 HQProp HQ3020 2S 70 3.61 A 22560 98.06 g 3.25 g/W
6500 HQProp HQ3020 2S 75 4.08 A 23570 108.1 g 3.17 g/W
6500 HQProp HQ3020 2S 80 4.58 A 24531 117.36 g 3.07 g/W
6500 HQProp HQ3020 2S 85 5.1 A 25528 125.46 g 2.96 g/W
6500 HQProp HQ3020 2S 90 5.71 A 26602 137.03 g 2.89 g/W
6500 HQProp HQ3020 2S 95 6.34 A 27580 147.59 g 2.81 g/W
6500 HQProp HQ3020 2S 100 7.04 A 28338 156.34 g 2.69 g/W
5000 Gemfan GF2540 3S 50 1.41 A 19881 58.85 g 3.42 g/W
5000 Gemfan GF2540 3S 55 1.74 A 21387 68.8 g 3.24 g/W
5000 Gemfan GF2540 3S 60 2.07 A 22811 78.63 g 3.11 g/W
5000 Gemfan GF2540 3S 65 2.42 A 24129 87.49 g 2.96 g/W
5000 Gemfan GF2540 3S 70 2.82 A 25545 97.92 g 2.86 g/W
5000 Gemfan GF2540 3S 75 3.23 A 26733 108.01 g 2.75 g/W
5000 Gemfan GF2540 3S 80 3.69 A 28086 120.67 g 2.69 g/W
5000 Gemfan GF2540 3S 85 4.14 A 29285 129.85 g 2.58 g/W
5000 Gemfan GF2540 3S 90 4.64 A 30442 140.0 g 2.49 g/W
5000 Gemfan GF2540 3S 95 5.13 A 31324 148.95 g 2.4 g/W
5000 Gemfan GF2540 3S 100 5.63 A 32065 156.57 g 2.3 g/W
5000 HQProp HQ3020 3S 50 1.5 A 19201 67.14 g 3.66 g/W
5000 HQProp HQ3020 3S 55 1.87 A 20441 77.63 g 3.4 g/W
5000 HQProp HQ3020 3S 60 2.26 A 21925 87.87 g 3.19 g/W
5000 HQProp HQ3020 3S 65 2.62 A 23023 96.45 g 3.02 g/W
5000 HQProp HQ3020 3S 70 3.04 A 24046 108.87 g 2.94 g/W
5000 HQProp HQ3020 3S 75 3.47 A 25282 120.29 g 2.85 g/W
5000 HQProp HQ3020 3S 80 3.92 A 26404 132.24 g 2.78 g/W
5000 HQProp HQ3020 3S 85 4.41 A 27447 143.5 g 2.68 g/W
5000 HQProp HQ3020 3S 90 4.97 A 28505 155.09 g 2.58 g/W
5000 HQProp HQ3020 3S 95 5.48 A 29282 164.96 g 2.49 g/W
5000 HQProp HQ3020 3S 100 5.96 A 29834 171.75 g 2.38 g/W

Manufacturer bench figures (T-Motor bench, four runs across two KV: at 6500 KV Gemfan GF3016 and HQProp HQ3020 on 2S (~8.4 V); at 5000 KV Gemfan GF2540 and HQProp HQ3020 on 3S (~12.2 V); 11 throttle points (50-100% in 5% steps) on each run); real-world thrust varies with ESC, battery sag and prop condition.

Thrust-to-weight with this motor

Four T-Motor F1204 motors at 171.75 g max thrust each give 687 g: 2:1, the minimum to fly, up to 343.5 g all-up; 4:1 (freestyle) up to 171.75 g; 8:1 (racing) up to 85.88 g.

RPM & prop speed on this motor

Props in this motor's class

PropSizeBladesWeight
HQProp 51MMX2 Ultralight 2.0x0.9 2 0.23 g
Gemfan 2216 3-Blade 2.2x1.6 3 0.7 g
Gemfan 2216S PC 3-Blade 2.2x1.6 3 0.8 g
Gemfan Hurricane 2512 2.5x1.2 3 0.8 g
HQProp Durable T2x2x4 2.0x2.0 4 0.8 g

Where this data comes from

Bench rows, configuration, dimensions and winding resistances are from T-Motor's own "Product Drawing", "Specifications" and "Test Report" images on tmotorhobby.com/goods-1119.html. Identity with our RaceDayQuads listings is five figures shared to the digit: both blocks give Φ15.5*15.6mm (a 1204 stator), a 1.5 mm shaft, 2~3S, 6.9 g incl. cable / 6.1 g excl. cable against our published 6.1 g, and the two windings the blocks and the report carry - 5000 and 6500 KV - are exactly the two RaceDayQuads sells. Max thrust is the 5000 KV HQProp HQ3020 3S 100% row, 171.75 g, where the page carried none; the 6500 KV winding was benched on 2S and peaks at 156.34 g, so the higher-KV winding is not the stronger one here. All 44 rows pass the efficiency identity - printed thrust / printed power is the printed efficiency on every one - and printed power is voltage x current on all 44 to within the band the two-decimal columns allow, with no run carrying an offset. Four source facts recorded rather than repaired. First, the spec-block cross-check lands on the 5000 KV block and not on the 6500 KV one: 72W / 6A are the 5000 KV HQ3020 100% row's 72.10 W and 5.96 A truncated, and the 6500 KV block's 7A is that winding's 7.04 A truncated, but its 60W stands 1.8 W above the 58.20 W that is the highest power anywhere in the winding's two runs, so nothing is derived from it. Second, the two windings' weights are printed identically (6.9 / 6.1 g) although their resistances differ by 100 mOhm, and our published figure is the excl.-cable one. Third, the drawing dimensions four M2 holes on a Ø9 bolt circle - a bolt circle and not a square pattern, so mount_mm stays empty - and writes its dimensions with a comma decimal separator (15,6, Ø1,5) as the V3115 and V3120 drawings do. Fourth, recommended_props stays empty although the sheet benches a 2540, a 3016 and a 3020: a bench prop set is not a recommendation, and T-Motor states none.
