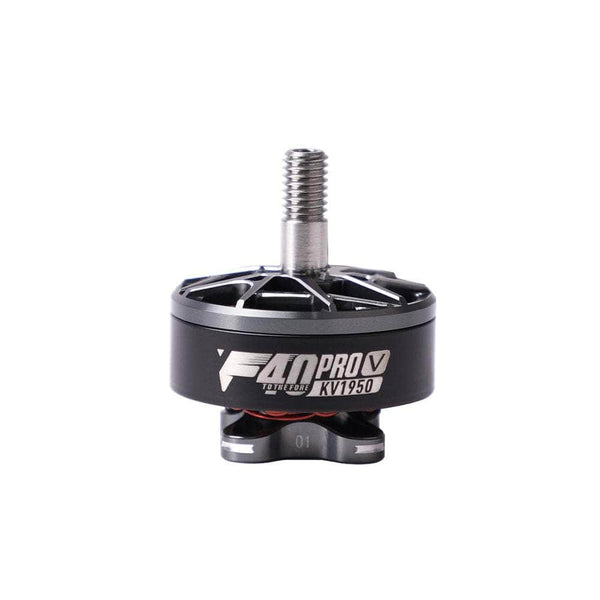

T-Motor F40 Pro V 2306.8
| Stator | 2306.8 |
|---|---|
| KV options | 1950, 2150 |
| Weight | 34.5 g (1950KV) |
| Shaft | 4mm |
| Max cells | 5-6S |
| Configuration | 12N14P |
| Mount | 16x16mm |
| Max thrust | 2108.3 g |
| Price (approx.) | 33.99 USD |
At 34.5 g it is 1.8 g heavier than average across the 21 2306-class motors in our database (avg 32.7 g).
Thrust data (T-Motor bench test)
| KV | Prop | Battery | Throttle | Current | RPM | Thrust | Efficiency |
|---|---|---|---|---|---|---|---|
| 1950 | T-Motor T5143S-3 | 6S | 20% | 2.7 A | 13213 | 242.8 g | 3.5 g/W |
| 1950 | T-Motor T5143S-3 | 6S | 40% | 8.9 A | 19856 | 588.9 g | 2.6 g/W |
| 1950 | T-Motor T5143S-3 | 6S | 60% | 16.0 A | 24507 | 926.5 g | 2.3 g/W |
| 1950 | T-Motor T5143S-3 | 6S | 80% | 29.3 A | 29978 | 1355.0 g | 1.9 g/W |
| 1950 | T-Motor T5143S-3 | 6S | 100% | 50.4 A | 35275 | 1845.5 g | 1.5 g/W |
| 2150 | T-Motor T5143S-3 | 6S | 20% | 3.5 A | 13971 | 270.0 g | 3.1 g/W |
| 2150 | T-Motor T5143S-3 | 6S | 40% | 11.5 A | 21162 | 672.6 g | 2.3 g/W |
| 2150 | T-Motor T5143S-3 | 6S | 60% | 19.3 A | 26031 | 1058.4 g | 2.2 g/W |
| 2150 | T-Motor T5143S-3 | 6S | 80% | 36.1 A | 31586 | 1504.7 g | 1.7 g/W |
| 2150 | T-Motor T5143S-3 | 6S | 100% | 60.5 A | 36419 | 1966.5 g | 1.3 g/W |
| 1950 | T-Motor T5147-3 | 6S | 20% | 2.8 A | 12081 | 269.8 g | 3.8 g/W |
| 1950 | T-Motor T5147-3 | 6S | 40% | 9.4 A | 18434 | 663.2 g | 2.8 g/W |
| 1950 | T-Motor T5147-3 | 6S | 60% | 19.1 A | 22988 | 1060.8 g | 2.2 g/W |
| 1950 | T-Motor T5147-3 | 6S | 80% | 34.2 A | 28369 | 1610.7 g | 1.9 g/W |
| 1950 | T-Motor T5147-3 | 6S | 100% | 55.5 A | 32523 | 2032.9 g | 1.5 g/W |
| 2150 | T-Motor T5147-3 | 6S | 20% | 3.6 A | 12977 | 315.4 g | 3.5 g/W |
| 2150 | T-Motor T5147-3 | 6S | 40% | 12.1 A | 19429 | 744.0 g | 2.5 g/W |
| 2150 | T-Motor T5147-3 | 6S | 60% | 22.9 A | 24401 | 1196.6 g | 2.1 g/W |
| 2150 | T-Motor T5147-3 | 6S | 80% | 41.7 A | 29378 | 1715.8 g | 1.7 g/W |
| 2150 | T-Motor T5147-3 | 6S | 100% | 65.6 A | 33384 | 2108.3 g | 1.3 g/W |
| 1950 | Gemfan GF51466-3 | 6S | 20% | 2.8 A | 13043 | 271.1 g | 3.9 g/W |
| 1950 | Gemfan GF51466-3 | 6S | 40% | 9.1 A | 19484 | 645.9 g | 2.8 g/W |
| 1950 | Gemfan GF51466-3 | 6S | 60% | 16.7 A | 24055 | 1004.2 g | 2.4 g/W |
| 1950 | Gemfan GF51466-3 | 6S | 80% | 31.0 A | 29317 | 1554.9 g | 2.0 g/W |
| 1950 | Gemfan GF51466-3 | 6S | 100% | 52.6 A | 34382 | 1924.6 g | 1.5 g/W |
| 2150 | Gemfan GF51466-3 | 6S | 20% | 3.4 A | 13859 | 311.0 g | 3.6 g/W |
| 2150 | Gemfan GF51466-3 | 6S | 40% | 11.6 A | 20667 | 734.1 g | 2.5 g/W |
| 2150 | Gemfan GF51466-3 | 6S | 60% | 20.1 A | 25475 | 1154.0 g | 2.3 g/W |
| 2150 | Gemfan GF51466-3 | 6S | 80% | 37.7 A | 30891 | 1641.0 g | 1.8 g/W |
| 2150 | Gemfan GF51466-3 | 6S | 100% | 63.0 A | 35370 | 2026.4 g | 1.3 g/W |
Manufacturer bench figures (6S, T-Motor T5147-3, 100% throttle, 2150KV; manufacturer bench, weight 34.5 g (1950KV) / 33.7 g (2150KV) incl. cable); real-world thrust varies with ESC, battery sag and prop condition.
F40 Pro V 2306.8 vs other 2306 motors on 6S
The same thrust costs different power on different motors. Each line is one maker's own bench series (6S, its own prop), drawn as grams of thrust per watt against thrust, so a higher line makes that thrust for less battery current. Throttle percent is left out on purpose: it means something different on every maker's rig.
| Motor | KV | Prop | Peak thrust | At 825 g | At 1650 g | |
|---|---|---|---|---|---|---|
| T-Motor F40 Pro V 2306.8 | 2150 | T-Motor T5147-3 | 2108 g at 1588 W | 350 W (2.35 g/W) | 968 W (1.7 g/W) | |
| EMAX RSIII Series 2306 | 2100 | HQ 5x4.8x3 | 1980 g at 1053 W | 323 W (2.55 g/W) | 845 W (1.95 g/W) | |
| Axisflying AE V2 2306.5 | 1960 | 51466 | 1760 g at 1042 W | 322 W (2.57 g/W) | 880 W (1.87 g/W) | |
| T-Motor F40 PRO IV 2306.5 | 1950 | T-Motor T5150 Tri-Blade | 1902 g at 1012 W | 267 W (3.09 g/W) | 850 W (1.94 g/W) | |
| T-Motor Pacer V2 P2306 | 1950 | T-Motor T5147 Tri-Blade | 1701 g at 950 W | 289 W (2.86 g/W) | 870 W (1.9 g/W) | |
| T-Motor VELOX V2 2306 | 1950 | T-Motor T5150 | 1656 g at 850 W | 307 W (2.68 g/W) | 847 W (1.95 g/W) |
Power at 825 g and 1650 g is read off each maker's curve, straight-line between its two nearest bench points; 1650 g is the highest thrust every motor here reached. Different props and rigs move these curves as much as the motor does, so compare rows on a similar prop. Peak thrust of every 2306 motor: 2306 motors compared. How to read a bench table: reading motor bench tables.
Thrust-to-weight with this motor
Four T-Motor F40 Pro V 2306.8 motors at 2108.3 g max thrust each give 8433.2 g: 2:1, the minimum to fly, up to 4216.6 g all-up; 4:1 (freestyle) up to 2108.3 g; 8:1 (racing) up to 1054.15 g.
RPM & prop speed on this motor
Props in this motor's class
| Prop | Size | Blades | Weight |
|---|---|---|---|
| Gemfan Long Range 5126-2 Durable 1.5mm T-Mount | 5.1x2.7 | 2 | 2.6 g |
| HQProp DP 5.1x2.5x3 | 5.1x2.5 | 3 | 3.1 g |
| HQProp Juicy J37 | 4.9x3.7 | 3 | 3.4 g |
| HQProp Juicy J40 | 5.1x4.0 | 3 | 3.4 g |
| Gemfan 4935 Sbang 3-Blade | 4.9x3.5 | 3 | 3.45 g |
Where this data comes from
weight_g is the first-listed winding's Weight (Incl. Cable) from T-Motor's "F40PROV Specifications" block, 34.5 g at 1950 KV (33.7 g at 2150 KV), named beside it; read 2026-10-20, so the retail listings' 34.5 / 33.7 g split is the two windings (owner 2026-10-20: weight includes the cable; the page names the winding).
