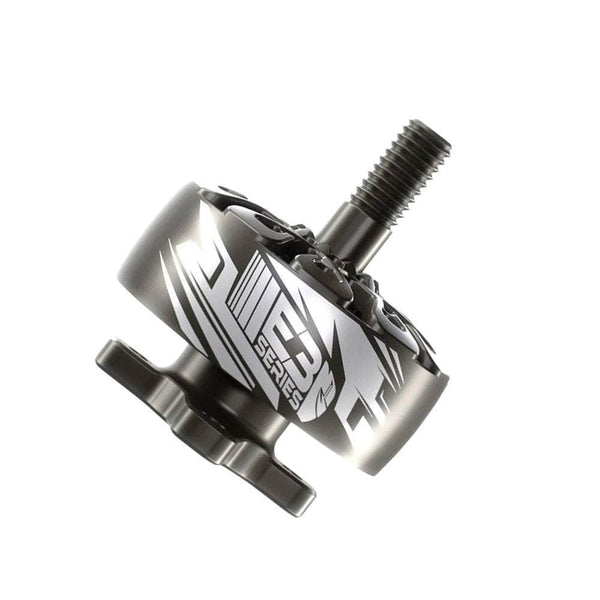

EMAX E3 Series 2207

Stator	2207
KV options	1700, 1900, 2400
Weight	31.9 g (1700KV, cable excluded)
Shaft	M5
Max cells	3-6S (1700/1900KV) / 3-4S (2400KV)
Configuration	12N14P
Dimensions	28.6x32.8 mm
Mount (bolt circle, mm)	Ø16 (4-M3)
Winding resistance	74 (1700KV) / 64 (1900KV) / 48 (2400KV) mOhm
Max thrust	1800 g
Price (approx.)	17.99 USD

At 31.9 g it is 1.3 g lighter than average across the 39 2207-class motors in our database (avg 33.2 g).

Best props for the E3 Series 2207

5"-5.5"

Thrust data (EMAX bench test)

KV	Prop	Battery	Throttle	Current	RPM	Thrust	Efficiency
1700	EMAX AVAN 5026-3	6S	—	1.84 A	11580	210 g	4.53 g/W
1700	EMAX AVAN 5026-3	6S	—	3.62 A	14850	350 g	3.84 g/W
1700	EMAX AVAN 5026-3	6S	—	6.1 A	17970	530 g	3.45 g/W
1700	EMAX AVAN 5026-3	6S	—	9.42 A	20870	720 g	3.03 g/W
1700	EMAX AVAN 5026-3	6S	—	13.6 A	23670	940 g	2.74 g/W
1700	EMAX AVAN 5026-3	6S	—	18.9 A	26100	1150 g	2.41 g/W
1700	EMAX AVAN 5026-3	6S	—	24.4 A	28210	1340 g	2.18 g/W
1700	EMAX AVAN 5026-3	6S	100%	31.4 A	—	1600 g	2.02 g/W
1900	EMAX AVAN 5026-3	6S	—	2.45 A	12760	250 g	4.05 g/W
1900	EMAX AVAN 5026-3	6S	—	4.82 A	16310	430 g	3.54 g/W
1900	EMAX AVAN 5026-3	6S	—	8.13 A	19540	620 g	3.03 g/W
1900	EMAX AVAN 5026-3	6S	—	12.2 A	22570	850 g	2.76 g/W
1900	EMAX AVAN 5026-3	6S	—	18.1 A	25460	1090 g	2.39 g/W
1900	EMAX AVAN 5026-3	6S	—	24.2 A	27710	1300 g	2.13 g/W
1900	EMAX AVAN 5026-3	6S	—	30.7 A	29870	1500 g	1.94 g/W
1900	EMAX AVAN 5026-3	6S	100%	40.6 A	—	1800 g	1.76 g/W
2400	EMAX AVAN 5026-3	4S	—	2.31 A	10710	180 g	4.64 g/W
2400	EMAX AVAN 5026-3	4S	—	4.47 A	13720	300 g	3.99 g/W
2400	EMAX AVAN 5026-3	4S	—	7.3 A	16390	440 g	3.59 g/W
2400	EMAX AVAN 5026-3	4S	—	11.1 A	18970	600 g	3.22 g/W
2400	EMAX AVAN 5026-3	4S	—	15.8 A	21320	760 g	2.86 g/W
2400	EMAX AVAN 5026-3	4S	—	21.5 A	23560	930 g	2.57 g/W
2400	EMAX AVAN 5026-3	4S	—	28.1 A	25520	1100 g	2.33 g/W
2400	EMAX AVAN 5026-3	4S	100%	35.8 A	—	1300 g	2.16 g/W

Manufacturer bench figures (6S, EMAX AVAN 5026-3, 100% throttle, 1900KV; manufacturer payload test, 8 load points per KV; 2400KV tested on 4S); real-world thrust varies with ESC, battery sag and prop condition.

E3 Series 2207 vs other 2207 motors on 6S

The same thrust costs different power on different motors. Each line is one maker's own bench series (6S, its own prop), drawn as grams of thrust per watt against thrust, so a higher line makes that thrust for less battery current. Throttle percent is left out on purpose: it means something different on every maker's rig.

Motor	KV	Prop	Peak thrust	At 1450 g
EMAX E3 Series 2207	1900	EMAX AVAN 5026-3	1800 g at 1023 W	733 W (1.98 g/W)
EMAX ECO II Series 2207	1900	DALPROP Cyclone 5046	2020 g at 1023 W	678 W (2.14 g/W)
Flash Hobby King 2207.5	1900	GF 5047 3R	1479 g at 831 W	807 W (1.8 g/W)
RDQ Badass 2 2207.5	1900	GF6040 2R	2058 g at 1037 W	563 W (2.57 g/W)
T-Motor F60 Pro IV V2 2207.5	1950	T-Motor T5150 Tri-Blade	1838 g at 950 W	659 W (2.2 g/W)
T-Motor Pacer V3.2 2207	1950	T-Motor T5143S-3	1815 g at 1114 W	773 W (1.87 g/W)

Power at 1450 g is read off each maker's curve, straight-line between its two nearest bench points; 1450 g is the highest thrust every motor here reached. Different props and rigs move these curves as much as the motor does, so compare rows on a similar prop. Peak thrust of every 2207 motor: 2207 motors compared. How to read a bench table: reading motor bench tables.

Thrust-to-weight with this motor

Four EMAX E3 Series 2207 motors at 1800 g max thrust each give 7200 g: 2:1, the minimum to fly, up to 3600 g all-up; 4:1 (freestyle) up to 1800 g; 8:1 (racing) up to 900 g.

RPM & prop speed on this motor

Props in this motor's class

Prop	Size	Blades	Weight
Gemfan Long Range 5126-2 Durable 1.5mm T-Mount	5.1x2.7	2	2.6 g
HQProp DP 5.1x2.5x3	5.1x2.5	3	3.1 g
HQProp Juicy J40	5.1x4.0	3	3.4 g
HQProp 5.2x3.2x3	5.2x3.2	3	3.5 g
HQProp ETHIX P3.3 5.1x3.3x3	5.1x3.3	3	3.5 g

Where this data comes from

Weight, body, winding, cell rating and resistance from EMAX's own Specifications sheet (ECO-111-20250308---__08.jpg) on the maker's ECO III product page, read at full size 2026-10-20 (EMAX sells the E3 series as ECO III, the same motor): one block per winding, each 12N14P, Φ28.6*32.8mm, 4 mm bearing shaft, 20#AWG 120 mm lead, internal resistance 74 / 64 / 48 mΩ (1700/1900/2400 KV), weight 31.9 g at 1700 KV, 31.6 g at 1900 KV, 31.5 g at 2400 KV, every one printed "(W/O Silicone Wire)"; the retail listing repeats the same figures "without silicone wire". EMAX prints no weight with the cable, so weight_g keeps the maker's first-listed winding's figure, named on the page as cable excluded. No. of cells per winding as printed: 3-6S at 1700 and 1900 KV, 3-4S at 2400 KV. The drawing gives a Φ16 4-M3 bolt circle (mount_bolt_circle_mm) and an M5 prop thread; the listing's "Mounting Pattern: 19x19mm" is not a square pattern on EMAX's drawing, so mount_mm is not published.
