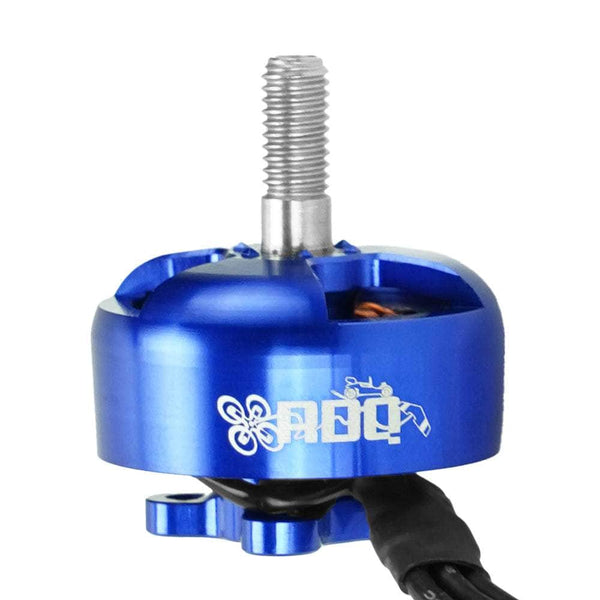

RDQ Badass 2 2207.5

Listed as: RDQ Badass 2 - 2207.5

Stator	2207.5
KV options	1400, 1900, 2400
Weight	37.0 g
Shaft	5mm
Max cells	4-6S
Configuration	12N14P
Dimensions	Ø28.5x19.7 mm
Mount	16x16mm
Max thrust	2058 g
Price (approx.)	14.29 USD

At 37 g it is 3.8 g heavier than average across the 39 2207-class motors in our database (avg 33.2 g).

Thrust data (RDQ bench test)

KV	Prop	Battery	Throttle	Current	RPM	Thrust	Efficiency
1400	GF7040 3R	6S	50	6.7 A	13114	695 g	4.32 g/W
1400	GF7040 3R	6S	60	10.6 A	14861	928 g	3.65 g/W
1400	GF7040 3R	6S	70	15.4 A	16342	1157 g	3.13 g/W
1400	GF7040 3R	6S	80	21 A	17635	1416 g	2.81 g/W
1400	GF7040 3R	6S	90	27.7 A	18829	1624 g	2.44 g/W
1400	GF7040 3R	6S	100	33.3 A	19915	1835 g	2.3 g/W
1900	GF5128 3R	6S	50	8.9 A	20996	693 g	3.24 g/W
1900	GF5128 3R	6S	60	13.1 A	23700	896 g	2.85 g/W
1900	GF5128 3R	6S	70	18.5 A	25620	1112 g	2.5 g/W
1900	GF5128 3R	6S	80	25 A	28181	1407 g	2.35 g/W
1900	GF5128 3R	6S	90	33.6 A	32311	1743 g	2.16 g/W
1900	GF5128 3R	6S	100	39.5 A	34121	1855 g	1.96 g/W
1900	GF51377 3R	6S	50	9 A	20452	664 g	3.07 g/W
1900	GF51377 3R	6S	60	13.7 A	23292	885 g	2.69 g/W
1900	GF51377 3R	6S	70	19.4 A	24577	1126 g	2.42 g/W
1900	GF51377 3R	6S	80	26.3 A	28120	1428 g	2.26 g/W
1900	GF51377 3R	6S	90	35.2 A	31484	1684 g	1.99 g/W
1900	GF51377 3R	6S	100	41.5 A	33390	1845 g	1.85 g/W
1900	GF51499 3R	6S	50	10.3 A	18118	747 g	3.02 g/W
1900	GF51499 3R	6S	60	15.7 A	21760	983 g	2.61 g/W
1900	GF51499 3R	6S	70	23 A	23813	1246 g	2.26 g/W
1900	GF51499 3R	6S	80	30.6 A	26181	1497 g	2.04 g/W
1900	GF51499 3R	6S	90	41.0 A	29083	1756 g	1.78 g/W
1900	GF51499 3R	6S	100	45.7 A	30833	1898 g	1.73 g/W
1900	GF6040 2R	6S	50	9.7 A	19593	805 g	3.46 g/W
1900	GF6040 2R	6S	60	14.6 A	22481	1068 g	3.05 g/W
1900	GF6040 2R	6S	70	21 A	25031	1342 g	2.66 g/W
1900	GF6040 2R	6S	80	28.4 A	27124	1666 g	2.44 g/W
1900	GF6040 2R	6S	90	36.2 A	30821	1894 g	2.18 g/W
1900	GF6040 2R	6S	100	43.2 A	32756	2058 g	1.98 g/W
2400	GF5128 3R	6S	50	12.6 A	23410	887 g	2.93 g/W
2400	GF5128 3R	6S	60	19.8 A	26765	1179 g	2.48 g/W
2400	GF5128 3R	6S	70	28.2 A	29449	1445 g	2.14 g/W
2400	GF5128 3R	6S	80	37.4 A	31701	1696 g	1.89 g/W
2400	GF5128 3R	6S	90	47.3 A	33613	1875 g	1.65 g/W
2400	GF5128 3R	6S	100	54.2 A	35064	1978 g	1.52 g/W
2400	GF51377 3R	6S	50	13.1 A	22974	875 g	2.78 g/W
2400	GF51377 3R	6S	60	21.1 A	26237	1202 g	2.37 g/W
2400	GF51377 3R	6S	70	29.9 A	28784	1463 g	2.04 g/W
2400	GF51377 3R	6S	80	39.1 A	30718	1685 g	1.8 g/W
2400	GF51377 3R	6S	90	49.3 A	32820	1834 g	1.55 g/W
2400	GF51377 3R	6S	100	55.9 A	34187	1956 g	1.46 g/W
2400	GF51499 3R	6S	50	15.4 A	21758	979 g	2.65 g/W
2400	GF51499 3R	6S	60	24.2 A	24750	1275 g	2.2 g/W
2400	GF51499 3R	6S	70	34 A	26937	1538 g	1.88 g/W
2400	GF51499 3R	6S	80	44.7 A	28428	1705 g	1.59 g/W
2400	GF51499 3R	6S	90	56.3 A	30340	1896 g	1.4 g/W
2400	GF51499 3R	6S	100	61.4 A	31612	1989 g	1.35 g/W

Manufacturer bench figures (RaceDayQuads bench, 6S / 24.00 V, 50-100% in tens; one prop at 1400 KV, four at 1900 KV, three at 2400 KV); real-world thrust varies with ESC, battery sag and prop condition.

Badass 2 2207.5 vs other 2207 motors on 6S

The same thrust costs different power on different motors. Each line is one maker's own bench series (6S, its own prop), drawn as grams of thrust per watt against thrust, so a higher line makes that thrust for less battery current. Throttle percent is left out on purpose: it means something different on every maker's rig.

Motor	KV	Prop	Peak thrust	At 1450 g
RDQ Badass 2 2207.5	1900	GF6040 2R	2058 g at 1037 W	563 W (2.57 g/W)
EMAX E3 Series 2207	1900	EMAX AVAN 5026-3	1800 g at 1023 W	733 W (1.98 g/W)
EMAX ECO II Series 2207	1900	DALPROP Cyclone 5046	2020 g at 1023 W	678 W (2.14 g/W)
Flash Hobby King 2207.5	1900	GF 5047 3R	1479 g at 831 W	807 W (1.8 g/W)
T-Motor F60 Pro IV V2 2207.5	1950	T-Motor T5150 Tri-Blade	1838 g at 950 W	659 W (2.2 g/W)
T-Motor Pacer V3.2 2207	1950	T-Motor T5143S-3	1815 g at 1114 W	773 W (1.87 g/W)

Power at 1450 g is read off each maker's curve, straight-line between its two nearest bench points; 1450 g is the highest thrust every motor here reached. Different props and rigs move these curves as much as the motor does, so compare rows on a similar prop. Peak thrust of every 2207 motor: 2207 motors compared. How to read a bench table: reading motor bench tables.

Thrust-to-weight with this motor

Four RDQ Badass 2 2207.5 motors at 2058 g max thrust each give 8232 g: 2:1, the minimum to fly, up to 4116 g all-up; 4:1 (freestyle) up to 2058 g; 8:1 (racing) up to 1029 g.

RPM & prop speed on this motor

Props in this motor's class

Prop	Size	Blades	Weight
Gemfan Long Range 5126-2 Durable 1.5mm T-Mount	5.1x2.7	2	2.6 g
HQProp DP 5.1x2.5x3	5.1x2.5	3	3.1 g
HQProp Juicy J37	4.9x3.7	3	3.4 g
HQProp Juicy J40	5.1x4.0	3	3.4 g
Gemfan 4935 Sbang 3-Blade	4.9x3.5	3	3.45 g

Where this data comes from

Bench table read off the listing's own description image (2207_-_info1.jpg), the same template as the other Badass 2 sizes. The spec block's own maxima land on the table: 1400 KV 33.3 A / 800 W / 1835 g is its GF7040 100% row (799.2 W), 1900 KV 45.7 A / 1096 W is the GF51499 100% row and its 2058 g Max Pull the GF6040 one, and 2400 KV 1473 W / 1989 g is the GF51499 100% row - whose current reads 61.4 A against the block's 60.4 A. Internal resistance is 108 / 84 / 56 mOhm across the three windings.
