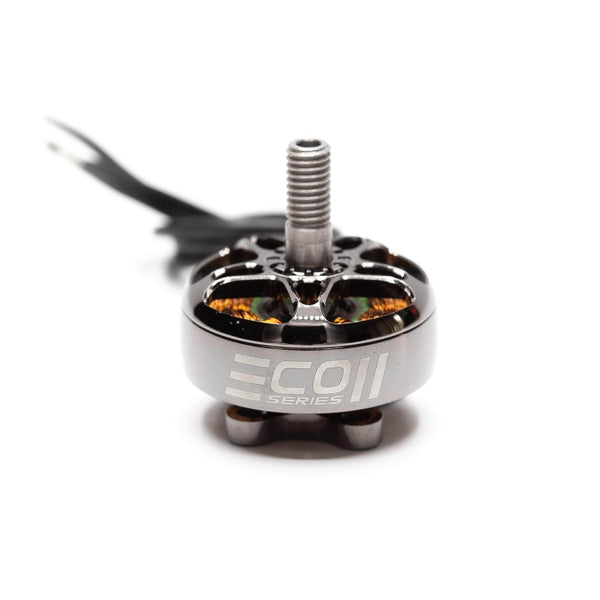

EMAX ECO II Series 2207

EMAX ECO II Series 2207
Image: racedayquads.com
Stator2207
KV options1700, 1900, 2400
Weight33.4 g (1700KV, cable excluded)
ShaftM5
Max cells3-6S (1700/1900KV) / 3-4S (2400KV)
Configuration12N14P
Dimensions27.5x33.2 mm
Mount (bolt circle, mm)Ø16 (4-M3)
Winding resistance72 (1700KV) / 59 (1900KV) / 41 (2400KV) mOhm
Max thrust2020 g
Price (approx.)19.49 USD

At 33.4 g it is right at the class average across the 39 2207-class motors in our database (avg 33.2 g).

Thrust data (EMAX bench test)

KVPropBatteryThrottleCurrentRPMThrustEfficiency
1700 DALPROP Cyclone 5040 6S — 2.9 A 15800 300 g 4.11 g/W
1700 DALPROP Cyclone 5040 6S — 5.3 A 19900 500 g 3.74 g/W
1700 DALPROP Cyclone 5040 6S — 8.4 A 23600 700 g 3.31 g/W
1700 DALPROP Cyclone 5040 6S 100% 26.2 A — 1610 g 2.44 g/W
1700 DALPROP Cyclone 5050 6S — 2.8 A 12900 300 g 4.25 g/W
1700 DALPROP Cyclone 5050 6S — 5.7 A 16800 500 g 3.48 g/W
1700 DALPROP Cyclone 5050 6S — 9.4 A 19700 700 g 2.96 g/W
1700 DALPROP Cyclone 5050 6S 100% 35.8 A — 1850 g 2.05 g/W
1700 DALPROP Cyclone 5046 6S — 2.7 A 13900 300 g 4.41 g/W
1700 DALPROP Cyclone 5046 6S — 5.5 A 17700 500 g 3.61 g/W
1700 DALPROP Cyclone 5046 6S — 8.7 A 20800 700 g 3.19 g/W
1700 DALPROP Cyclone 5046 6S 100% 34.6 A — 1830 g 2.1 g/W
1700 HQ 5.5x4x3 6S — 2.6 A 12500 300 g 4.58 g/W
1700 HQ 5.5x4x3 6S — 4.9 A 16100 500 g 4.05 g/W
1700 HQ 5.5x4x3 6S — 7.9 A 18800 700 g 3.52 g/W
1700 HQ 5.5x4x3 6S 100% 35.8 A — 1980 g 2.19 g/W
1700 HQ 5x4.3x3 6S — 2.7 A 13900 300 g 4.41 g/W
1700 HQ 5x4.3x3 6S — 5.3 A 18300 500 g 3.74 g/W
1700 HQ 5x4.3x3 6S — 8.6 A 21800 700 g 3.23 g/W
1700 HQ 5x4.3x3 6S 100% 28.8 A — 1780 g 2.45 g/W
1700 HQ 5x4.8x3 6S — 2.8 A 13800 300 g 4.25 g/W
1700 HQ 5x4.8x3 6S — 5.5 A 17900 500 g 3.61 g/W
1700 HQ 5x4.8x3 6S — 8.5 A 21100 700 g 3.27 g/W
1700 HQ 5x4.8x3 6S 100% 30.7 A — 1820 g 2.35 g/W
1700 Gemfan 5045-3 6S — 2.8 A 14800 300 g 4.25 g/W
1700 Gemfan 5045-3 6S — 5.5 A 19000 500 g 3.61 g/W
1700 Gemfan 5045-3 6S — 8.8 A 22200 700 g 3.16 g/W
1700 Gemfan 5045-3 6S 100% 29.2 A — 1720 g 2.34 g/W
1900 DALPROP Cyclone 5040 6S — 3.2 A 15900 300 g 3.72 g/W
1900 DALPROP Cyclone 5040 6S — 5.2 A 19900 500 g 3.82 g/W
1900 DALPROP Cyclone 5040 6S — 9.3 A 23600 700 g 2.99 g/W
1900 DALPROP Cyclone 5040 6S 100% 32.6 A — 1860 g 2.26 g/W
1900 DALPROP Cyclone 5050 6S — 3.0 A 13200 300 g 3.97 g/W
1900 DALPROP Cyclone 5050 6S — 5.8 A 16800 500 g 3.42 g/W
1900 DALPROP Cyclone 5050 6S — 9.6 A 19700 700 g 2.89 g/W
1900 DALPROP Cyclone 5050 6S 100% 43.8 A — 1980 g 1.79 g/W
1900 DALPROP Cyclone 5046 6S — 2.8 A 13800 300 g 4.25 g/W
1900 DALPROP Cyclone 5046 6S — 5.5 A 17500 500 g 3.61 g/W
1900 DALPROP Cyclone 5046 6S — 8.9 A 20500 700 g 3.12 g/W
1900 DALPROP Cyclone 5046 6S 100% 40.6 A — 2020 g 1.97 g/W
1900 HQ 5x4.3x3 6S — 3.0 A 14100 300 g 3.97 g/W
1900 HQ 5x4.3x3 6S — 5.4 A 17800 500 g 3.67 g/W
1900 HQ 5x4.3x3 6S — 8.8 A 21700 700 g 3.16 g/W
1900 HQ 5x4.3x3 6S 100% 36.4 A — 1960 g 2.14 g/W
1900 HQ 5x4.8x3 6S — 2.9 A 14000 300 g 4.11 g/W
1900 HQ 5x4.8x3 6S — 5.7 A 18100 500 g 3.48 g/W
1900 HQ 5x4.8x3 6S — 9.1 A 21100 700 g 3.05 g/W
1900 HQ 5x4.8x3 6S 100% 41.6 A — 1970 g 1.88 g/W
1900 Gemfan 5045-3 6S — 2.8 A 14900 300 g 4.25 g/W
1900 Gemfan 5045-3 6S — 5.8 A 19200 500 g 3.42 g/W
1900 Gemfan 5045-3 6S — 9.2 A 22800 700 g 3.02 g/W
1900 Gemfan 5045-3 6S 100% 37.2 A — 1890 g 2.02 g/W
2400 DALPROP Cyclone 5040 4S — 4.7 A 15700 300 g 3.8 g/W
2400 DALPROP Cyclone 5040 4S — 8.6 A 20100 500 g 3.46 g/W
2400 DALPROP Cyclone 5040 4S — 14.2 A 23600 700 g 2.93 g/W
2400 DALPROP Cyclone 5040 4S 100% 31.6 A — 1380 g 2.6 g/W
2400 DALPROP Cyclone 5050 4S — 4.7 A 13100 300 g 3.8 g/W
2400 DALPROP Cyclone 5050 4S — 9.8 A 16800 500 g 3.04 g/W
2400 DALPROP Cyclone 5050 4S — 15.6 A 19700 700 g 2.67 g/W
2400 DALPROP Cyclone 5050 4S 100% 41.8 A — 1610 g 2.29 g/W
2400 DALPROP Cyclone 5046 4S — 4.6 A 14000 300 g 3.88 g/W
2400 DALPROP Cyclone 5046 4S — 8.9 A 17700 500 g 3.34 g/W
2400 DALPROP Cyclone 5046 4S — 14.4 A 20900 700 g 2.89 g/W
2400 DALPROP Cyclone 5046 4S 100% 38.2 A — 1530 g 2.38 g/W
2400 HQ 5.5x4x3 4S — 4.1 A 12600 300 g 4.36 g/W
2400 HQ 5.5x4x3 4S — 8.4 A 15900 500 g 3.54 g/W
2400 HQ 5.5x4x3 4S — 13.8 A 19100 700 g 3.02 g/W
2400 HQ 5.5x4x3 4S 100% 40.8 A — 1760 g 2.57 g/W
2400 HQ 5x4.3x3 4S — 4.4 A 14200 300 g 4.06 g/W
2400 HQ 5x4.3x3 4S — 8.9 A 18100 500 g 3.34 g/W
2400 HQ 5x4.3x3 4S — 13.8 A 21200 700 g 3.02 g/W
2400 HQ 5x4.3x3 4S 100% 34.5 A — 1490 g 2.57 g/W
2400 HQ 5x4.8x3 4S — 4.6 A 13800 300 g 3.88 g/W
2400 HQ 5x4.8x3 4S — 8.9 A 17900 500 g 3.34 g/W
2400 HQ 5x4.8x3 4S — 14.1 A 21000 700 g 2.96 g/W
2400 HQ 5x4.8x3 4S 100% 36.8 A — 1580 g 2.56 g/W
2400 Gemfan 5045-3 4S — 4.5 A 14800 300 g 3.97 g/W
2400 Gemfan 5045-3 4S — 8.8 A 18800 500 g 3.38 g/W
2400 Gemfan 5045-3 4S — 13.8 A 22100 700 g 3.02 g/W
2400 Gemfan 5045-3 4S 100% 33.9 A — 1490 g 2.62 g/W

Manufacturer bench figures (6S, DALPROP Cyclone 5046, 100% throttle, 1900KV; manufacturer bench at fixed thrust points (300/500/700 g) plus max; 2400KV tested on 4S); real-world thrust varies with ESC, battery sag and prop condition.

ECO II Series 2207 vs other 2207 motors on 6S

The same thrust costs different power on different motors. Each line is one maker's own bench series (6S, its own prop), drawn as grams of thrust per watt against thrust, so a higher line makes that thrust for less battery current. Throttle percent is left out on purpose: it means something different on every maker's rig.

012340500100015002000 thrust, g g/W
MotorKVPropPeak thrust At 1450 g
EMAX ECO II Series 2207 1900 DALPROP Cyclone 5046 2020 g at 1023 W 678 W (2.14 g/W)
EMAX E3 Series 2207 1900 EMAX AVAN 5026-3 1800 g at 1023 W 733 W (1.98 g/W)
Flash Hobby King 2207.5 1900 GF 5047 3R 1479 g at 831 W 807 W (1.8 g/W)
RDQ Badass 2 2207.5 1900 GF6040 2R 2058 g at 1037 W 563 W (2.57 g/W)
T-Motor F60 Pro IV V2 2207.5 1950 T-Motor T5150 Tri-Blade 1838 g at 950 W 659 W (2.2 g/W)
T-Motor Pacer V3.2 2207 1950 T-Motor T5143S-3 1815 g at 1114 W 773 W (1.87 g/W)

Power at 1450 g is read off each maker's curve, straight-line between its two nearest bench points; 1450 g is the highest thrust every motor here reached. Different props and rigs move these curves as much as the motor does, so compare rows on a similar prop. Peak thrust of every 2207 motor: 2207 motors compared. How to read a bench table: reading motor bench tables.

Thrust-to-weight with this motor

Four EMAX ECO II Series 2207 motors at 2020 g max thrust each give 8080 g: 2:1, the minimum to fly, up to 4040 g all-up; 4:1 (freestyle) up to 2020 g; 8:1 (racing) up to 1010 g.

RPM & prop speed on this motor

Props in this motor's class

PropSizeBladesWeight
Gemfan Long Range 5126-2 Durable 1.5mm T-Mount 5.1x2.7 2 2.6 g
HQProp DP 5.1x2.5x3 5.1x2.5 3 3.1 g
HQProp Juicy J37 4.9x3.7 3 3.4 g
HQProp Juicy J40 5.1x4.0 3 3.4 g
Gemfan 4935 Sbang 3-Blade 4.9x3.5 3 3.45 g

Where this data comes from

Weight, body, winding, cell rating and resistance from EMAX's own Specifications sheet (2207-2020-10-29-2.jpg) on the maker's product page, read at full size 2026-10-20: one block per winding, each 12N14P, Φ27.5*33.2mm, 4 mm bearing shaft, 20#AWG 120 mm lead, internal resistance 72 / 59 / 41 mΩ (1700/1900/2400 KV), weight 33.4 g at 1700 KV, 33.6 g at 1900 KV, 33.5 g at 2400 KV, every one printed "(W/O Silicone Wire)". EMAX prints no weight with the cable, so weight_g keeps the maker's first-listed sold winding's figure, named on the page as cable excluded. No. of cells per winding as printed: 3-6S at 1700 and 1900 KV, 3-4S at 2400 KV. The drawing gives a Φ16 4-M3 bolt circle (mount_bolt_circle_mm) and an M5 prop thread. The page published 33.5 g, the 2400 KV figure, until 2026-10-20.
