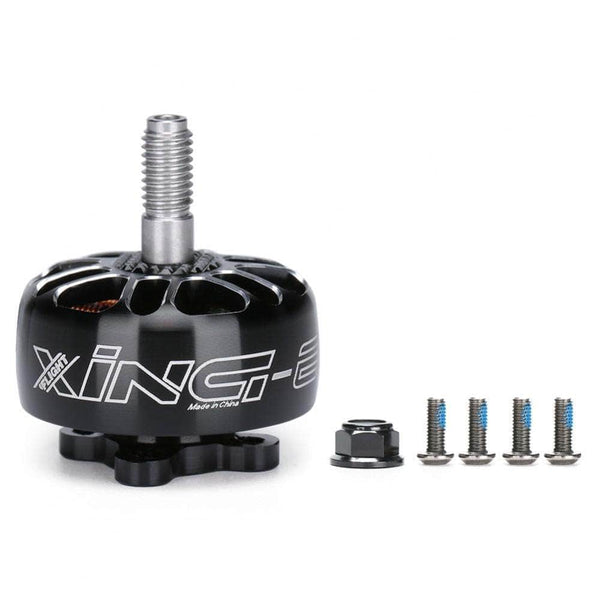

iFlight Xing-E PRO 2207

Stator	2207
KV options	1800, 2450, 2750
Weight	33.8 g
Shaft	5mm
Max cells	4-6S (1800KV) / 2-4S (2450/2750KV)
Configuration	12N14P
Dimensions	Ø28.5x19.6 mm
Mount	16x16mm (M3)
Winding resistance	81.5 (1800KV) / 46.8 (2450KV) / 41 (2750KV) mOhm
Max thrust	1899 g
Price (approx.)	20.49 USD

At 33.8 g it is right at the class average across the 39 2207-class motors in our database (avg 33.2 g).

Thrust data (iFlight bench test)

KV	Prop	Battery	Throttle	Current	RPM	Thrust	Efficiency
1800	5050	6S	50	6.53 A	—	617 g	3.937 g/W
1800	5050	6S	60	10.2 A	—	797 g	3.256 g/W
1800	5050	6S	70	14.81 A	—	1094 g	3.078 g/W
1800	5050	6S	80	20.62 A	—	1286 g	2.599 g/W
1800	5050	6S	90	26.62 A	—	1422 g	2.226 g/W
1800	5050	6S	100	33.28 A	—	1613 g	2.02 g/W
1800	5.1x3.1x3	6S	50	6 A	—	593 g	4.118 g/W
1800	5.1x3.1x3	6S	60	9.2 A	—	767 g	3.474 g/W
1800	5.1x3.1x3	6S	70	13.33 A	—	1069 g	3.342 g/W
1800	5.1x3.1x3	6S	80	18.55 A	—	1262 g	2.835 g/W
1800	5.1x3.1x3	6S	90	23.88 A	—	1405 g	2.452 g/W
1800	5.1x3.1x3	6S	100	29.88 A	—	1603 g	2.235 g/W
1800	5045	6S	50	5.6 A	—	602 g	4.479 g/W
1800	5045	6S	60	8.2 A	—	773 g	3.928 g/W
1800	5045	6S	70	12.27 A	—	1084 g	3.681 g/W
1800	5045	6S	80	16.55 A	—	1253 g	3.155 g/W
1800	5045	6S	90	21.42 A	—	1399 g	2.721 g/W
1800	5045	6S	100	27.48 A	—	1598 g	2.423 g/W
1800	5043	6S	50	6.2 A	—	589 g	3.958 g/W
1800	5043	6S	60	9.33 A	—	753 g	3.363 g/W
1800	5043	6S	70	13.73 A	—	1058 g	3.211 g/W
1800	5043	6S	80	18.35 A	—	1231 g	2.795 g/W
1800	5043	6S	90	23.48 A	—	1372 g	2.435 g/W
1800	5043	6S	100	29.95 A	—	1567 g	2.18 g/W
1800	6045	6S	50	7.73 A	—	801 g	4.318 g/W
1800	6045	6S	60	11.8 A	—	1005 g	3.549 g/W
1800	6045	6S	70	16.68 A	—	1256 g	3.138 g/W
1800	6045	6S	80	22.42 A	—	1495 g	2.778 g/W
1800	6045	6S	90	29.08 A	—	1685 g	2.414 g/W
1800	6045	6S	100	35.22 A	—	1899 g	2.247 g/W
2450	5050	4S	50	7.93 A	—	495 g	3.901 g/W
2450	5050	4S	60	12.33 A	—	655 g	3.32 g/W
2450	5050	4S	70	17.08 A	—	821 g	3.004 g/W
2450	5050	4S	80	24.22 A	—	1036 g	2.673 g/W
2450	5050	4S	90	31.48 A	—	1223 g	2.428 g/W
2450	5050	4S	100	39.56 A	—	1498 g	2.367 g/W
2450	5.1x3.1x3	4S	50	7.33 A	—	483 g	4.118 g/W
2450	5.1x3.1x3	4S	60	10.93 A	—	622 g	3.557 g/W
2450	5.1x3.1x3	4S	70	15.35 A	—	799 g	3.253 g/W
2450	5.1x3.1x3	4S	80	21.35 A	—	1051 g	3.077 g/W
2450	5.1x3.1x3	4S	90	27.75 A	—	1189 g	2.678 g/W
2450	5.1x3.1x3	4S	100	—	—	1391 g	2.437 g/W
2450	5045	4S	50	6.8 A	—	476 g	4.375 g/W
2450	5045	4S	60	10.27 A	—	636 g	3.87 g/W
2450	5045	4S	70	14.47 A	—	792 g	3.421 g/W
2450	5045	4S	80	19.55 A	—	1008 g	3.223 g/W
2450	5045	4S	90	25.22 A	—	1207 g	2.991 g/W
2450	5045	4S	100	32.02 A	—	1465 g	2.86 g/W
2450	5043	4S	50	7.67 A	—	457 g	3.724 g/W
2450	5043	4S	60	10.93 A	—	619 g	3.54 g/W
2450	5043	4S	70	15.28 A	—	765 g	3.129 g/W
2450	5043	4S	80	21.35 A	—	982 g	2.875 g/W
2450	5043	4S	90	27.68 A	—	1195 g	2.698 g/W
2450	5043	4S	100	35.48 A	—	1398 g	2.463 g/W
2450	6045	4S	50	9.33 A	—	648 g	4.341 g/W
2450	6045	4S	60	13.87 A	—	798 g	3.596 g/W
2450	6045	4S	70	19.42 A	—	1042 g	3.354 g/W
2450	6045	4S	80	26.08 A	—	1315 g	3.151 g/W
2450	6045	4S	90	34.15 A	—	1496 g	2.738 g/W
2450	6045	4S	100	42.63 A	—	1679 g	2.462 g/W
2750	5050	4S	50	10.6 A	—	612 g	3.608 g/W
2750	5050	4S	60	15.88 A	—	799 g	3.145 g/W
2750	5050	4S	70	22.42 A	—	998 g	2.782 g/W
2750	5050	4S	80	30.48 A	—	1195 g	2.45 g/W
2750	5050	4S	90	38.68 A	—	—	—
2750	5050	4S	100	47.77 A	—	1592 g	2.083 g/W
2750	5.1x3.1x3	4S	50	9.4 A	—	589 g	3.916 g/W
2750	5.1x3.1x3	4S	60	14.07 A	—	767 g	3.407 g/W
2750	5.1x3.1x3	4S	70	20.15 A	—	966 g	2.996 g/W
2750	5.1x3.1x3	4S	80	27.28 A	—	1118 g	2.561 g/W
2750	5.1x3.1x3	4S	90	34.68 A	—	1261 g	2.273 g/W
2750	5.1x3.1x3	4S	100	43.23 A	—	1522 g	2.2 g/W
2750	5045	4S	50	8.73 A	—	541 g	3.873 g/W
2750	5045	4S	60	12.73 A	—	765 g	3.756 g/W
2750	5045	4S	70	18.28 A	—	974 g	3.33 g/W
2750	5045	4S	80	24.75 A	—	1157 g	2.922 g/W
2750	5045	4S	90	32.02 A	—	1298 g	2.534 g/W
2750	5045	4S	100	39.97 A	—	1556 g	2.433 g/W
2750	5043	4S	50	9.6 A	—	513 g	3.34 g/W
2750	5043	4S	60	14.2 A	—	726 g	3.195 g/W
2750	5043	4S	70	20.22 A	—	936 g	2.893 g/W
2750	5043	4S	80	27.15 A	—	1131 g	2.604 g/W
2750	5043	4S	90	34.48 A	—	1261 g	2.286 g/W
2750	5043	4S	100	42.77 A	—	1525 g	2.228 g/W
2750	6045	4S	50	11.73 A	—	723 g	3.852 g/W
2750	6045	4S	60	17.35 A	—	861 g	3.102 g/W
2750	6045	4S	70	24.48 A	—	1237 g	3.158 g/W
2750	6045	4S	80	32.28 A	—	1391 g	2.693 g/W
2750	6045	4S	90	40.7 A	—	1559 g	2.394 g/W
2750	6045	4S	100	50.03 A	—	1732 g	2.164 g/W

Manufacturer bench figures (iFlight test report per winding, 6 throttle points (50-100%) on 5050, 5.1x3.1x3, 5045, 5043 and 6045 props: 1800KV at 24 V (6S), 2450KV and 2750KV at 16 V (4S)); real-world thrust varies with ESC, battery sag and prop condition.

Xing-E PRO 2207 vs other 2207 motors on 6S

The same thrust costs different power on different motors. Each line is one maker's own bench series (6S, its own prop), drawn as grams of thrust per watt against thrust, so a higher line makes that thrust for less battery current. Throttle percent is left out on purpose: it means something different on every maker's rig.

Motor	KV	Prop	Peak thrust	At 1450 g
iFlight Xing-E PRO 2207	1800	6045	1899 g at 845 W	512 W (2.83 g/W)
T-Motor VELOX V2 2207.5	1750	T-Motor T5147 Tri-Blade	1682 g at 795 W	607 W (2.39 g/W)
EMAX E3 Series 2207	1900	EMAX AVAN 5026-3	1800 g at 1023 W	733 W (1.98 g/W)
EMAX ECO II Series 2207	1900	DALPROP Cyclone 5046	2020 g at 1023 W	678 W (2.14 g/W)
Flash Hobby King 2207.5	1900	GF 5047 3R	1479 g at 831 W	807 W (1.8 g/W)
RDQ Badass 2 2207.5	1900	GF6040 2R	2058 g at 1037 W	563 W (2.57 g/W)

Power at 1450 g is read off each maker's curve, straight-line between its two nearest bench points; 1450 g is the highest thrust every motor here reached. Different props and rigs move these curves as much as the motor does, so compare rows on a similar prop. Peak thrust of every 2207 motor: 2207 motors compared. How to read a bench table: reading motor bench tables.

Thrust-to-weight with this motor

Four iFlight Xing-E PRO 2207 motors at 1899 g max thrust each give 7596 g: 2:1, the minimum to fly, up to 3798 g all-up; 4:1 (freestyle) up to 1899 g; 8:1 (racing) up to 949.5 g.

RPM & prop speed on this motor

Flies on these BNF quads

iFlight Nazgul5 V3 (freestyle)
iFlight Nazgul Evoque F5 V2 (freestyle)
iFlight Nazgul DC5 ECO (freestyle (budget))
iFlight Nazgul XL5 ECO (freestyle (budget))

Props in this motor's class

Prop	Size	Blades	Weight
Gemfan Long Range 5126-2 Durable 1.5mm T-Mount	5.1x2.7	2	2.6 g
HQProp DP 5.1x2.5x3	5.1x2.5	3	3.1 g
HQProp Juicy J37	4.9x3.7	3	3.4 g
HQProp Juicy J40	5.1x4.0	3	3.4 g
Gemfan 4935 Sbang 3-Blade	4.9x3.5	3	3.45 g

Where this data comes from

iFlight's product page carries one TEST REPORT image per winding (XING-E-Pro-2207-1800.png, -2450KV.png, -2750KV.png): a spec table, the drawing and a 30-row datasheet on 5050, 5.1x3.1x3, 5045, 5043 and 6045 props, 1800KV at 24 V (6S), 2450KV and 2750KV at 16 V (4S). They confirm all three windings, 33.8 g with wire for each, 12N14P, 16x16 M3, 81.5/46.8/41 mOhm, a 5 mm shaft protruding 13.5 mm, 160 mm 20AWG leads, N52H curved magnets and NSK 9x4x4 bearings, and each sheet's peak (35.22 A / 845.3 W, 42.63 A / 682.1 W, 50.03 A / 800.5 W) is its 6045 100% row. The Dimension line reads 28.5x33.1 mm, which is the drawing's 19.6 mm body plus the 13.5 mm shaft, so the body is published as Ø28.5x19.6. iFlight titles the motor 2-6S; it prints no cell rating per winding, and a bench voltage is not one. Three cells contradict their own row and are handled by the owner's rule (a contradicted cell stays blank): 2450KV 5.1x3.1x3 at 100% prints 36.68 A, but its 570.9 W and 2.437 g/W both give 35.68 A at 16 V, so the current is left blank; 2750KV 5050 at 90% prints 1315 g and 2.215 g/W, which disagree (618.9 W x 2.215 = 1371 g), so both are left blank; 2750KV 5045 at 90% prints 215.3 W where 16 V x 32.02 A = 512.3 W and its own 2.534 g/W agrees with 512.3, so that row stands (power is not stored). Every other row passes V x A and the efficiency identity. The retail listings' 4 mm shaft is iFlight's 5 mm. Max thrust is 1899 g, 1800KV on a 6045 at 24 V
