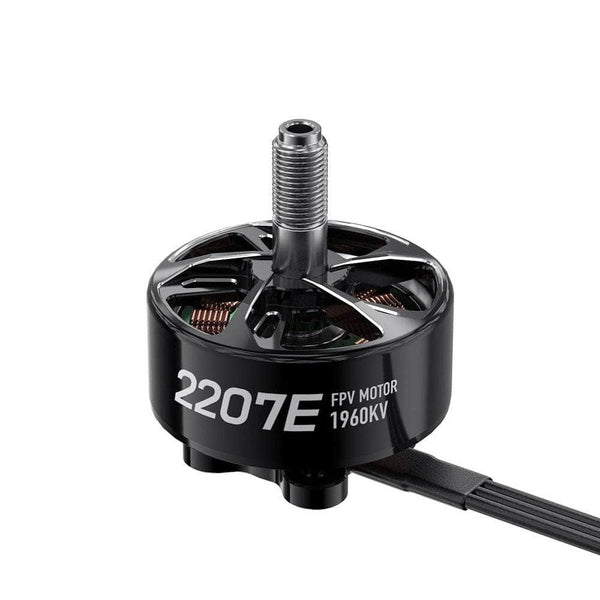

GEPRC SPEEDX2 2207E

GEPRC SPEEDX2 2207E
Image: racedayquads.com
Stator2207
KV options1960
Weight34.5 g
Shaft5mm
Max cells6S
Configuration12N14P
DimensionsØ28x19.6 mm
Mount16x16mm
Winding resistance69.85 mOhm
Max thrust1431 g
Price (approx.)17.99 USD

At 34.5 g it is 1.3 g heavier than average across the 39 2207-class motors in our database (avg 33.2 g).

Best props for the SPEEDX2 2207E

4-5 inch - 3 blade

Thrust data (GEPRC bench test)

KVPropBatteryThrottleCurrentRPMThrustEfficiency
1960 5131 6S 10 0.66 A — 42 g 2.5 g/W
1960 5131 6S 20 2.25 A — 162 g 2.86 g/W
1960 5131 6S 30 4.43 A — 291 g 2.61 g/W
1960 5131 6S 40 7.28 A — 414 g 2.26 g/W
1960 5131 6S 50 10.19 A — 544 g 2.12 g/W
1960 5131 6S 60 15 A — 686 g 1.82 g/W
1960 5131 6S 70 20.8 A — 854 g 1.64 g/W
1960 5131 6S 80 26.98 A — 1063 g 1.58 g/W
1960 5131 6S 90 33.38 A — 1256 g 1.51 g/W
1960 5131 6S 100 42.06 A — 1412 g 1.35 g/W
1960 5136 6S 10 0.66 A — 59 g 3.53 g/W
1960 5136 6S 20 2.36 A — 184 g 3.09 g/W
1960 5136 6S 30 4.93 A — 321 g 2.58 g/W
1960 5136 6S 40 6.83 A — 448 g 2.6 g/W
1960 5136 6S 50 11.71 A — 598 g 2.03 g/W
1960 5136 6S 60 16.35 A — 776 g 1.89 g/W
1960 5136 6S 70 23.53 A — 932 g 1.58 g/W
1960 5136 6S 80 28.55 A — 1112 g 1.56 g/W
1960 5136 6S 90 35.46 A — 1263 g 1.43 g/W
1960 5136 6S 100 44.57 A — 1431 g 1.3 g/W

Manufacturer bench figures (GEPRC bench, 1960 KV at 6S (25.2 V nominal), 10 throttle points (10-100%) on each of two 5in props (5131, 5136)); real-world thrust varies with ESC, battery sag and prop condition.

SPEEDX2 2207E vs other 2207 motors on 6S

The same thrust costs different power on different motors. Each line is one maker's own bench series (6S, its own prop), drawn as grams of thrust per watt against thrust, so a higher line makes that thrust for less battery current. Throttle percent is left out on purpose: it means something different on every maker's rig.

0123402505007501000125015001750 thrust, g g/W
MotorKVPropPeak thrust At 1350 g
GEPRC SPEEDX2 2207E 1960 5136 1431 g at 1123 W 1012 W (1.33 g/W)
Axisflying AF2207.5 1960 GF 51466 V2 1388 g at 1010 W 963 W (1.4 g/W)
Axisflying C227 1960 5x5 three-blade 1583 g at 1049 W 797 W (1.69 g/W)
Axisflying x SupaflyFPV x SyncFPV 2207.5 1960 BB4943.5 1819 g at 962 W 610 W (2.21 g/W)
T-Motor F60 Pro IV V2 2207.5 1950 T-Motor T5150 Tri-Blade 1838 g at 950 W 590 W (2.29 g/W)
T-Motor Pacer V3.2 2207 1950 T-Motor T5143S-3 1815 g at 1114 W 688 W (1.96 g/W)

Power at 1350 g is read off each maker's curve, straight-line between its two nearest bench points; 1350 g is the highest thrust every motor here reached. Different props and rigs move these curves as much as the motor does, so compare rows on a similar prop. Peak thrust of every 2207 motor: 2207 motors compared. How to read a bench table: reading motor bench tables.

Thrust-to-weight with this motor

Four GEPRC SPEEDX2 2207E motors at 1431 g max thrust each give 5724 g: 2:1, the minimum to fly, up to 2862 g all-up; 4:1 (freestyle) up to 1431 g; 8:1 (racing) up to 715.5 g.

RPM & prop speed on this motor

Flies on these BNF quads

Props in this motor's class

PropSizeBladesWeight
Gemfan 4022F 2-Blade 4.0x2.2 2 0.37 g
HQProp Durable T4x2.5 4.0x2.5 2 1.45 g
Gemfan Hurricane 4024 Durable 4.0x2.4 2 1.61 g
HQProp Durable 4x2.5 4.0x2.5 2 1.7 g
HQProp Durable T4x2x3 4.0x2.0 3 2.0 g

Where this data comes from

The rows are GEPRC's own bench table, published as an image in the description gallery of its product page on geprc.com - the seventh brand this dataset has read a manufacturer sheet from. The E-series template is one winding over two 5in props, ten throttle points each (10-100% in 10% steps), with columns Type / Prop (inch) / Voltages (V) / Throttle (%) / Current (A) / Thrust (G) / Power (W) / Efficiency (G/W) / Temperature (C). It publishes no per-row RPM, so that column is empty here. **The Voltages column is the nominal 6S pack voltage, 25.2 V, repeated on every row, not a measured per-row figure**: the sheet's own Power column sits progressively below 25.2 x current as throttle rises, which is the pack sagging under load. Printed Efficiency reproduces Thrust / printed Power on every row. Identity with GEPRC's own Specifications block is 1960 KV, 12N14P, a Ø28x19.6 mm body, a 5 mm shaft, 6S and 34.5 g with wire - and the block's own Max Watt (1104.7 W) and Peak Current (44.57 A) are the 5136 100% row here to the digit, which is the cross-check. GEPRC sells this motor in three windings (1500, 1960 and 2020 KV) and publishes a sheet for one of them, the 1960 KV this page carries; the table is headed 2207E-1960KV. Sheet temperatures: 120.5 C on the 5131 run, 128.6 C on the 5136 run.
